Dual pane window

Start a new Discussion

Home Owner from Wadsworth Illinois

Jun 25, 2018 4:30 pm

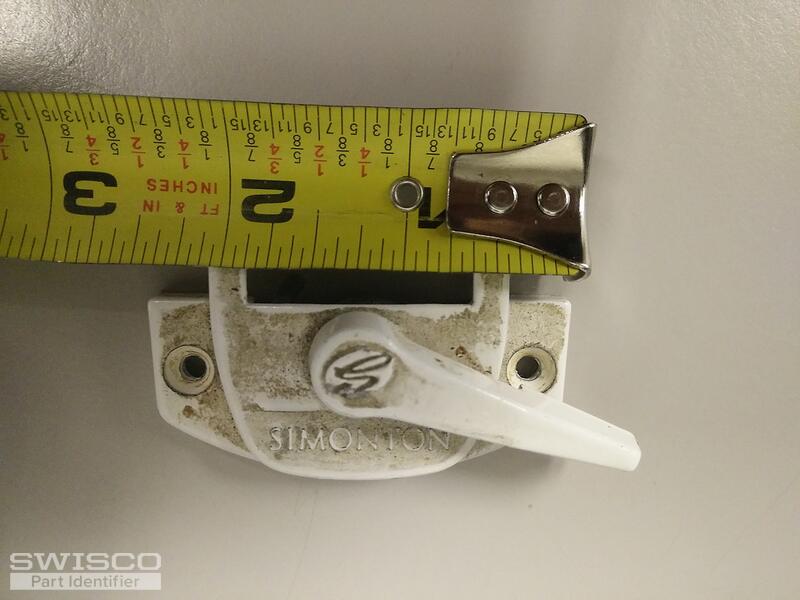

Window that I'm trying to fix. With your help I will fix it need these parts.

4 user uploaded images

4 Replies

Tom from SWISCO

Jun 29, 2018 2:21 pm

Thanks for posting! For the pivot bar, see our 26-336. I'm not sure about the lock. I'm certain we can replace it, I'm just not sure what to recommend. Can you tell me the distance between the two screw holes, center-to-center? That will help us find something that will work. Thanks!

Home Owner from Wadsworth Illinois

Jul 5, 2018 2:47 pm

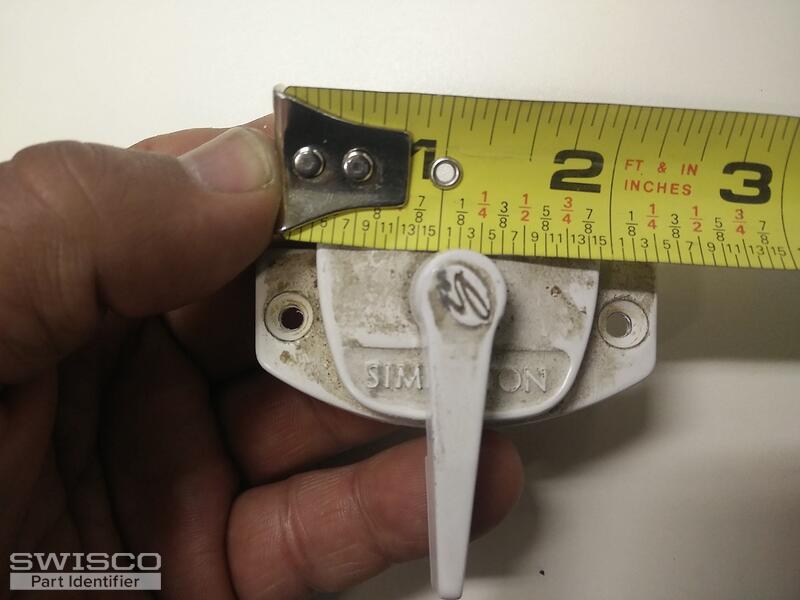

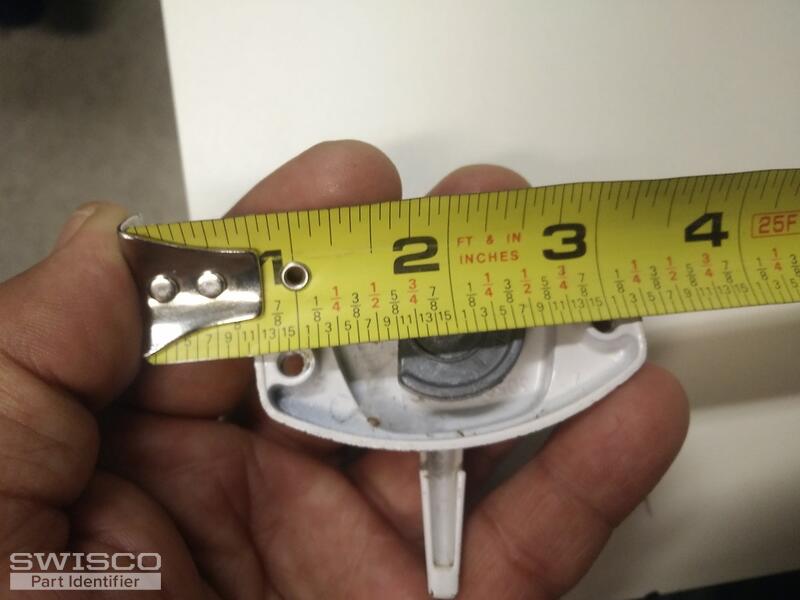

Tom just getting back to you thank you for your help it looks like between both holes is 2 1/16 thank you for your info. Please let me know what you find out so I can order these pieces

2 user uploaded images

Tom from SWISCO

Jul 9, 2018 9:06 am

Thank you! How about our 90-161? This looks similar and has the same hole spacing. It also has a hole offset of 7/16". As long as yours is the same, it should be okay!
