Ducana Awning Window Operator

A quick learner from Petrolia, Ontarto says:
April 26, 2022

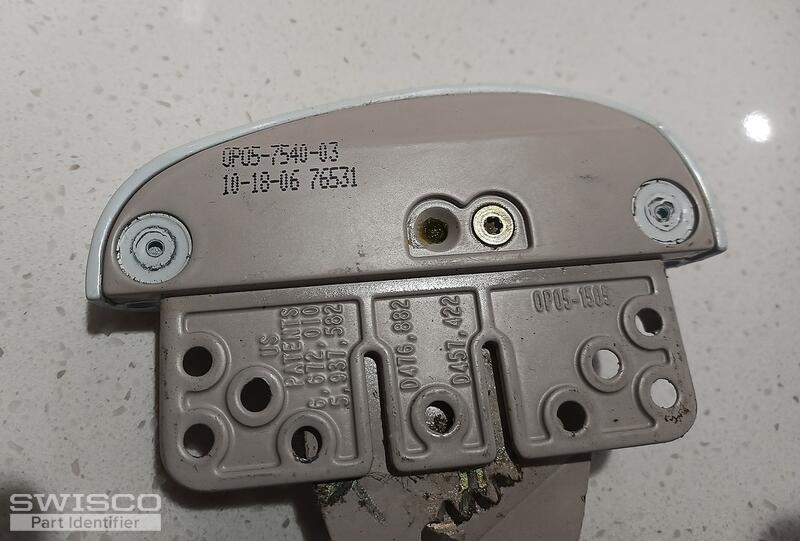

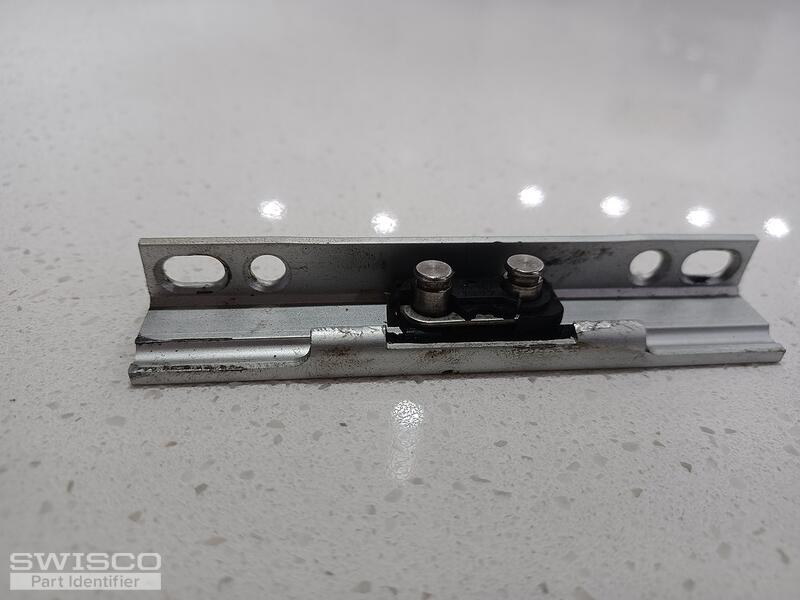

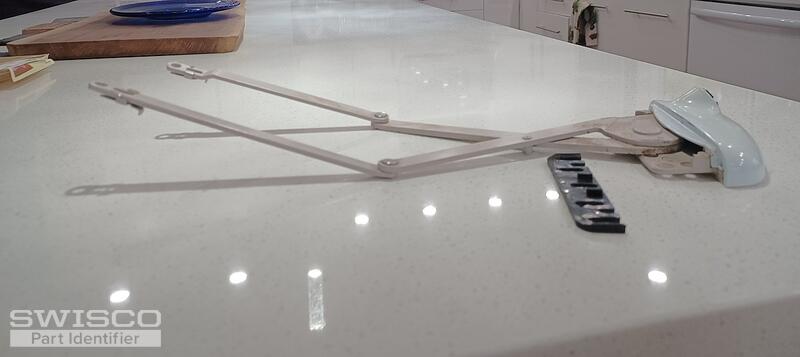

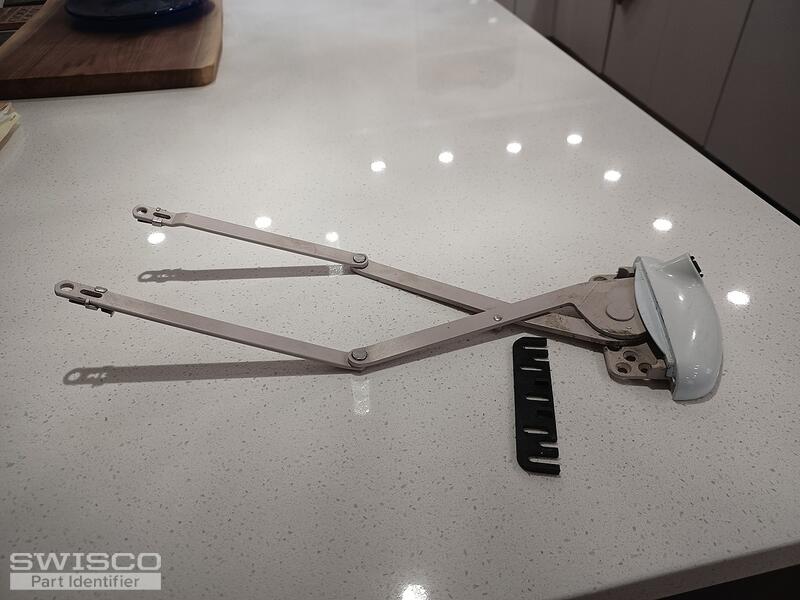

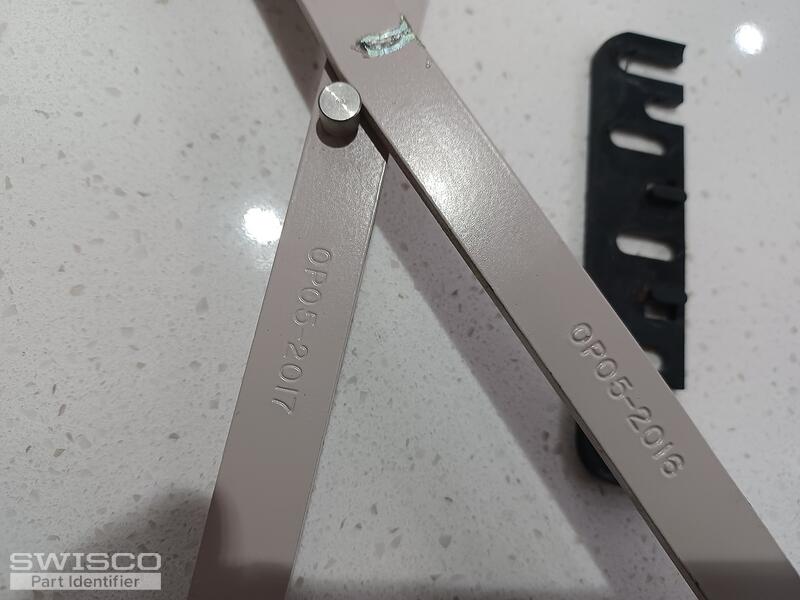

I have three Ducana awning windows that I need new crank handles (5/16" hex drive) and the bracket that attaches to the window casing with two pins on it for the operator arms to fasten to.
Thumbnail of the uploaded file named Ducana Awning Window Crank Photo 1.jpg
Thumbnail of the uploaded file named Ducana Awning Window Crank Photo 2.jpg
Thumbnail of the uploaded file named Ducana Awning Window Crank Photo 3.jpg
Thumbnail of the uploaded file named Ducana Awning Window Crank Photo 4.jpg
Thumbnail of the uploaded file named Ducana Awning Window Crank Photo 5.jpg
Profile picture of Casey
Casey from SWISCO responded:
April 28, 2022

Hello,

You could consider the Roto 39-226 handle with a 5/16" hex but there is a good chance that the internal portion of the base where your original handle installed may be stripped. If so, you would need to replace the entire assembly, which may be a good idea regardless since you are going to replace the handle and mounting bracket anyway.

If you would like to replace the entire assembly, see the new-style 39-393 Roto operator, 39-232 handle, as well as the 39-424 bracket. Thanks for posting!
Roto Vinyl Awning Window Operator
Roto Vinyl Awning Window Operator
39-393
$47.95
Roto Awning Bracket, Face Mount
Roto Awning Bracket, Face Mount
39-424
$12.97
Roto Folding Crank Handle, 11/32"
Roto Folding Crank Handle, 11/32"
39-232
$10.80
Male Roto Folding Handle
Male Roto Folding Handle
39-226
$16.70
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
