A handy person from USA says:
July 13, 2018
Could you be able to help me with the following parts for sliding doors?

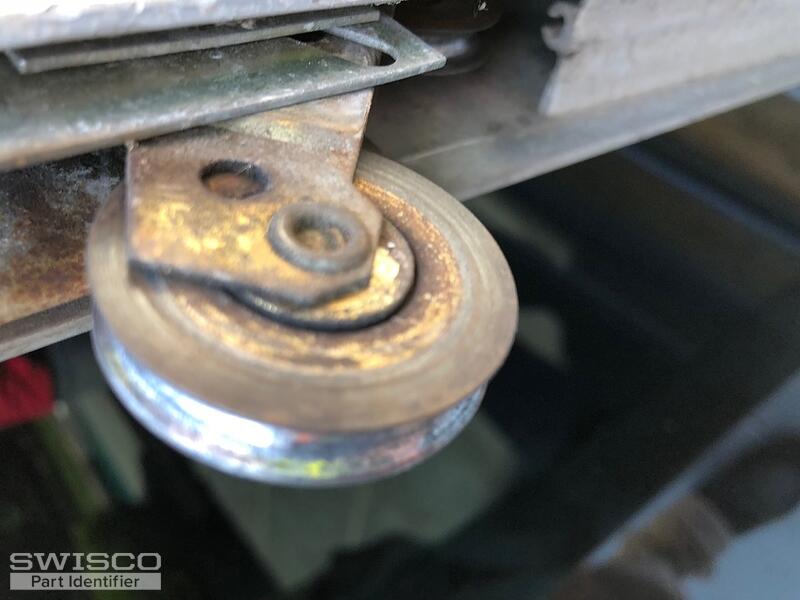

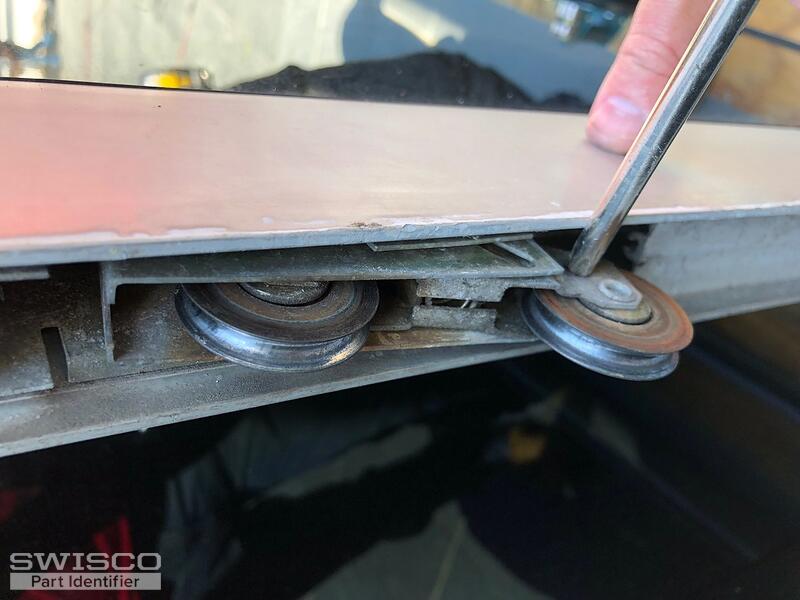

can you fine these double wheel assembly ?
they fit a 6? opening of the bottom of the door

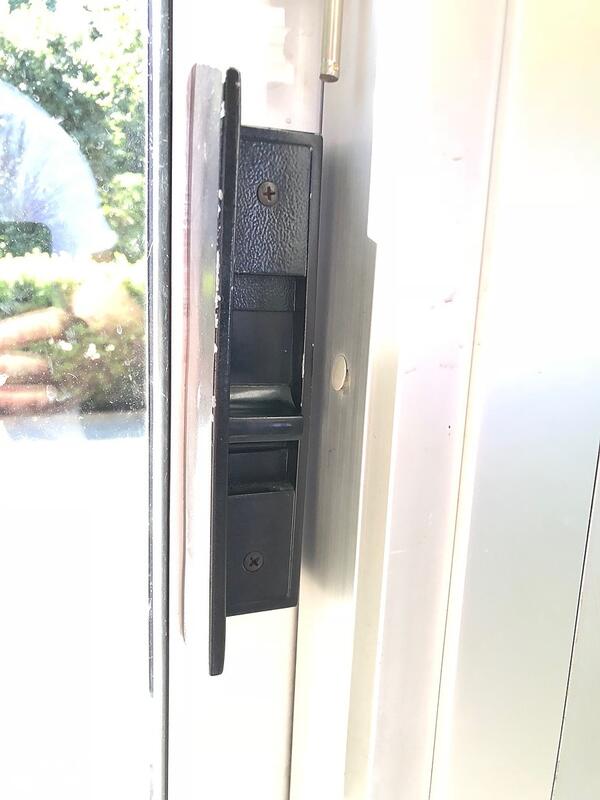

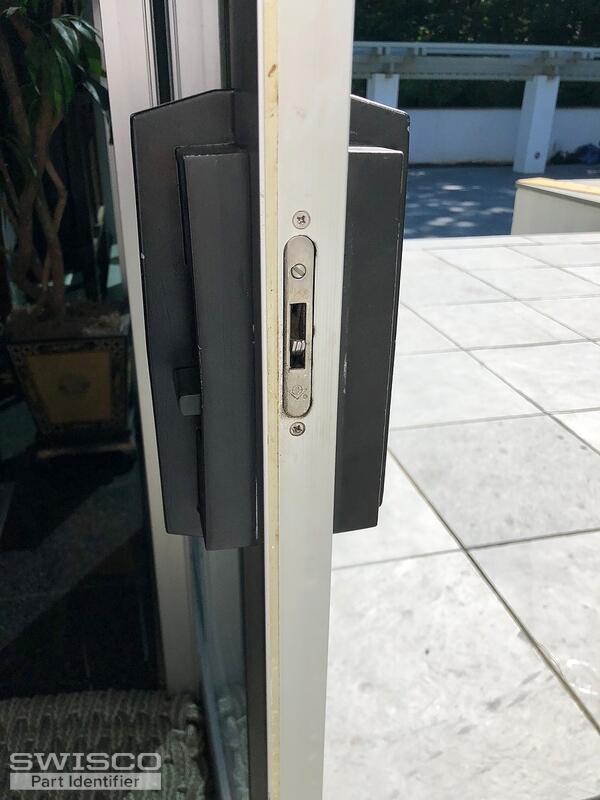

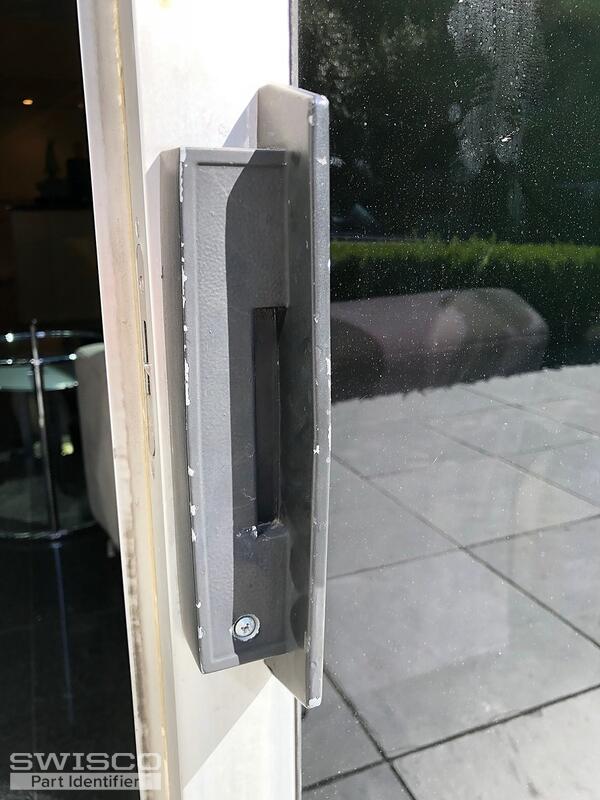

the following are for the handles

of these in black or stainless steel?
they are approx 9? H x 1 1/2? W
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
July 19, 2018

It's tough to be sure, but I think you could have an older style Arcadia patio door. The rollers could be our 81-051, but you would need to remove yours from the door to see if they do match up. I believe the mortise internal lock is our 82-218. As for the original handle, it is no longer available from what I know. I would suggest using possibly our 82-033 and drilling for the new mounting holes at 3-15/16" on center. I'm sorry we can't offer an easier solution.
Mortise Lock, Round Face, 3-11/16"
Mortise Lock, Round Face, 3-11/16"
82-218
$11.70
Arcadia Sliding Door Roller
Arcadia Sliding Door Roller
81-051
$15.97
Patio Glass Door Handle Set, 3-15/16"
Patio Glass Door Handle Set, 3-15/16"
82-033
$28.45
White Handle Set, 3-15/16"
White Handle Set, 3-15/16"
82-032
$31.82
