Eds Windows, strange channel balance

Quick Learner from Miami

Jul 9, 2012 1:58 pm

Hi,

I am trying to the top and shoe.

I believe the top is a Jones. I have attached pictures of the top and shoe

The balance is 24" long 9/16" wide, has a 2320 stamp on it.

Your help is appreciated.

Edward

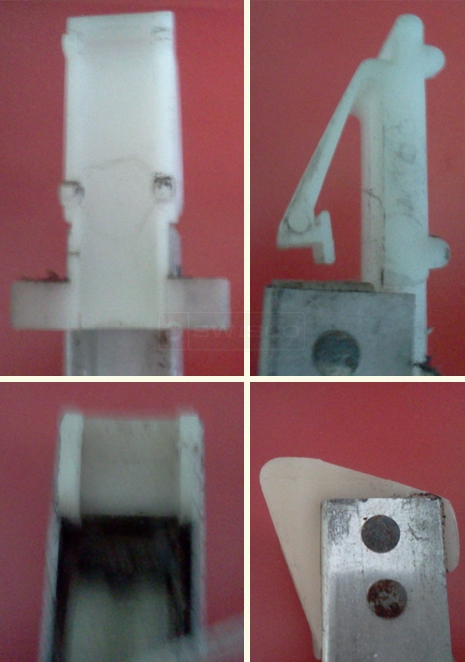

User submitted picture of channel balance and attachments.

4 Replies

Paul from SWISCO

Jul 11, 2012 2:31 pm

Thanks for posting. Before I can confirm what Series channel balance you have, I'll have to figure out what bottom shoe you have. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?

Quick Learner from South Florida

May 22, 2014 1:30 pm

This is what I have, also. The 24" channel balance is stamped 2330. The bottom shoe is 1". I need 6 of these (3 windows). How do I order them already riveted?

Thanks,
Ren

Tom from SWISCO

May 22, 2014 1:51 pm

Great, thank you for the additional information. This will have to be a custom order due to the combination of fittings used here. With that said, I'll go ahead and email you a custom order link that you can use to place an order on our website.
