Encasement crank lower

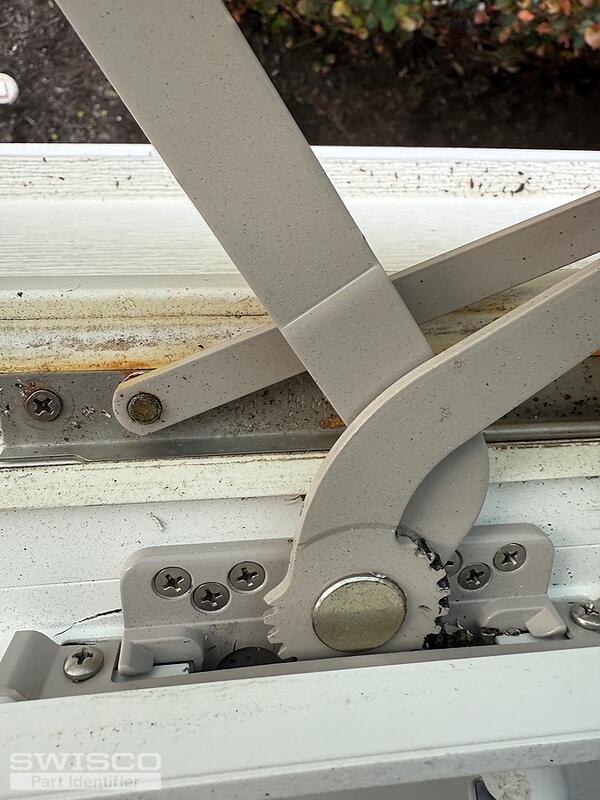

I am looking to replace three total cranks. I am unsure of the brand but I believe it to be Pella as a smaller window in the bathroom of my home does have a model and serial number on it.
this window opens right and the other two open left.
thank you!



Hello,
Your operator resembles one of the Encore-style operators shown in the video below depending on the fitting attached to the end of the longer arm. These Encore operators use the 39-375 and 39-376 handles with covers.
If you need new hinges as well, take a look at the standard 36-004-10 track, along with the "Egress" hinge 36-090-10. Since this window is on the second floor, it might use Egress hardware. Both of these hinges come in additional lengths if needed. Take a look and thanks for posting.




The length of the hinge is determined by the base that attaches to the window sill, which is 10" long for the hinges we mentioned but we offer larger options if needed. Detailed measurements can be found on our product pages as well.
