Entry Gard bracket

Search
Start a new Discussion
Quick Learner from California
Aug 5, 2024 11:50 am

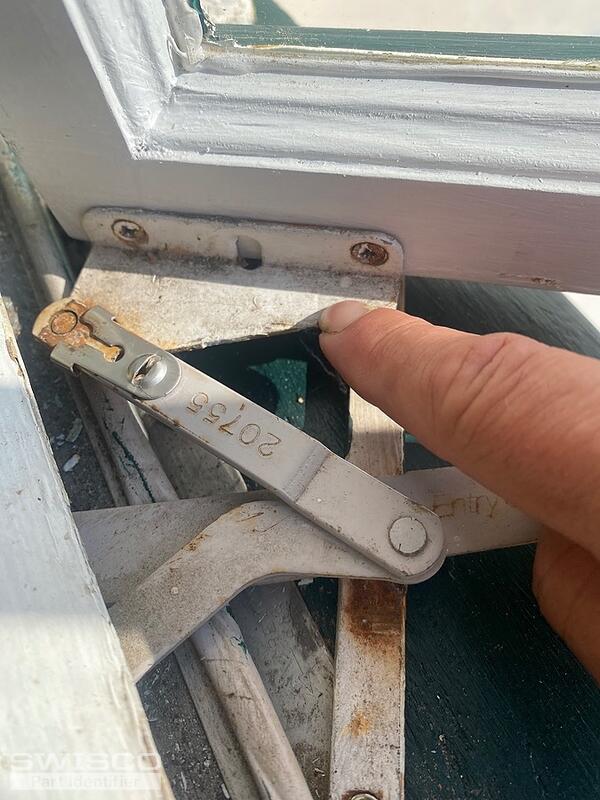

Not sure of the part number, but it's the part I'm pointing to. The detach clip no longer holds it in place. Not sure I need a new detach clip or new bracket.
1 user uploaded image
4 Replies
Casey
Casey from SWISCO
Aug 7, 2024 1:56 pm
SWISCO
Expert

Hello,

Your mounting bracket resembles the 39-546. We also offer the 39-545 opposite-handed version. These brackets are commonly used with the 39-031 and 39-032 EntryGard operators. Review the dimensions below compared to your original hardware. Thank you!

Dimensions for 39-546
Dimensions for 39-546

Dimensions for 39-032
Dimensions for 39-032

Quick Learner from California
Aug 7, 2024 2:33 pm
thx Casey. It looks like the mounting bracket is slightly larger at the tip where the arm attaches. Is this what causes it to "click" into place?
Casey
Casey from SWISCO
Aug 7, 2024 3:19 pm
SWISCO
Expert

Yes, the hole in the link arm sits over the end of the stud and is held in place by the 39-105 detach clip.
