Entry Gard crank mechanism

Question

Hello,
These are pictures of my casement window crank mechanism after removing from the window sill. Thanks for the video! I was able to remove it exactly as filmed!

I'd like to get a confirmation on which is the correct replacement part. The crank was mounted on the left side of the sill, and the window opens from right to left (hinge on the left side, locking tabs on the right).

Please let me know if you need more info or pics.

Thanks!

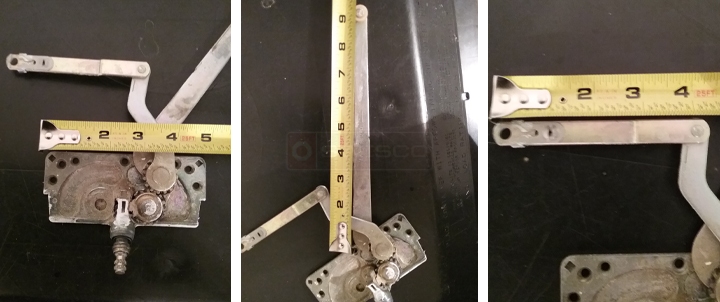

User submitted photos of a window operator.

Tom · Accepted Answer

Thanks for posting! Take a look at the list of parts I made on the right hand side of this page. I believe these will match up nicely, but I still recommend comparing our dimensions to your measurements just to be sure.
