Everything that makes balance

Quick Learner from Surf City, NC

Nov 7, 2019 5:06 pm

There is a pic with some numbers, etc.. The coils are broken on pretty much every window. The bottom piece that the window clicks into have rust and seem fragile... I am afraid to try to force the removable window out without new parts just in case. We are coastal NC if that has any bearing on what parts to choose.

2 user uploaded images

4 Replies

Bob from SWISCO

Nov 13, 2019 10:30 am

Thanks for writing in. Can we see the pivot shoe that these coil balances attach to? The identity of the pivot shoe determines the identity of the coil balances. From there, we can narrow down what you need. Many thanks.

Quick Learner from Surf City, NC

Dec 13, 2019 11:03 am

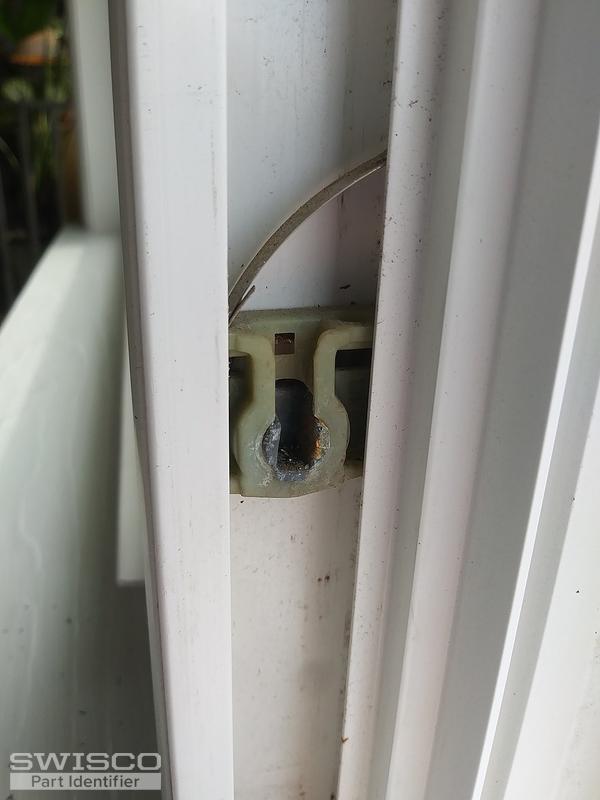

Here are pics of the bottom piece that holds window.

2 user uploaded images

Bob from SWISCO

Dec 17, 2019 12:56 pm

Thanks for getting back to me. This looks like our 15-111 Pivot Shoe. This shoe uses either our Series 160 1/2" wide coil balances, or our 3/8" wide coil balances. Compare with the width of your old coil springs to see what matches best.
