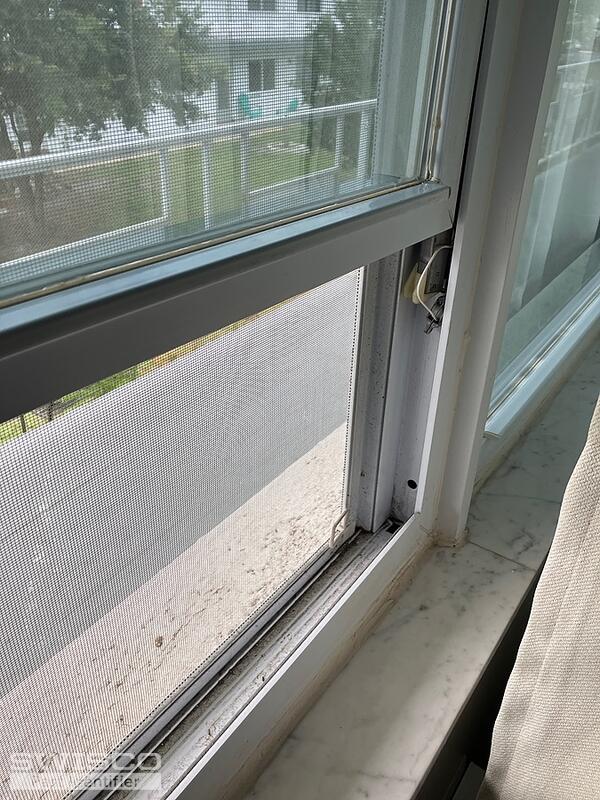

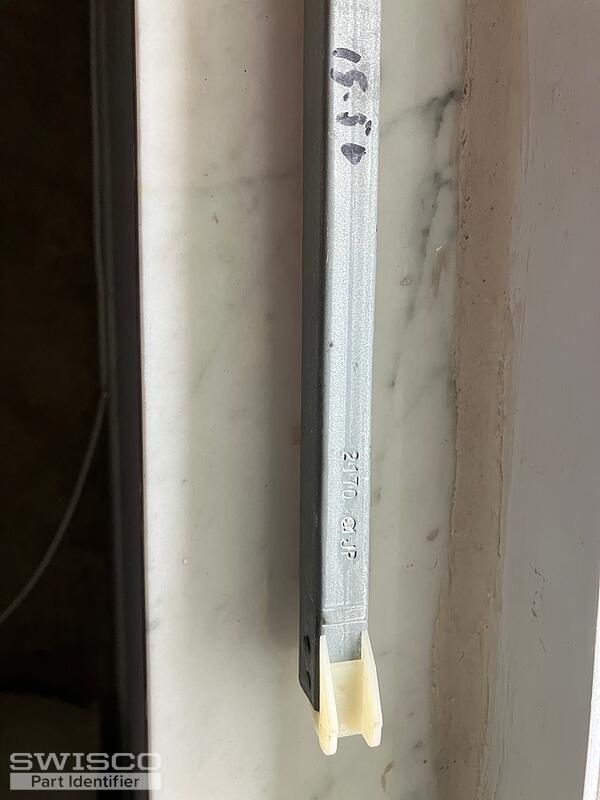

Hello..I'd need 2 balances for my non tilting windows. Not sure which ones to get. Photos attached above. Thanks

4 user uploaded images

6 Replies

Bob from SWISCO

May 31, 2026 11:24 am

Hello there. I am not certain this is an Extended-Travel balance. It looks like it may be a standard issue one to my eye. Can you show me the top nylon attachment, not just the bottom one? We need to see both for identification. Can you also confirm the metal channel length, not including the end attachments? Many thanks.

Quick Learner

May 31, 2026 3:10 pm

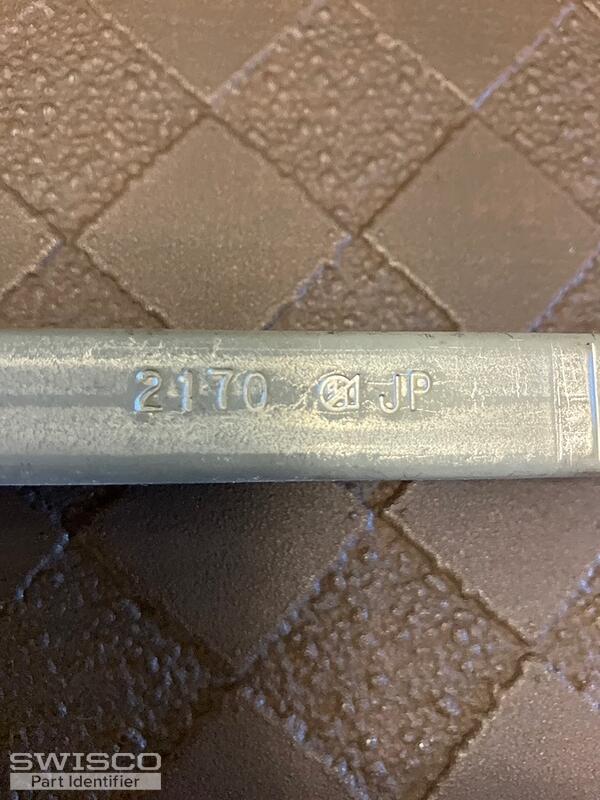

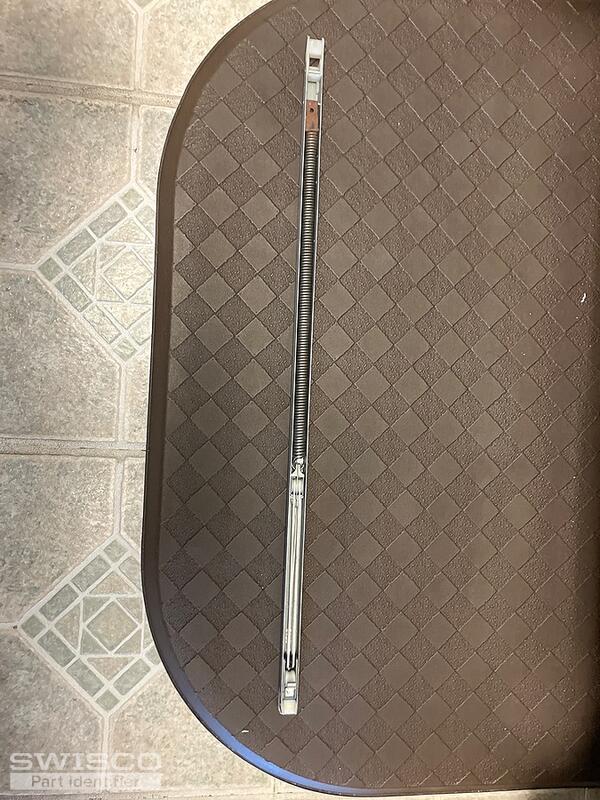

It looks like the length is 22inches ..the stamp on the balance reads 2170
i have 2 windows and it looks like 2 balances are needed for each..

1 user uploaded image

Bob from SWISCO

May 31, 2026 3:45 pm

Thanks for confirming the length and stamp. You still have not shown us the top nylon attachment. We need to see it, as well as the bottom one you have shown us, for full identification. We should be able to narrow it down from there.

Quick Learner

May 31, 2026 3:59 pm

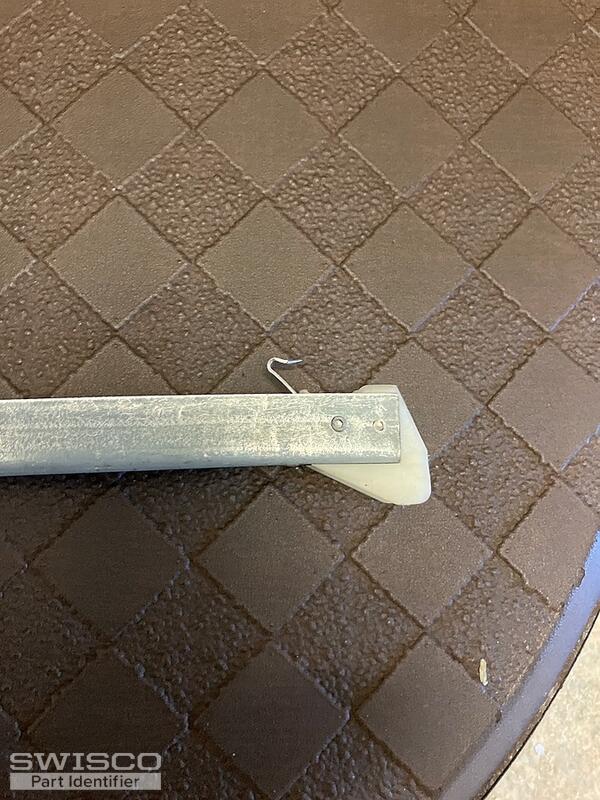

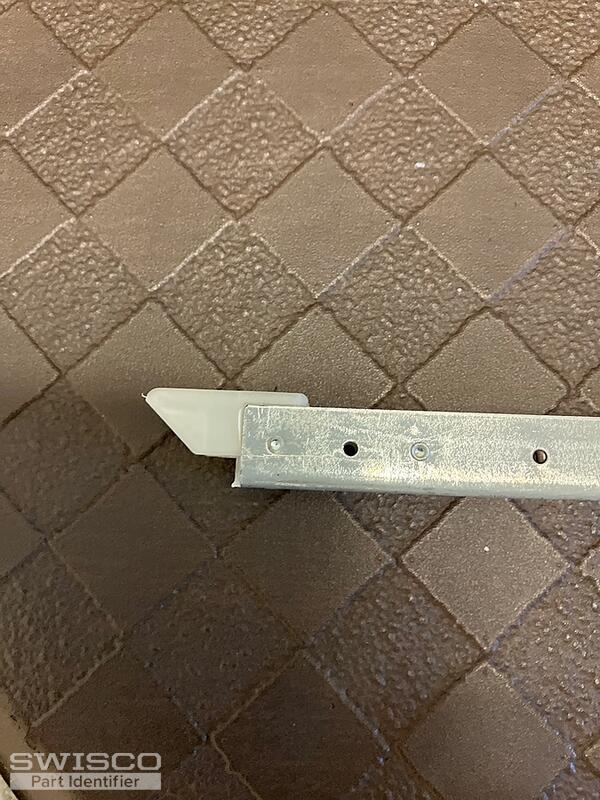

Here are the pics..

4 user uploaded images

Bob from SWISCO

May 31, 2026 4:09 pm

Thanks, that's it. This is either the S351-22 or S390-22 Channel Balance, depending on the bottom shoe depth. See below. For a stamp option choose 2170.

Comparison of the S351 and S390 balance shoes.
