Extended-Travel Channel Balance Quote

Quick Learner

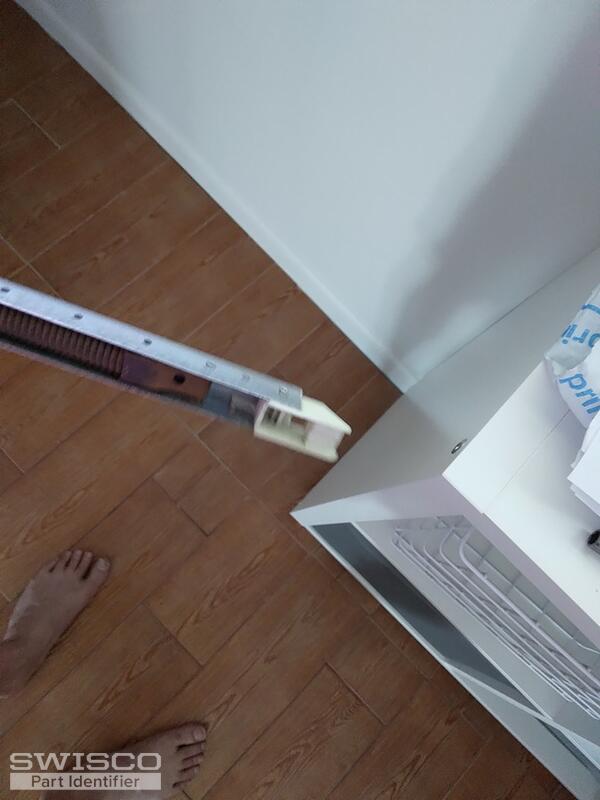

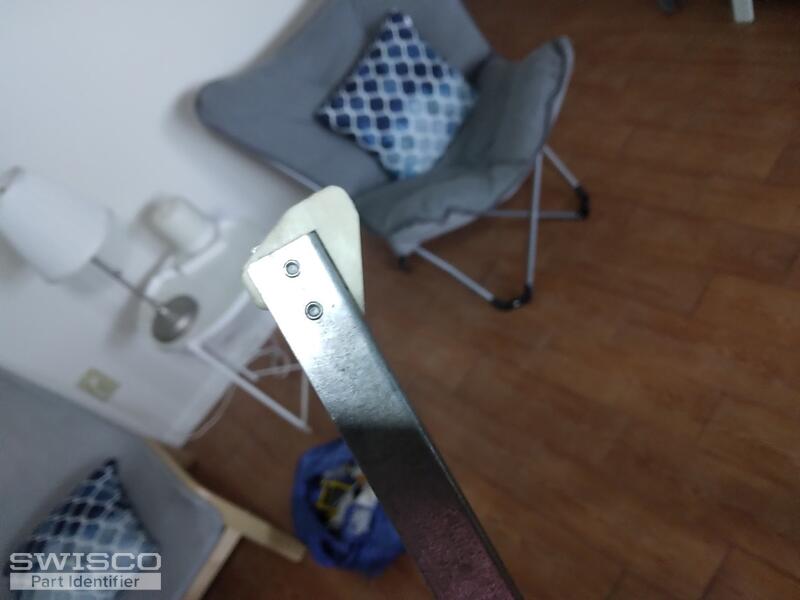

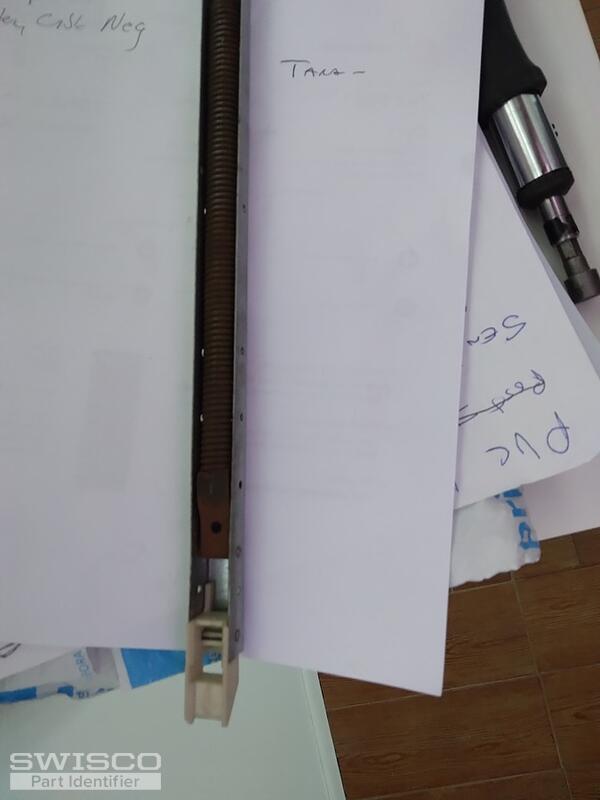

the metal length is 16 inches by 1/2 "
it has 15-10 BSI

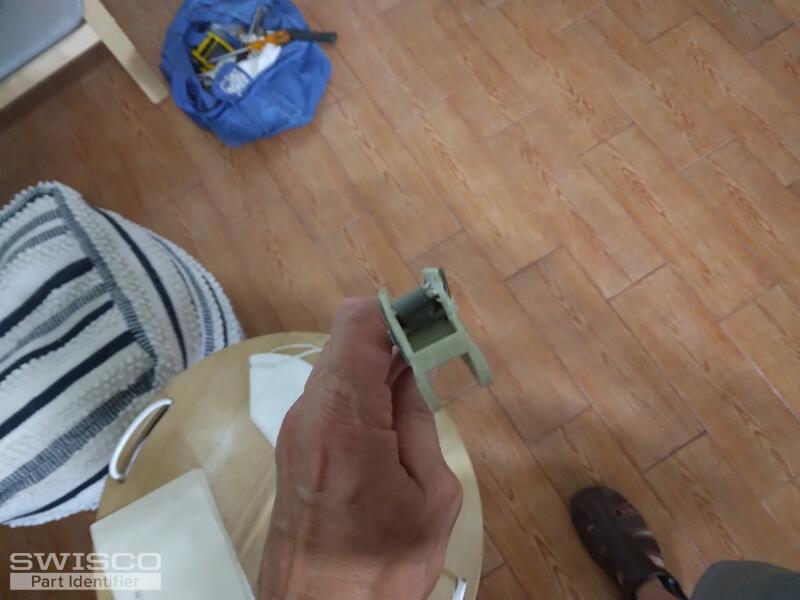

both plastic ends are 1 " long
I need 4 balances. Each one was broken
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

This actually looks like a standard channel balance, and is likely one of our stock items. I am confident we can help, but we need more information to help: first, we need to see the fitting on the other end of the balance. Second, I'd like a picture of that stamp on the metal channel just to confirm what you're working with. We will do our best to help from there.

Quick Learner

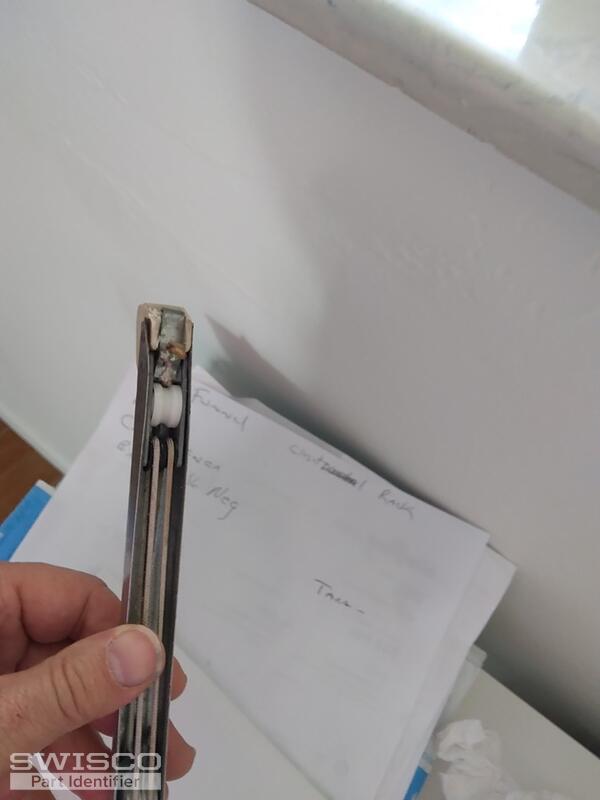

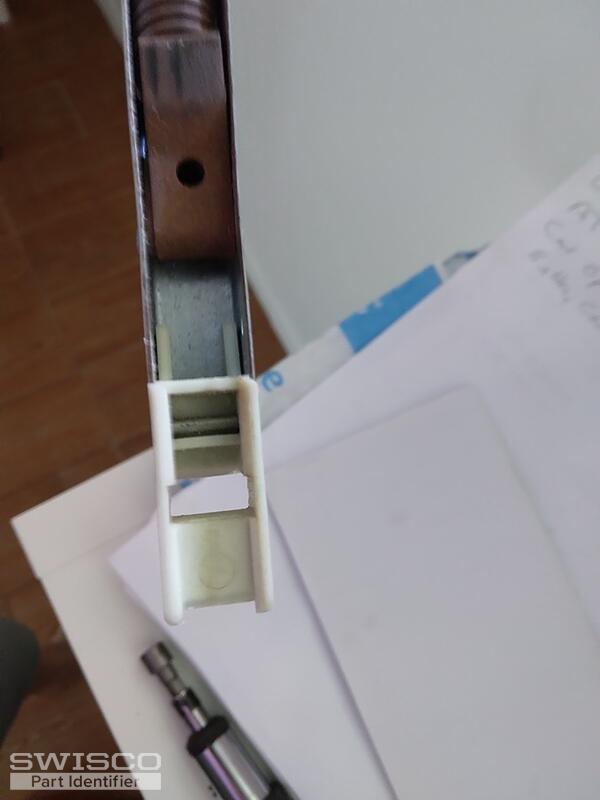

Let me know if this is ok
4 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for the photos of the fittings. If the metal channel is 16" long, you have either an S390-16 or S351-16. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. If your old stamp read 1510, choose that as your new stamp option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
