Hello - looking to purchase two NON-TILT WINDOW CHANNEL BALANCES and not sure which to purchase; Series 380 or Series 385? Also what length - 20" or 21"?
Stamp printed on it: 20 4

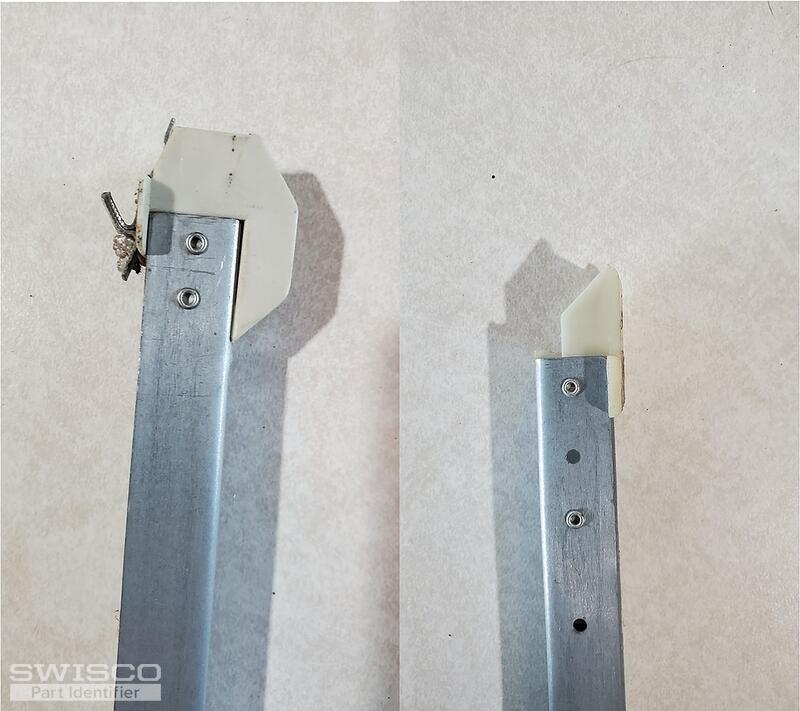

Length of the metal channel: 20-5/8" long, 5/8" deep, 9/16" wide and is "winged" or "guided"
Provided image of window manufacturer sticker - Quality Windows (could not find a date, but home was built in 2002)
Winged balance shoe appears to be 1" deep (not including wing thickness) or 1-2/32" including wing thickness (see image)
Wings width on both top fitting and shoe is 15/16" wide
Sash weighs 15.6lb
Extended-Travel Channel Balance Quote
Quick Learner
Jul 26, 2022 1:17 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Jul 29, 2022 2:15 pm
Hello,
We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. We just sent over an order link and price quote for the balances you've requested. Take a look and let us know if you need anything else. Thank you!
