Extended-Travel Channel Balance Quote

A quick learner says:

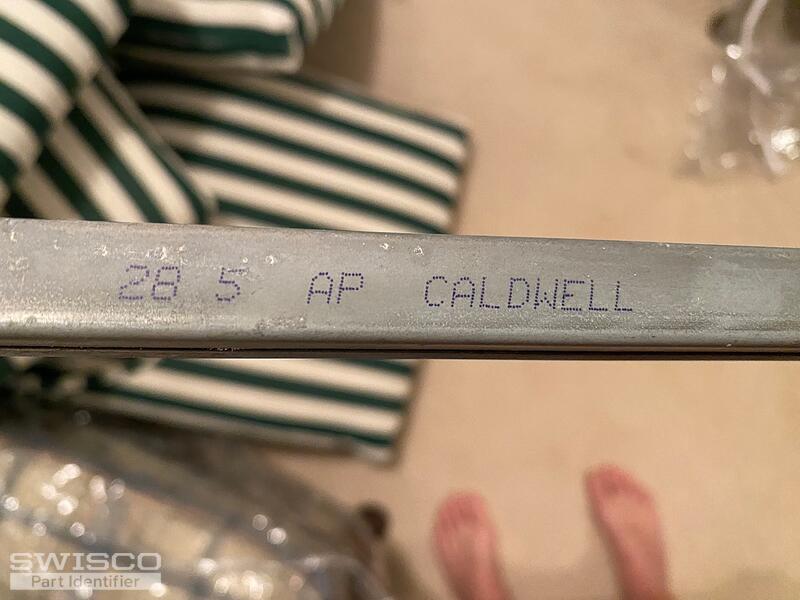

Length 29", width 1/2", believe Kinco windows is manufacturer (KC-1), this is printed on one balancer, "28 5 AP Caldwell. I will need (2) balancers for the left and right sides. Mr Glen

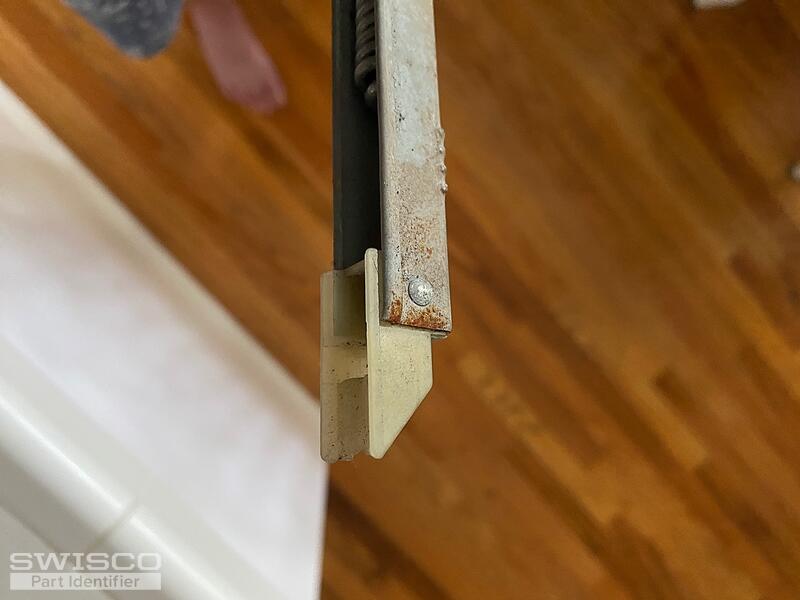

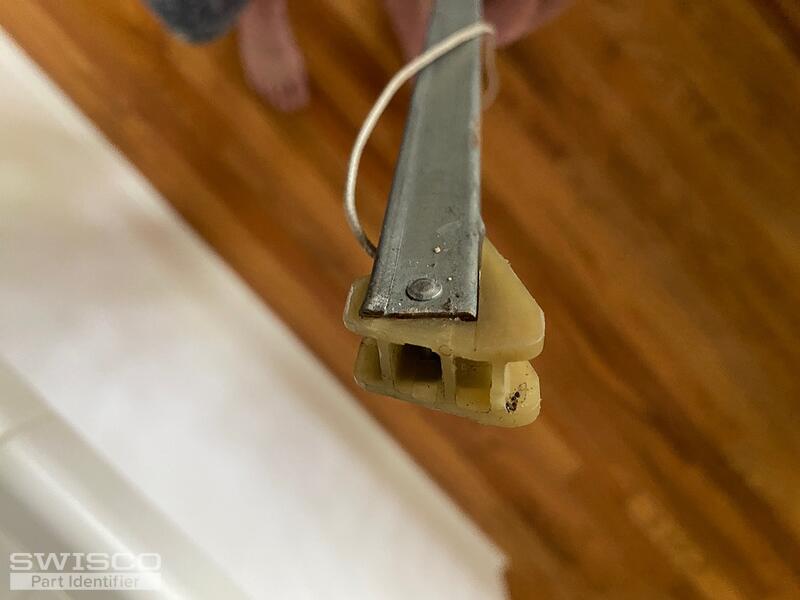

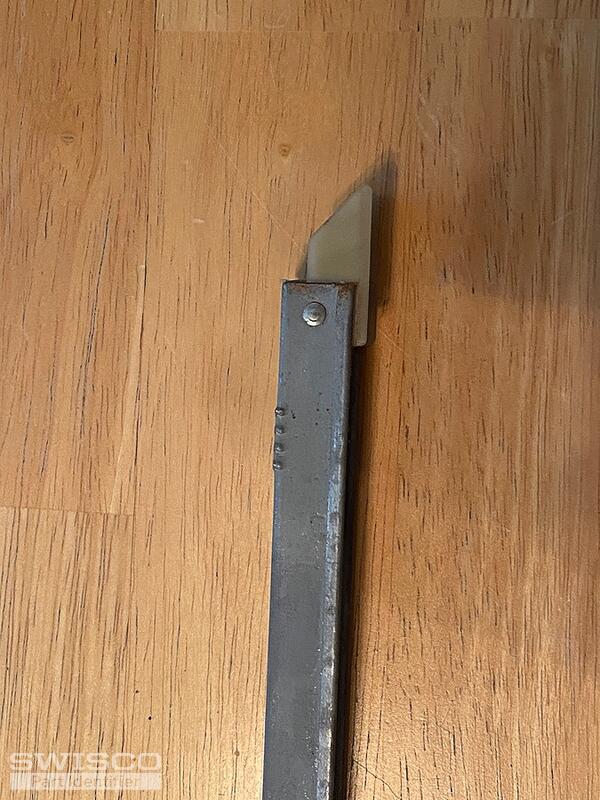

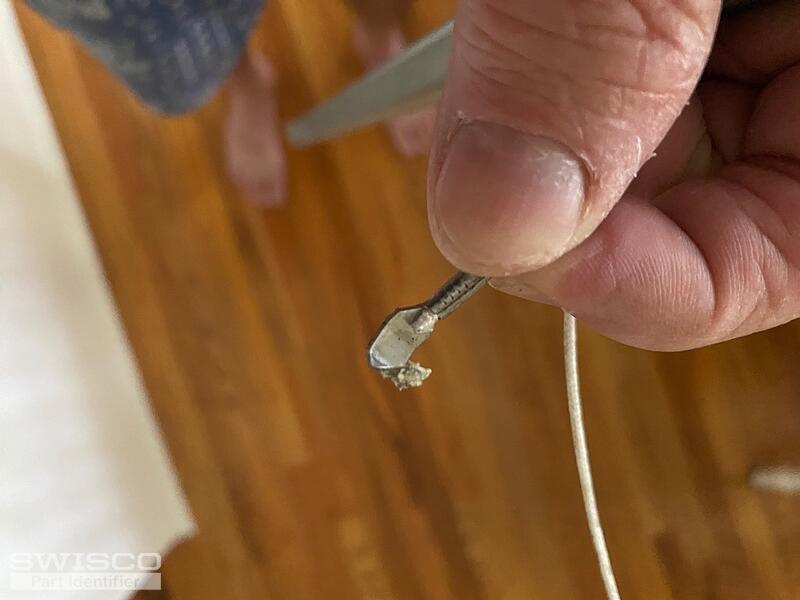

Thumbnail of the uploaded file named 1A3EF1AA-DDD0-4B4E-B545-85373B454D22.jpeg
Thumbnail of the uploaded file named E33FFD57-0C18-4E65-A761-705A0973EACE.jpeg
Thumbnail of the uploaded file named 68C58AC4-80C9-49A1-AED5-90441E124E46.jpeg
Thumbnail of the uploaded file named 7B0C35AE-16FA-4F26-89C0-3A3DB7EBF931.jpeg
Thumbnail of the uploaded file named F794DC21-0EB0-4386-9BB2-19BABAE92F9B.jpeg
A home owner from Florida says:
Reference number D282934. Forgot to mention window is non-tilt.
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

This doesn't appear to be an extended travel channel balance. Our S351-29 and S390-29 are more of a match based on what's shown in your photos. The important difference between these two similar looking parts is the depth of the bottom shoe so you'll need to measure as shown below. You will also need to select the 2850 option for your replacement balances.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

A home owner from Florida says:
Thank you, it appears my shoe is 1", so the S351-29 seems to be the correct balancer. Also, I do not know if there's a difference between a balancer for the left side or right side. There doesn't appear to be.
Profile picture of Emily
Emily from SWISCO responded:

The balance on the other side of the window ought to be the same as the one you show here.
