Extended-Travel Channel Balance Quote
Quick Learner
Jul 20, 2023 11:41 pm

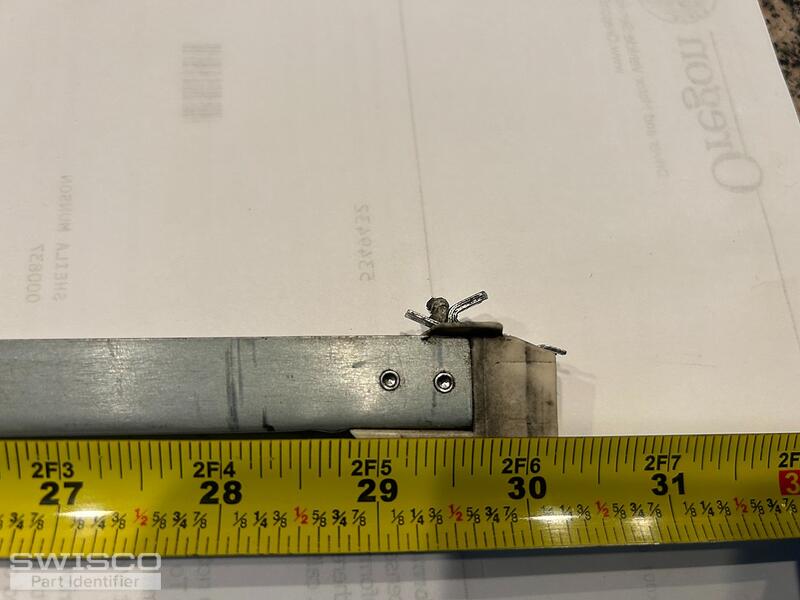

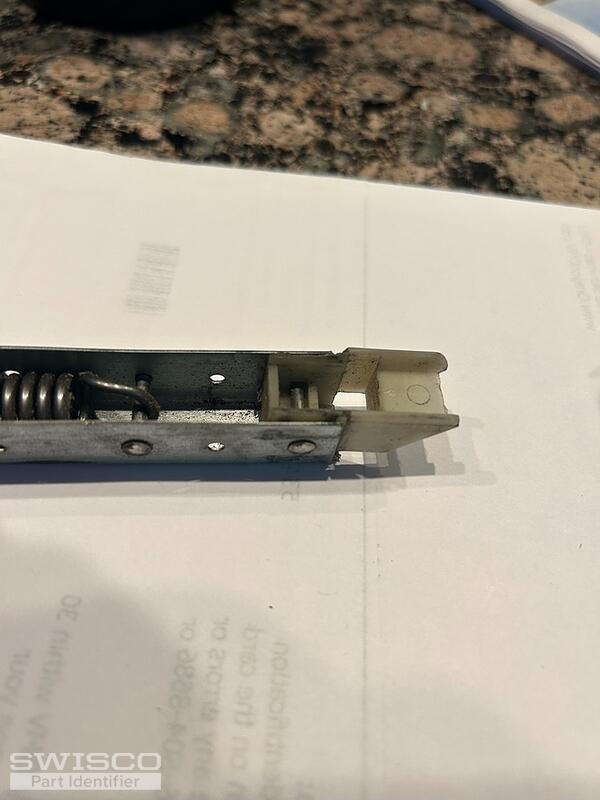

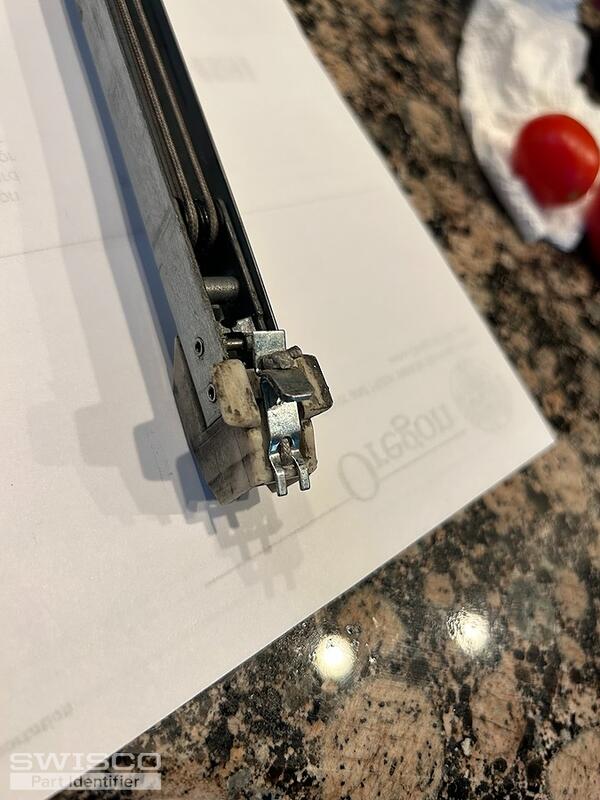

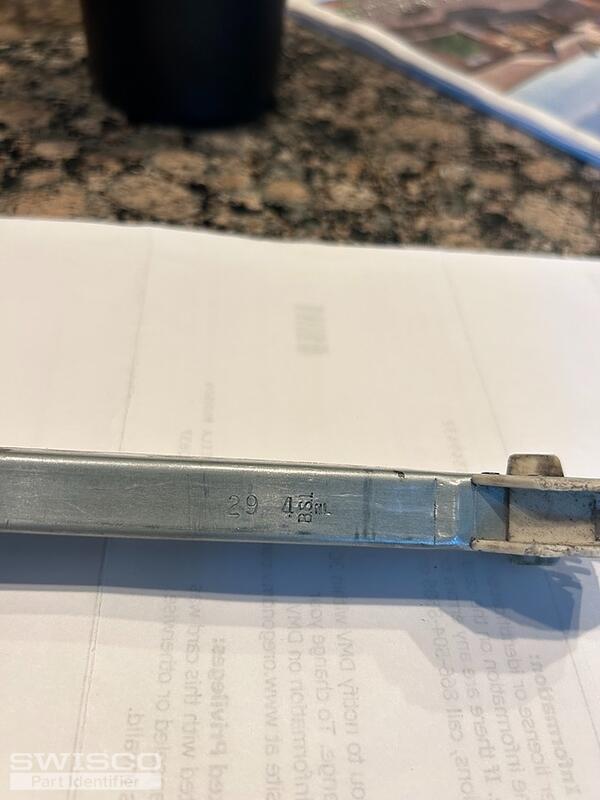

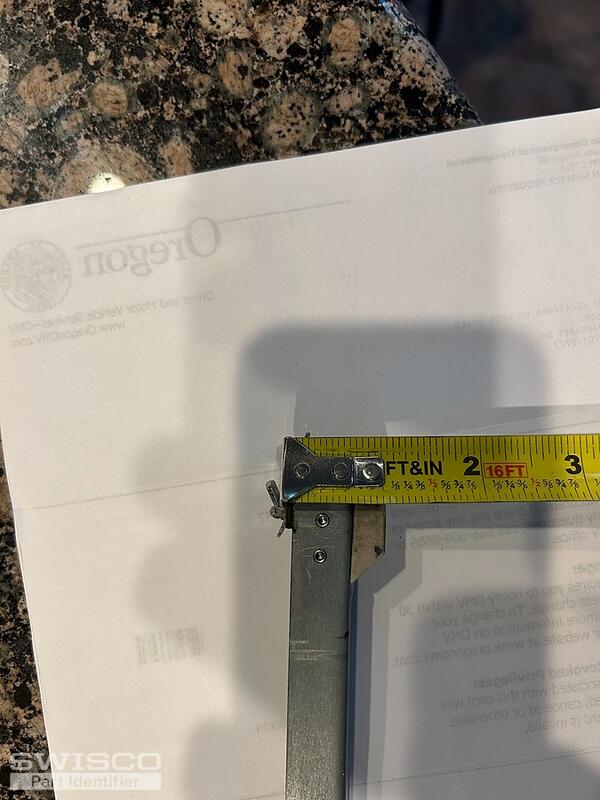

Length is 29 5/8". Stamp is 29 4. Stamp also indicates BSI. I believe your S380 is the correct model. The bottom fitting is 1" depth; ergo the S380. The top fitting appears to have had wings that are broken off. I need two balances as well as two sash cams. They are also broken. I can provide a picture of them.
5 user uploaded images
6 Replies
Jasmine from SWISCO
Jul 21, 2023 3:49 pm
Thanks for writing in! The Series 380 would not be the correct replacement for these balances as they are an extended travel channel balance. They will need to be a custom order.
I've forwarded a link with a quote for the (2) requested balances. You'll be able to use this link to review the quote and to place the order from your online cart. Be sure to check your spam/junk folder if you do not find it in your primary inbox.
In regard to the sash cams, may I see a photo of the part you are referring to? I believe you may be referring to the top sash guide. If that is the case, I'll need to see them from a front profile view to confirm the most accurate replacement.
Quick Learner
Jul 23, 2023 3:21 pm

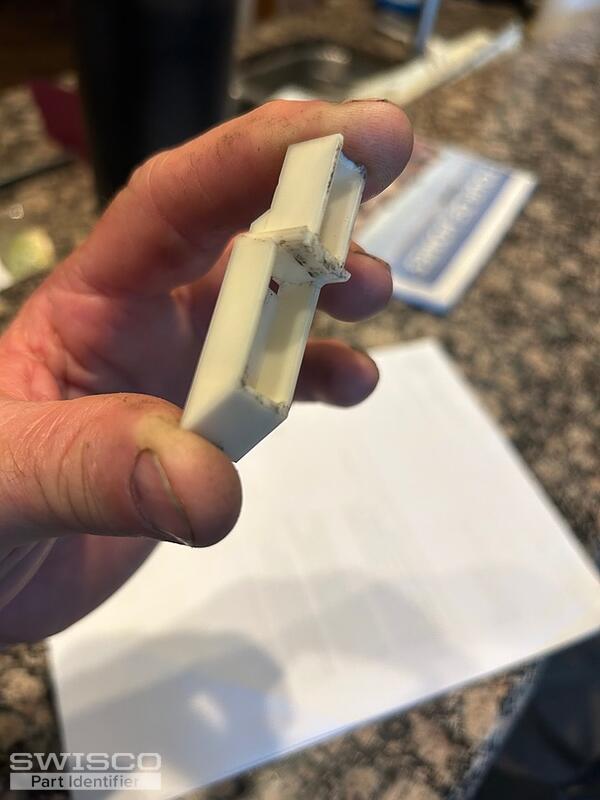

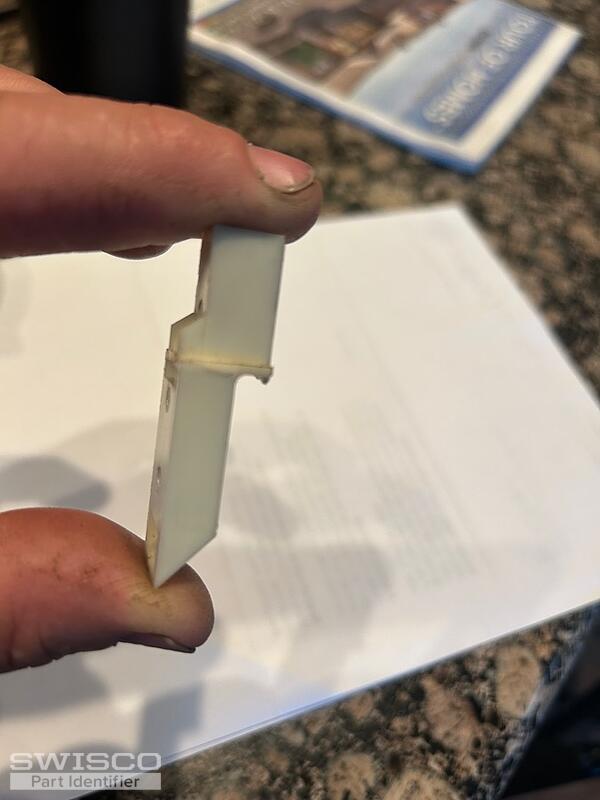

Top sash guides pictures included.
2 user uploaded images
Jasmine from SWISCO
Jul 24, 2023 9:36 am
Take a look at our 18-171 Alpine Stepped Sash Guide. Carefully review and compare the measurements to your existing top sash guide to confirm that this is the right replacement. I am confident this is the replacement you'll need.
Alternate view of 18-171
Alternate image for 18-171
Alternate view of 18-171
Quick Learner from Bend OR
Jul 31, 2023 3:05 pm
Sorry for the delay as I was out of town. I checked the measurements of the Alpine Stepped Sash Guide and I agree this is the correct part. Can you please send a new quote with two of the guides with the balances to initiate purchase?
Dave
Dave
Jasmine from SWISCO
Jul 31, 2023 3:18 pm
Hi Dave,
That's okay. I'm glad to hear that the part was a match for you. You'll need to use the link provided to your for the balances to add them to your online cart. I've resent it to you in case you cannot find it in your inbox.
You'll need the top sash guides to the website via the website, along with the balances from the provided links.
Please let me know if there is anything else I might be able to assist with.
