Extended-Travel Channel Balance Quote

Quick Learner

Sep 18, 2023 11:36 pm

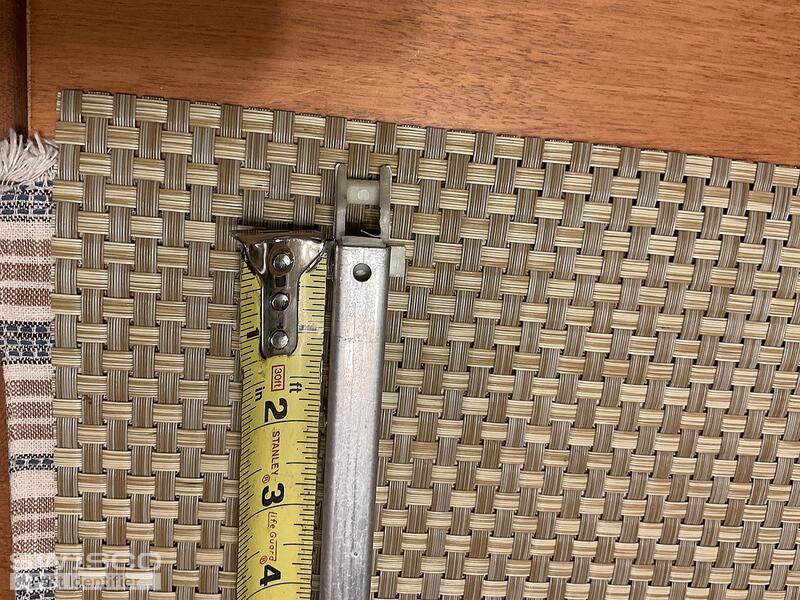

27"long
1/2" wide

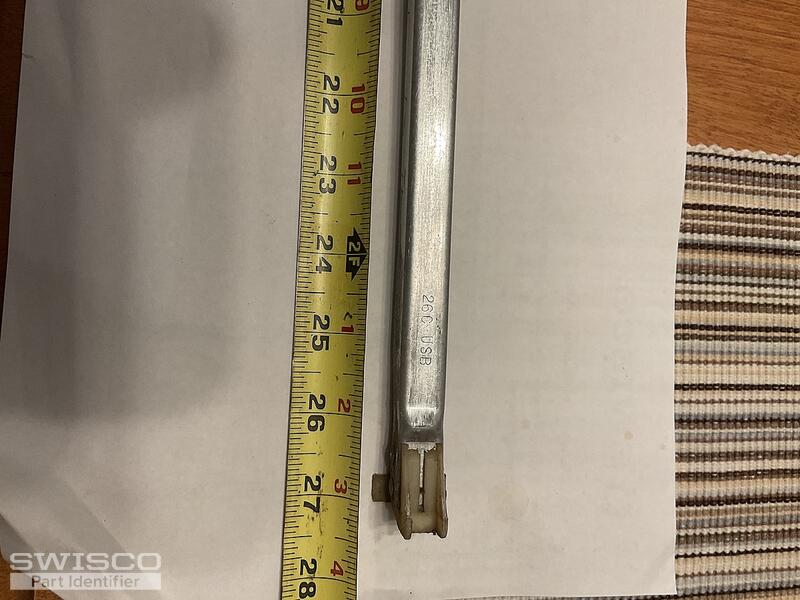

Stamp is 26C USB
I need 2 units.
I am not sure is the mfg. no stickers on the windows.
The house was built 20 years ago.

5 user uploaded images

7 Replies

Casey from SWISCO

Sep 19, 2023 3:58 pm

Hello,

With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2630 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Valencia CA 91355

Sep 20, 2023 3:17 pm

I will need the S380-27 as it is 1".
How do I get the 2630 spring strength options? Is this another part?

Quick Learner from Valencia CA 91355

Sep 20, 2023 3:23 pm

To clarify, my stamp says 26C USB. What weight do I choose? The third one down for C???

Casey from SWISCO

Sep 20, 2023 3:35 pm

2630 is one of the strength options listed on the S380-27 balance product page. Your 26C stamp would correlate to 2630 for our balances based on C being the third letter in the alphabet, which will support a window sash between 13-19 lbs.

Quick Learner from Valencia CA 91355

Oct 1, 2023 2:45 pm

I have ordered the correct balances based on your recommendations. Your Order # 2177401
I also ordered 18-008 - 5/8" Top Sash Guide. How do these attach? Do I need to remove the old rivets and replace them? Do you sell replacement rivets or bolts?

Roger
And thank you for your help.

Casey from SWISCO

Oct 3, 2023 8:18 am

You shouldn't need rivets unless you are replacing the balance fittings but we do have videos on replacing your non-tilt channel balances and top sash guides shown below. Take a look and let us know if you have any other questions.
