Extended-Travel Channel Balance Quote

Quick Learner
Jan 30, 2024 6:42 am
I need two window clips.
IMG_1840 IMG_1839
2 user uploaded images
5 Replies
Jasmine
Jasmine from SWISCO
Jan 30, 2024 2:33 pm
SWISCO
EXPERT

Thanks for reaching out to us! The part you are searching for is the take out clip used to remove the balances from the window. Your exact take out clip is no longer made but our 16-035A should work well to replace it. Carefully look over the dimensions and design to confirm that this would be a fit for you.

Additional dimensions for 16-035A
Additional dimensions for 16-035A

Dimensions for 16-035A
Dimensions for 16-035A

Quick Learner
Jan 30, 2024 6:53 pm
Hello Jasmin

Those clips looks like they will work. I'll need the two spring channels #25.5 also

George
Jasmine
Jasmine from SWISCO
Jan 31, 2024 8:31 am
SWISCO
EXPERT

Hi George,

To confirm which balance is needed, we will need to see one removed from the window with clear images of the top and bottom nylon attachments along with the metal hook at the bottom. From there we can confirm which series you have. Thank you!

Handy Person from Wolf Creek
Feb 1, 2024 9:57 am
Hello

I need replacement spring and clip for my vinyl, single hung window that does not tilt. Can I send you a picture of the old spring?

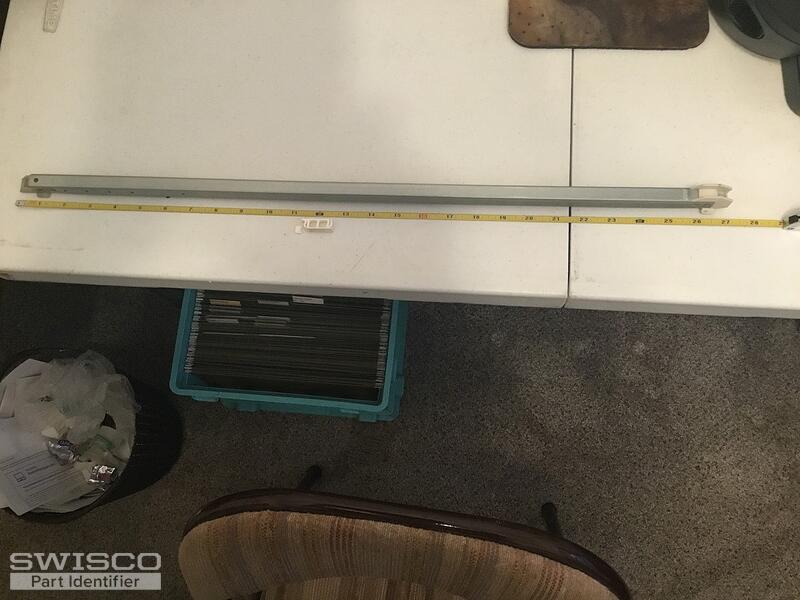

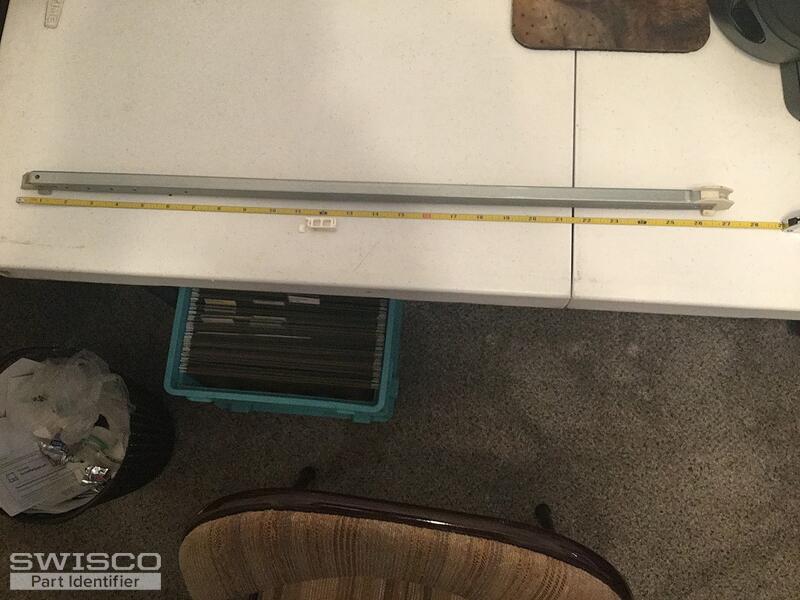

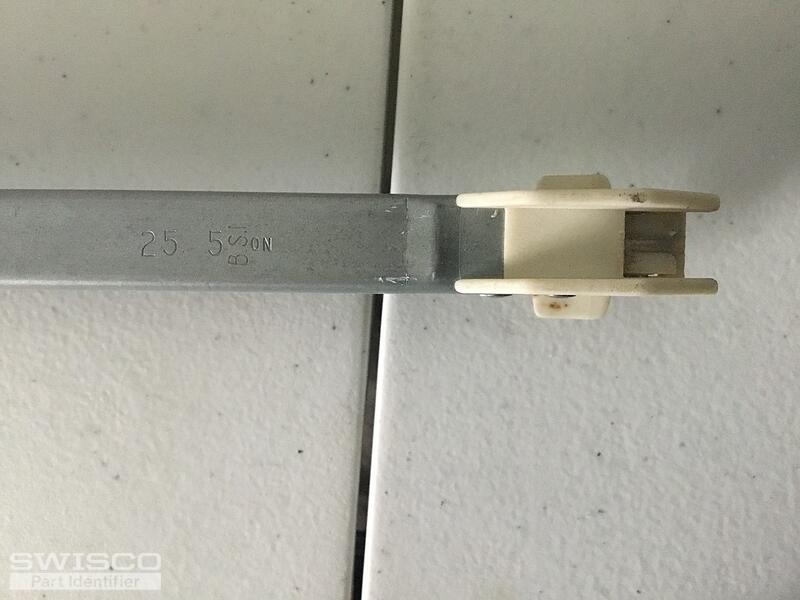

Here's a picture of my spring and retainer clip. The spring is about 27 inches long.
Do you have comparable spring and clip ?
Thanks,
George
IMG_1838 (1) IMG_1837 IMG_1838 IMG_1834
4 user uploaded images
Jasmine
Jasmine from SWISCO
Feb 1, 2024 2:43 pm
SWISCO
EXPERT

Thanks for the photos. I am confident that we can supply you with the replacement Extended Travel Channel Balances you need, but I'll need just one more piece of information.

It appears that the hook/clip is missing from the bottom shoe. I'll need to see this hook/clip to confirm the exact balance needed to repair your windows. Not only is it important for identifying your existing balance however it will be important for the installation of the balances as well.

Please let me know if you have any questions.
