Extended-Travel Channel Balance Quote

Quick Learner

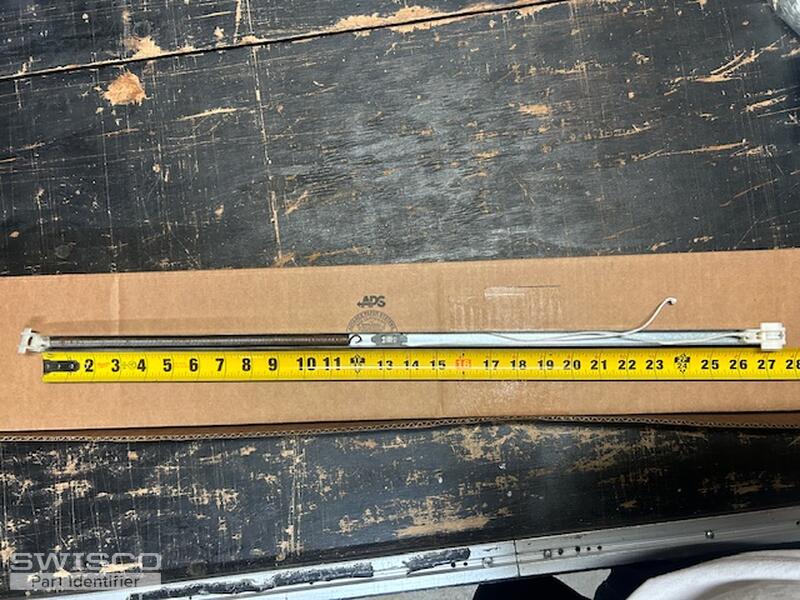

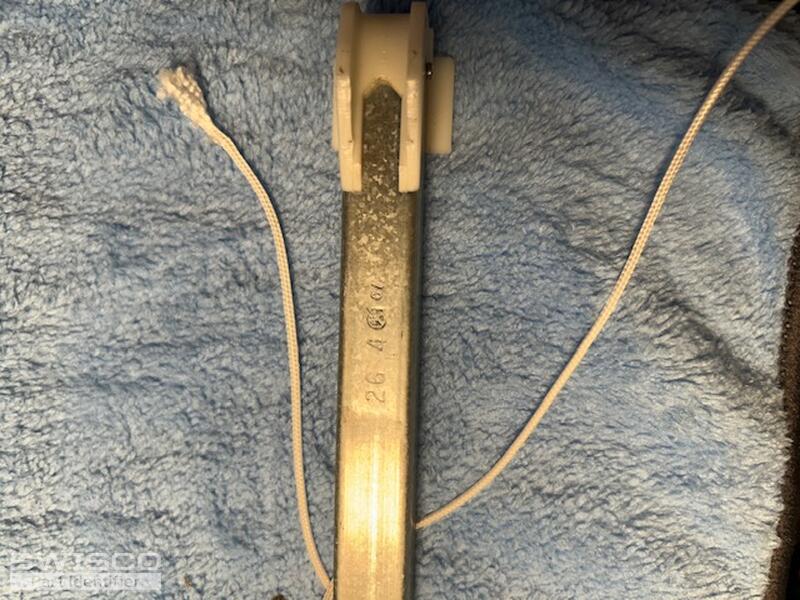

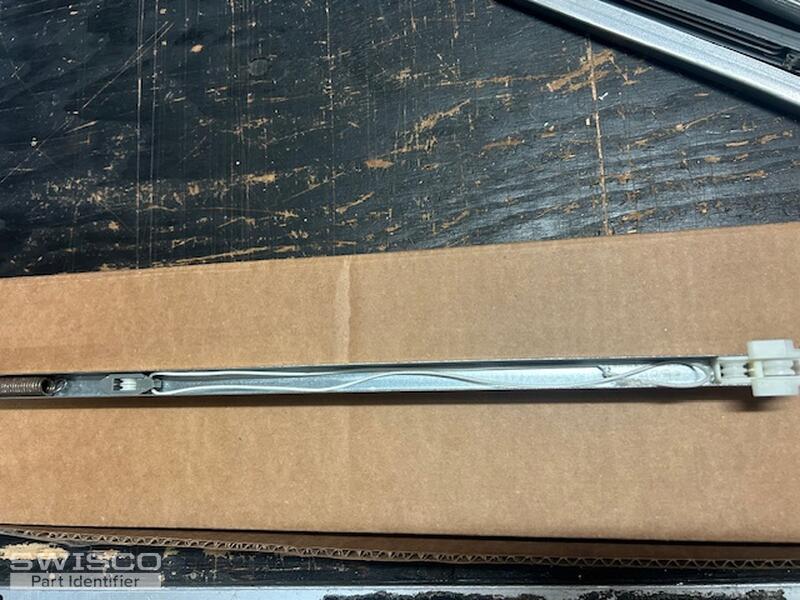

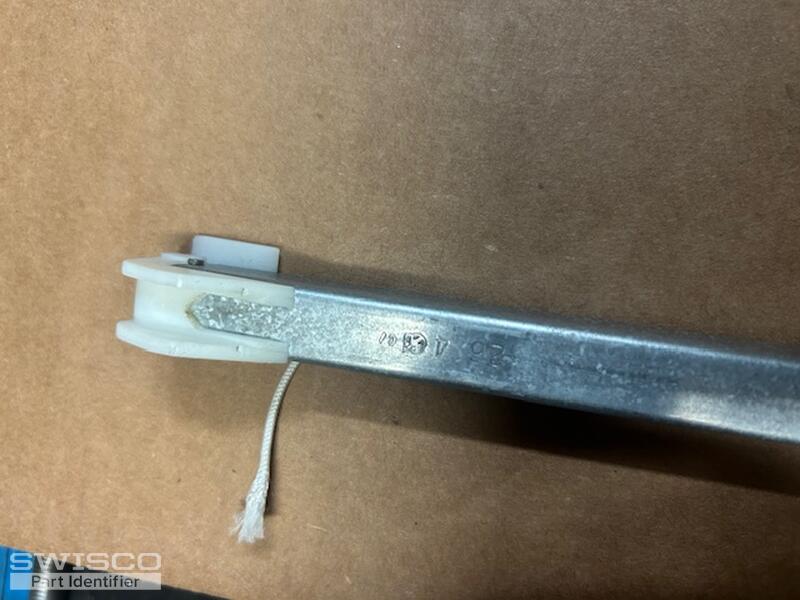

1. 27 inch metal channel 2. Stamp 26 4 3. Unknown 4. Total of (2) balances needed.
5 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Greetings!

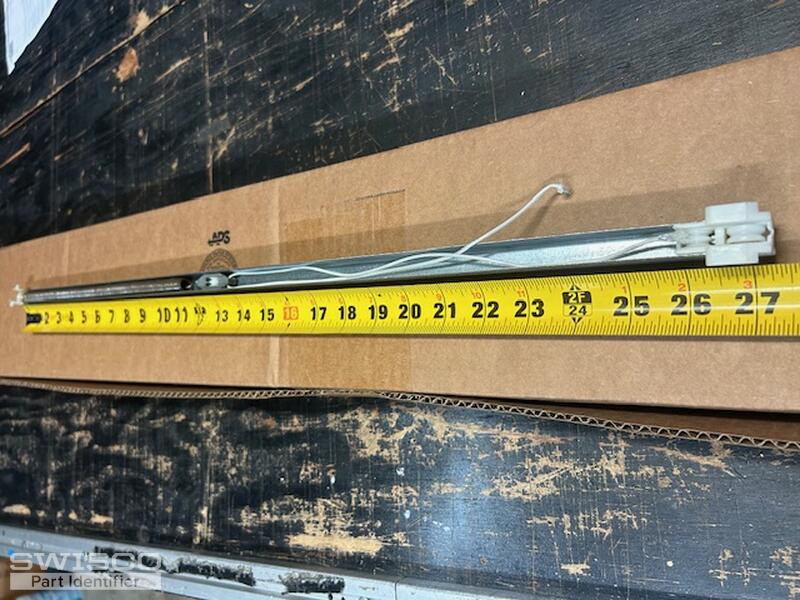

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 7/8" which is what makes it custom. For example, the metal channel should measure 26-7/8" long so you may want to double check just to be safe.

It looks like the metal clip at the end of the pulley cord snapped off so we'll need to see an intact version to move forward.

Quick Learner

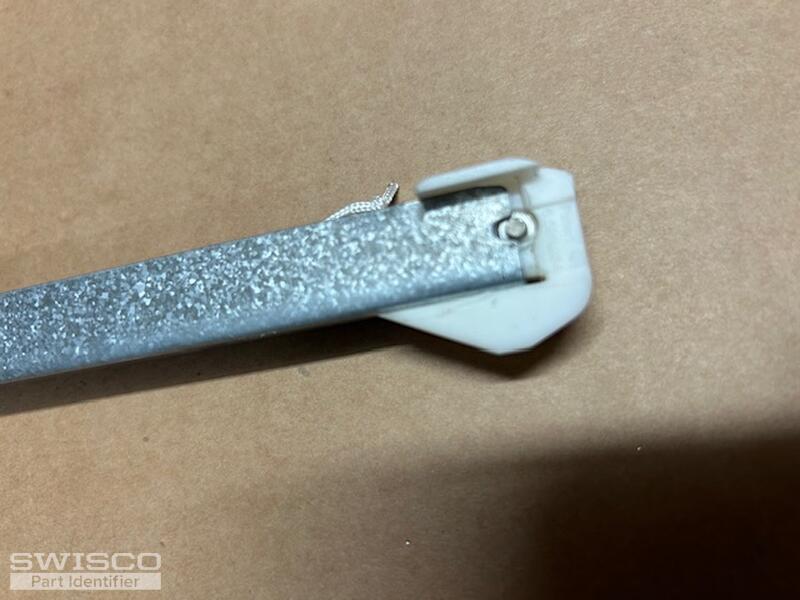

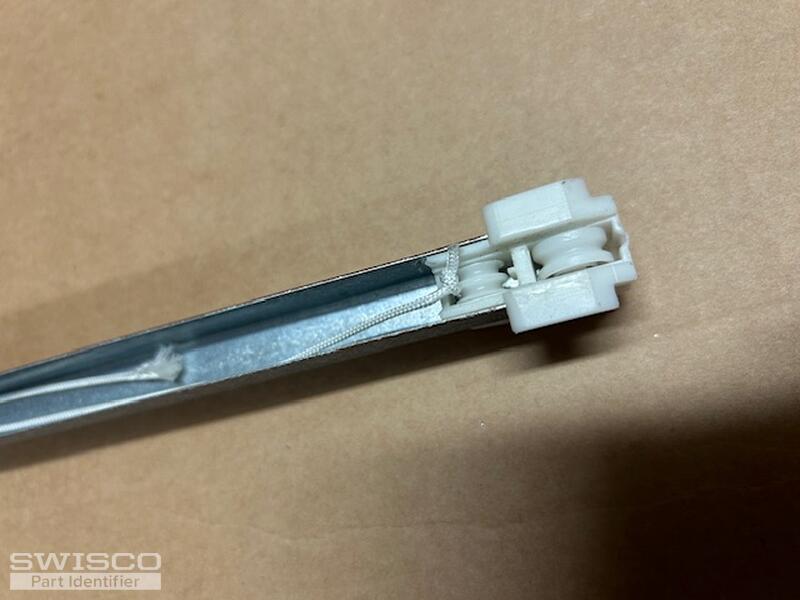

These are the pictures of the part you requested to move forward on this order.
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

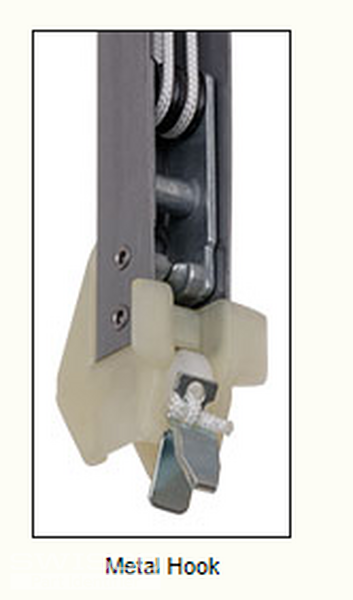

I'm afraid these new photos don't show the metal clip we need. You will need to use an undamaged version of this balance with an intact clip as a reference. This will be attached at the end of the pulley cord. The image below is an example.

metal hook
Quick Learner

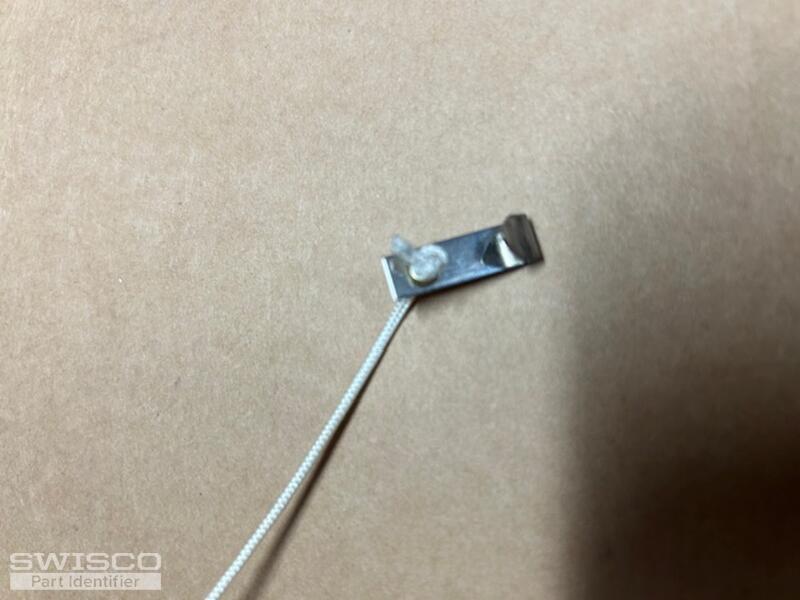

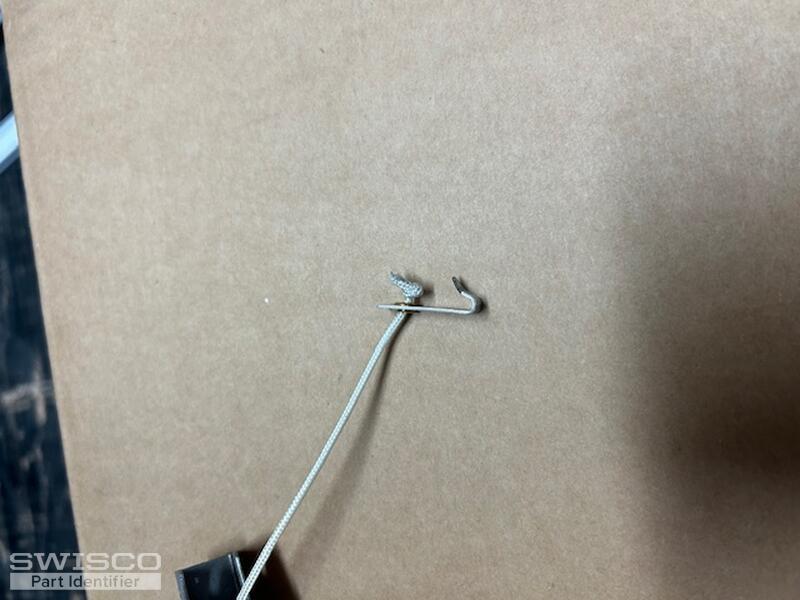

This is what the clips look like, please make sure the guide nylons are the same.
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

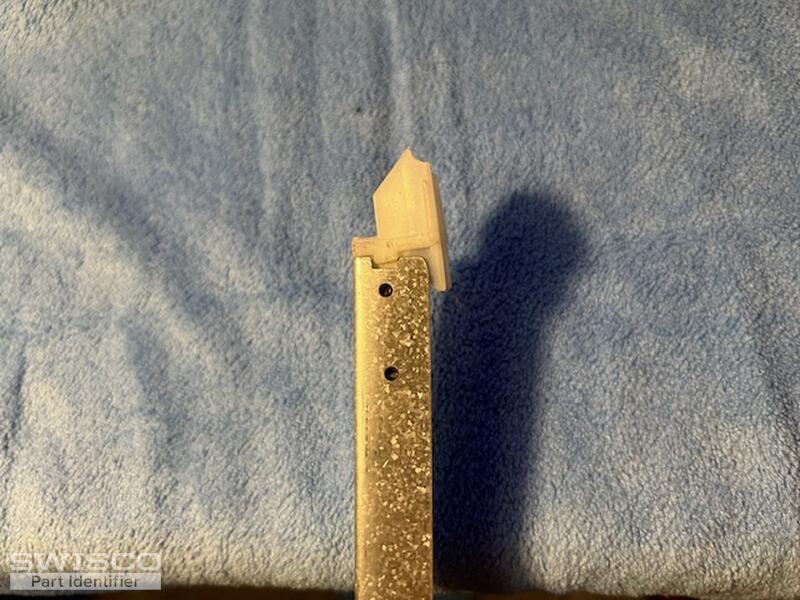

Perfect, thank you! I'll go ahead and email you a purchase link and price quote for (2) balances that you can use to place an order on our website. The replacements will also have the same top and bottom fittings and clip as what you show here. Please note that there is a 5-6 week lead time as well.

Let us know if you have any questions!
