Channel Balance Quote : SWISCO.com

Quick Learner

Feb 26, 2024 9:22 am

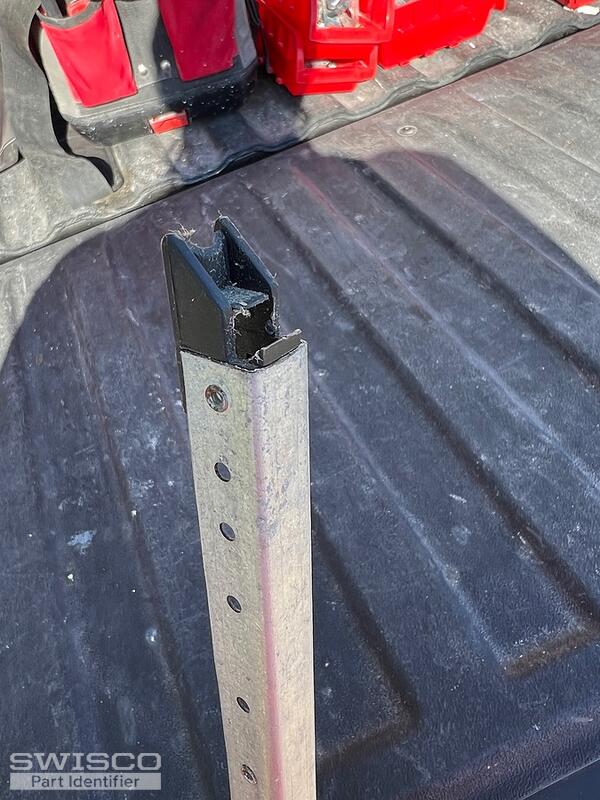

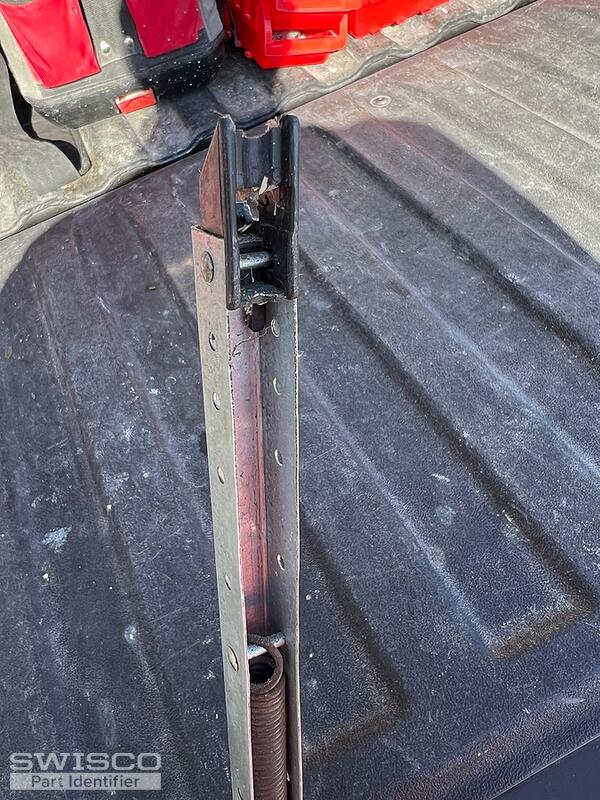

Unique 29-b-20. The length of the metal only channel is 30" I need 8 balancers. Possibly with the end pieces already revived onto the channels. santiago

5 user uploaded images

4 Replies

Lauren from SWISCO

Feb 27, 2024 8:08 am

Hello, thank you for posting,

It appears you have either our Series 351, with a 15-002 bottom attachment, or Series 390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

You will need a 30" balance with a 2920 stamp option. Please review and let us know if you have any additional questions.

Comparison of the S351 and S390 balance shoes.

Contractor from Fort Myers Florida

Feb 27, 2024 11:50 am

I measured the clip that you provided in the picture and it measures 1" so that would be the s351 with the 15-002 clip

Lauren from SWISCO

Feb 27, 2024 12:04 pm

Thank you for confirming,

You will need the S351-30 balance with a 2920 stamp option that can support a 12 to 16 lb sash weight. Please let us know if you have any additional questions!
