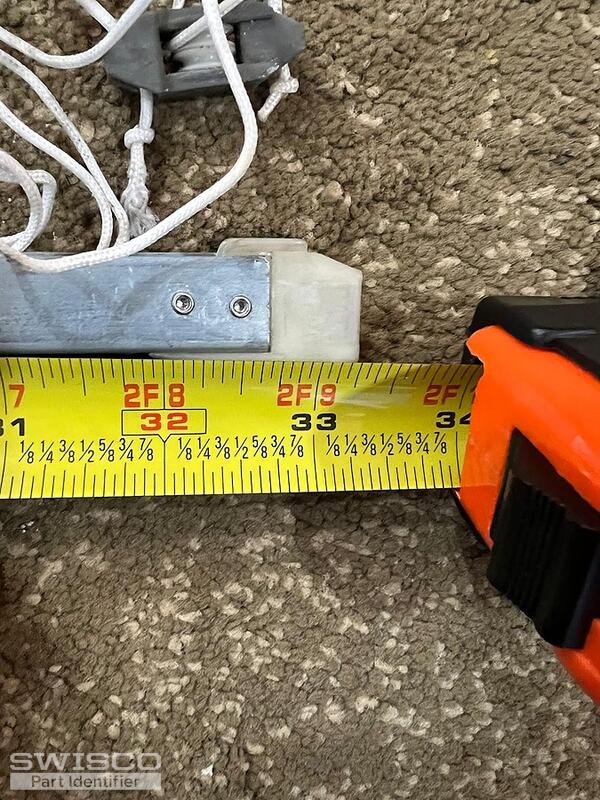

33 inch, slightly less than 33 as shown in the picture.
part number 3240 (RM written to the right)
bottom piece has marking PAT 6598264

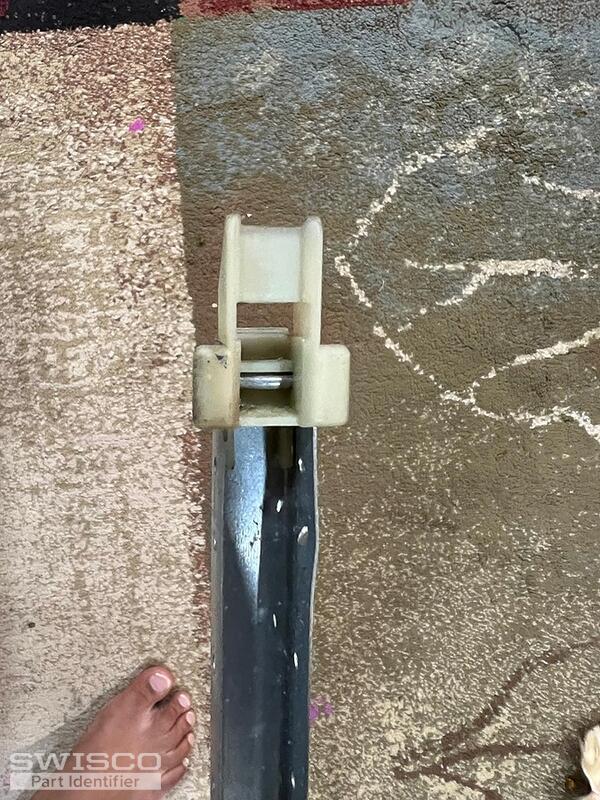

top piece has marking 3 in front and 16 on back
Extended-Travel Channel Balance Quote
Quick Learner
Apr 9, 2024 11:01 pm
5 user uploaded images
6 Replies
Emily from SWISCO
Apr 10, 2024 1:04 pm
Hello there!
Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length of 32-5/8" which is what makes it custom. Custom orders are nonrefundable so you may want to confirm as it's tough for us to get accurate dimensions from a photo of a tape measure.
To get this moving for you, can you upload a photo of the metal clip attached at the end of the pulley cord? Can you also confirm the number of balances you'd like to order?
Quick Learner
Apr 10, 2024 9:40 pm
both sides are broken, and I don't see it in either. if that's critical to know, I can try remove another panel. I would need 4 channels.
Emily from SWISCO
Apr 11, 2024 8:07 am
Yes, that metal clip is very important and I'm afraid we can't move forward without it. If there's an identical window in the house, we can use that as a reference.
Quick Learner
Apr 11, 2024 8:19 pm

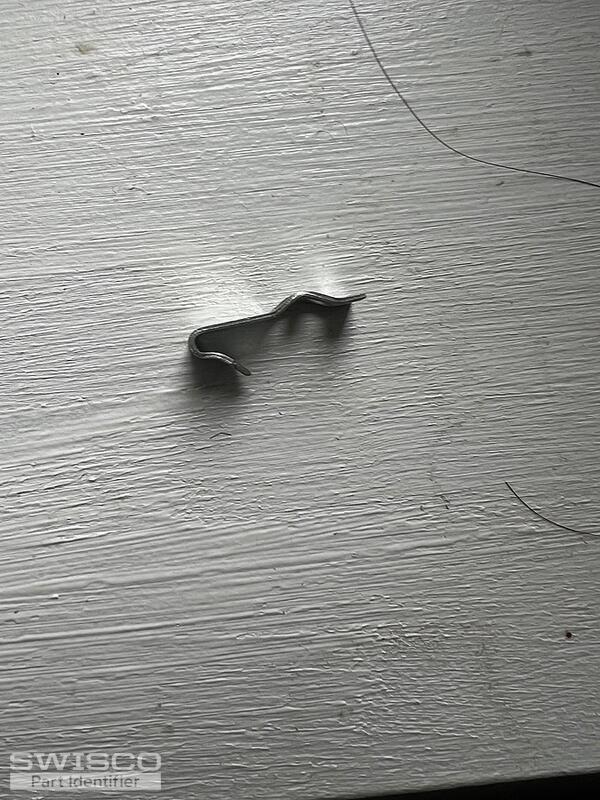

I removed another window and this is how it looks. let me know if this is All that's needed.
1 user uploaded image
Emily from SWISCO
Apr 15, 2024 8:32 am
Perfect, thank you kindly! I'll email you a purchase link and price quote for (4) balances that you can use to place an order on our website. Please note that there is a 5-6 week lead time but there is a chance it may take longer than this, unfortunately. I am very sorry for the inconvenience.
