Extended-Travel Channel Balance Quote

Quick Learner
May 26, 2024 10:06 pm

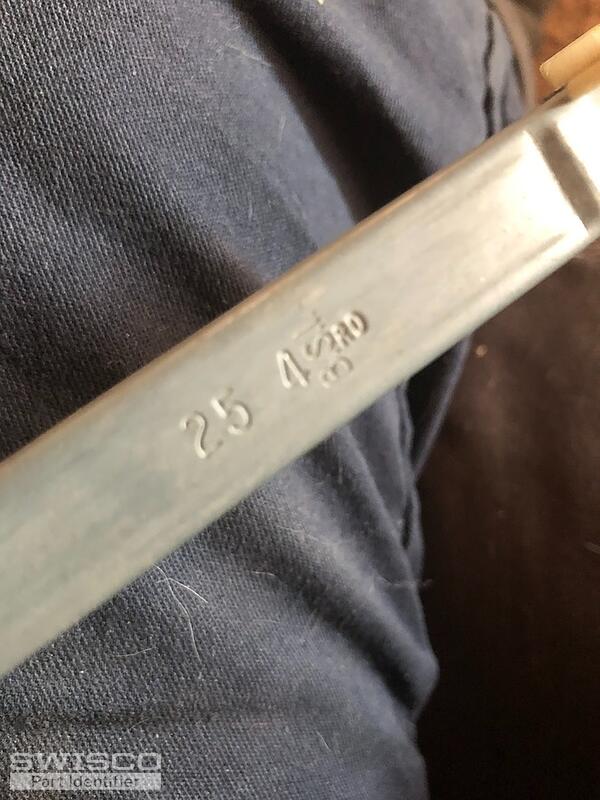

the Length is 25 3/8, The Marking says 25 4 RD and B.S.1 (pic Included)
the sash itself weighed 19.5 lbs
Thanks for your help
winged top fitting winged bottom fitting butterfly clip 25 4 stamped channel
4 user uploaded images
1 Replies
Emily
Emily from SWISCO
May 30, 2024 3:08 pm
SWISCO
EXPERT

Hello there!

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channel should measure 25-5/8" long. Custom orders are nonrefundable so we recommend double-checking before placing your order.

With that said, I'll email you a purchase link and price quote for (2) balances that you can use to place an order on our website.
