Extended-Travel Channel Balance Quote

Quick Learner
Aug 1, 2024 12:58 pm

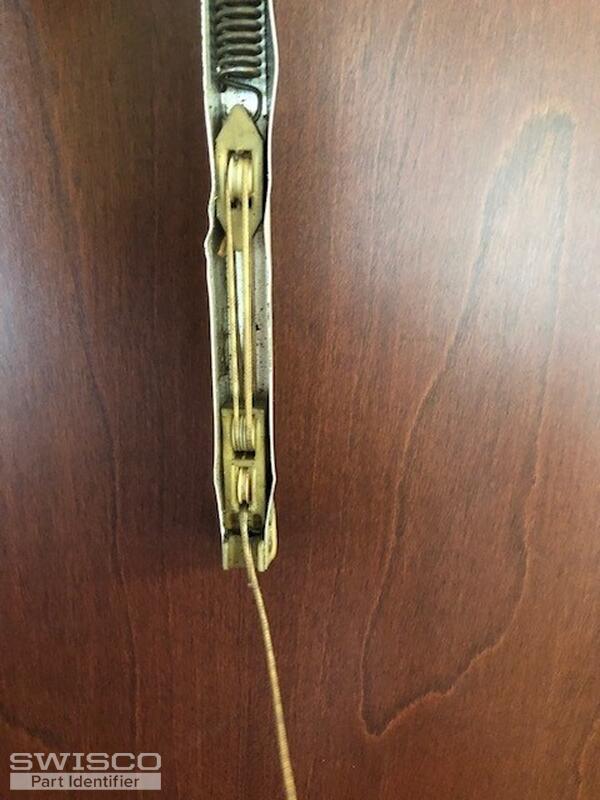

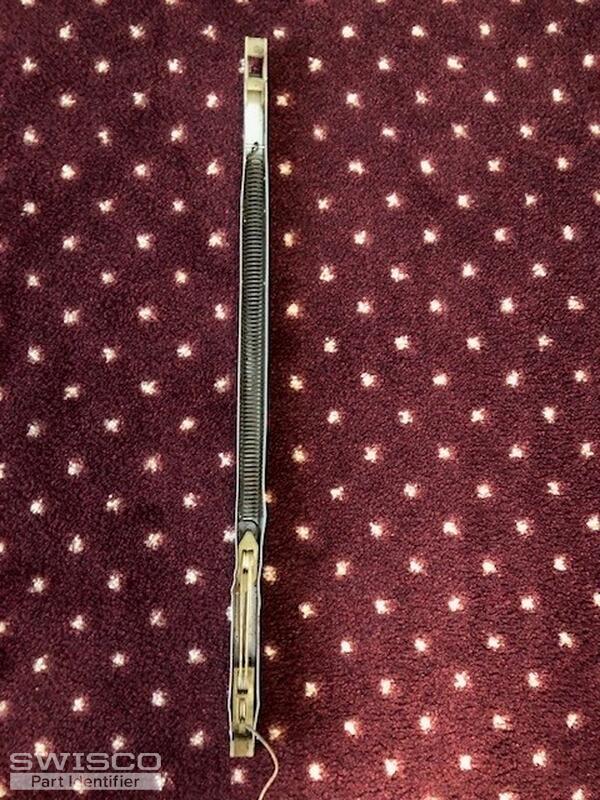

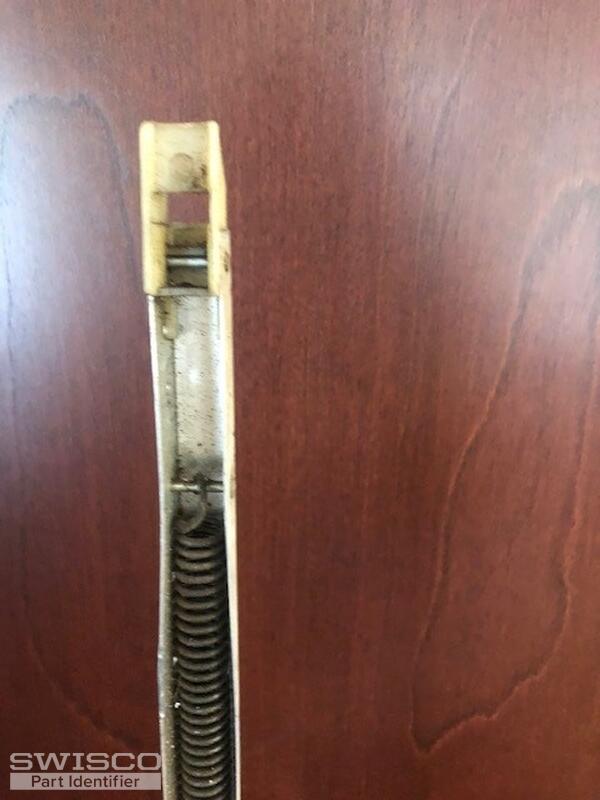

Metal channel 18" long
stamp 17 B
window 90E -1 Window 90E - 2 WIndow 90E -3
3 user uploaded images
1 Replies
Bob
Bob from SWISCO
Aug 1, 2024 7:10 pm
SWISCO
EXPERT

Thanks for posting. Based on the end fittings and length I think this is just a standard channel balance, not the Extended-Travel variety. Specifically this appears to be either an S351-18 or S390-18, depending on the depth of the bottom nylon shoe. See the image below for an explanation. In either case, for a stamp option choose 1720.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
