Extended-Travel Channel Balance Quote

Quick Learner
The balance appears to have a top 19-005, bottom 15-005 with a channel 17" x 1/2"

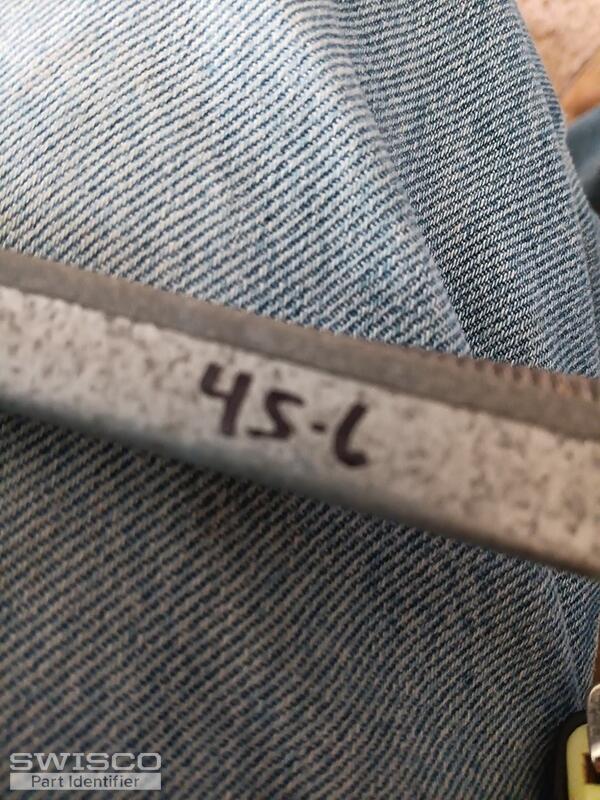

The numbers found were 45-6.
I need a matching pair for one window.
I don't know who the manufacturer is.
Thanks John
4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi John,

Thanks for you post! This balance would not be an extended travel channel balance. It most likely wouldn't need to be a custom assembly, unless the weight exceeds the weight ranges our balances can support. That said, since your stamp seems to be much different from our balances, I will need to know the exact weight of your sash.

It would also be a good idea to double check that the depth of your shoe is 1".

Please don't hesitate to reach out with any questions you might have.

Quick Learner

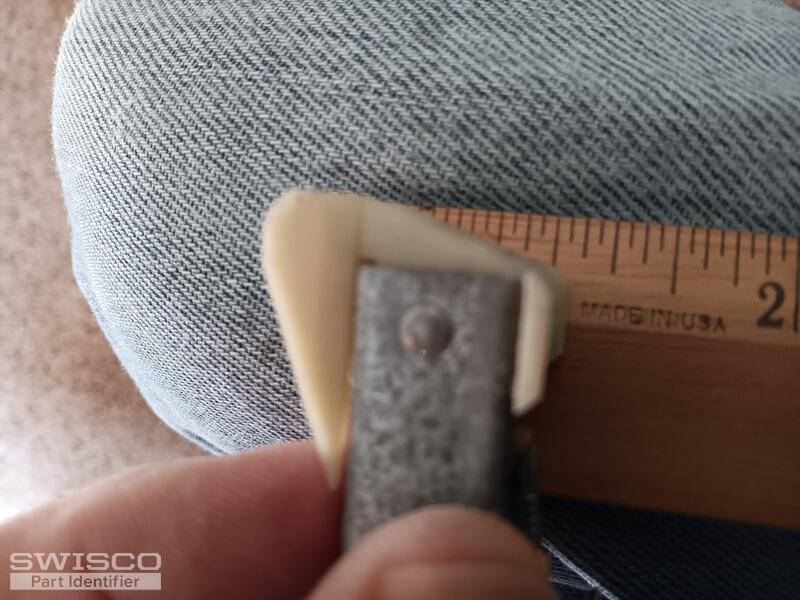

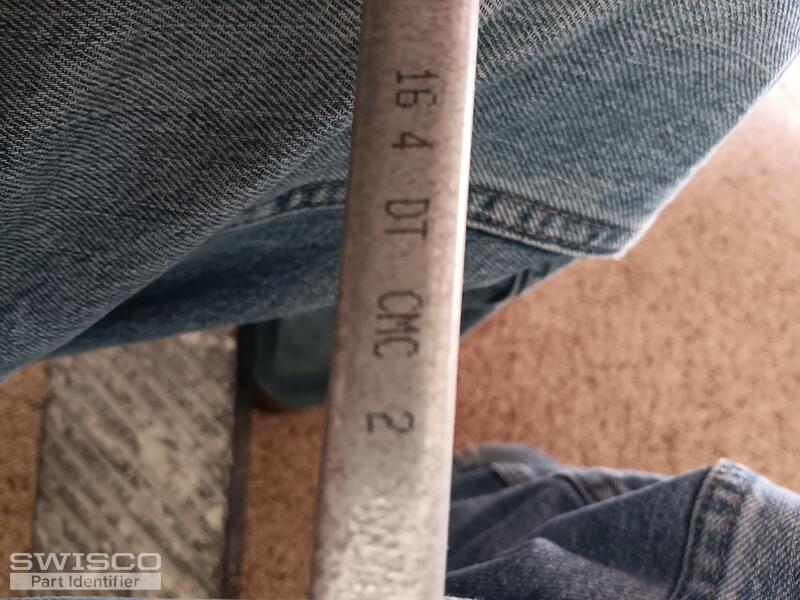

Hi, removed the second balance which had identification numbers 16 4 DT CMC 2. The shoe measured slightly under 1 1/8 inches in depth.
If I still need to weigh the sash, let me know.
Thanks, John
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming. Your balances can be replaced with either the S380-17 or the S385-17. To determine if the 15-005 is the shoe you have, you'll need the S380-17 but I would suggest double checking the depth.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
