Extended-Travel Channel Balance Quote

Quick Learner

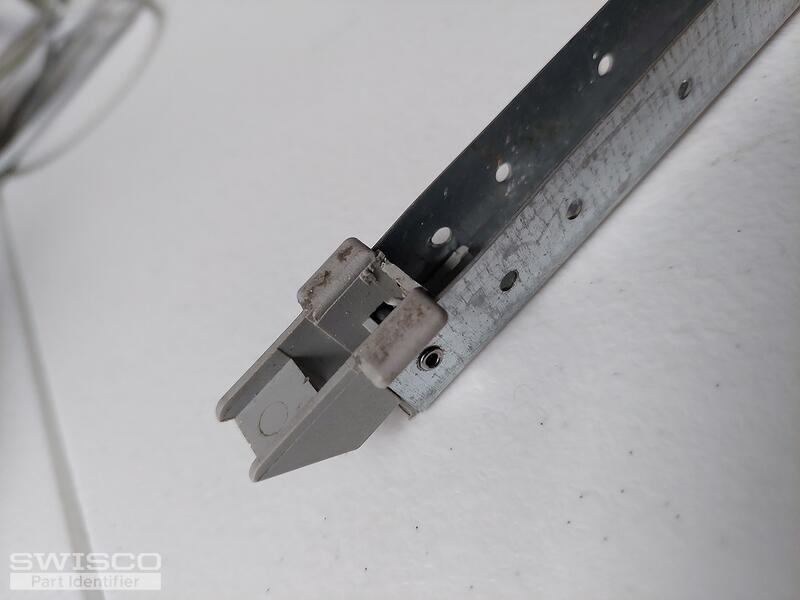

The metal channel's length is 25.5'', and its width is 9/16'' (considered 1/2'' in the trade). It has a winged bottom shoe of 1'' depth.
I need 2 balances.
5 user uploaded images
5 Replies
Quick Learner

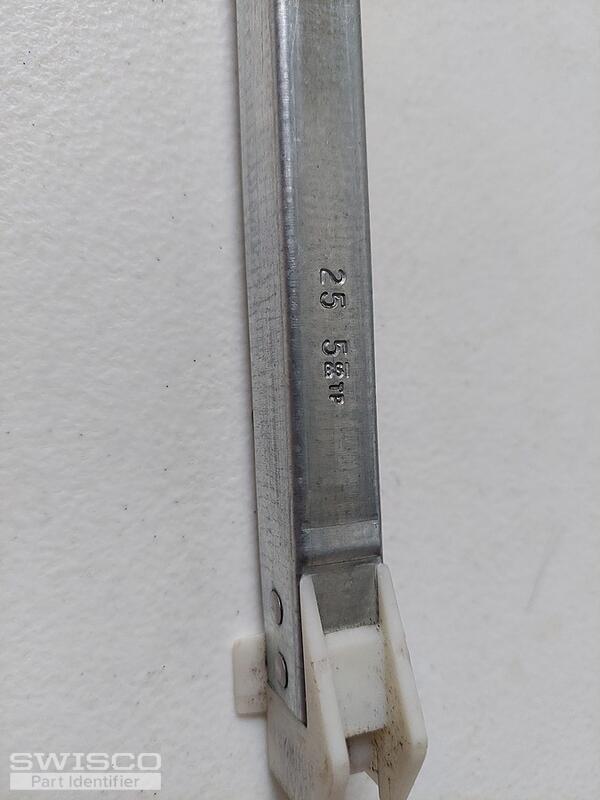

The stamp on the channel is "25 5"
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channel should measure 25-5/8" long. Can you double-check that for us? Custom orders are nonrefundable and we can't promise our replacements will work for you if the length differs.

In the meantime, can you show us a photo of the metal clip attached at the end of the cord? If it broke off, you'll have to use an undamaged balance as a reference.

Quick Learner

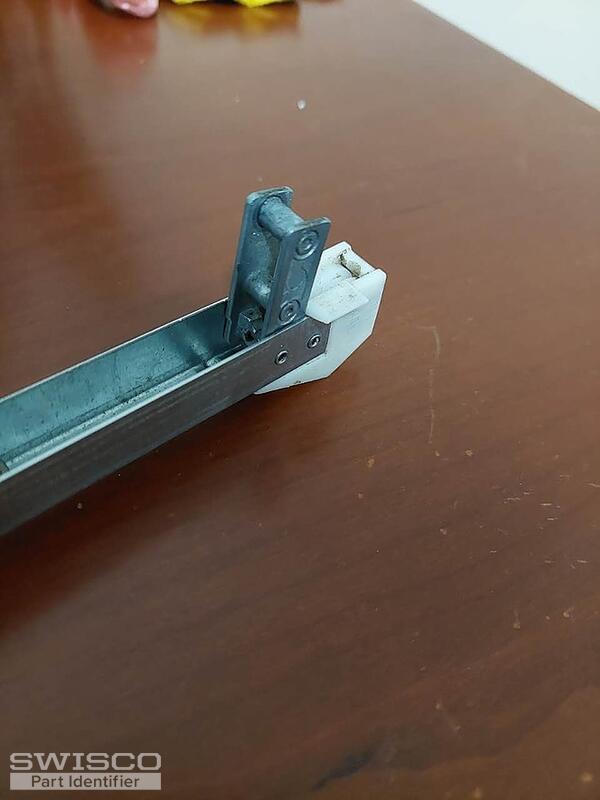

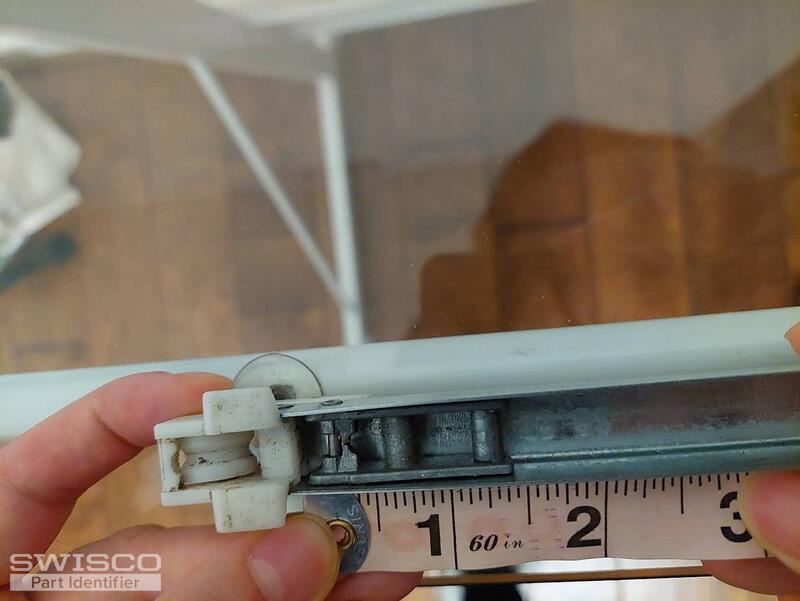

Hi Emily, thanks for reaching out. I have double-checked the channel length of the balance and it is 25.5''. I also took a picture of the metal clip at the bottom of the balance and its length is 1 and 3/8 inch. Please see the attached photos.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Unforutnately, we are not able to supply these extended travel balances with 25-1/2" channel. Our replacements for these riveted balances would measure 25-5/8". If the length doesn't match, there's a good chance they won't work for your application.

The pulley clip is also missing from your balance. The photo only shows the metal bracket that holds the pulley inside the channel. You would need to check an undamaged balance from the other side or an identical window to locate the hook used for installation.
