Extended-Travel Channel Balance Quote

Quick Learner

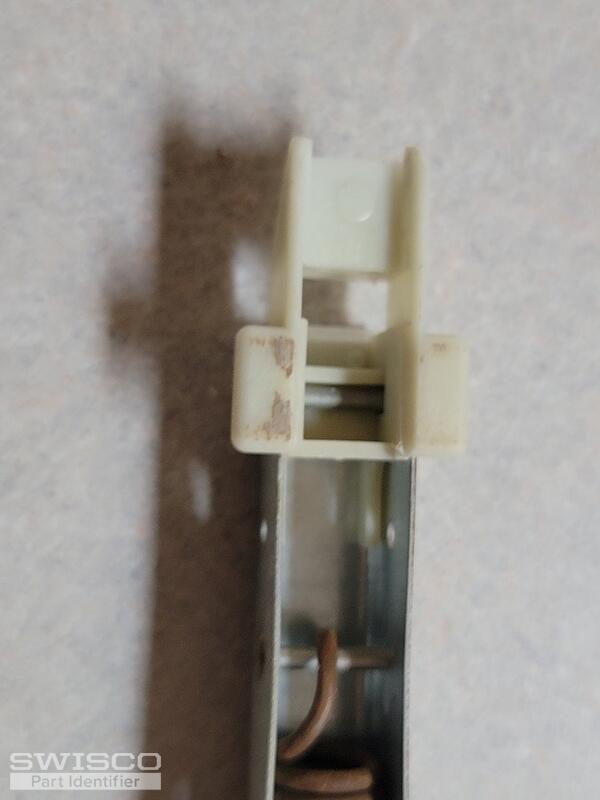

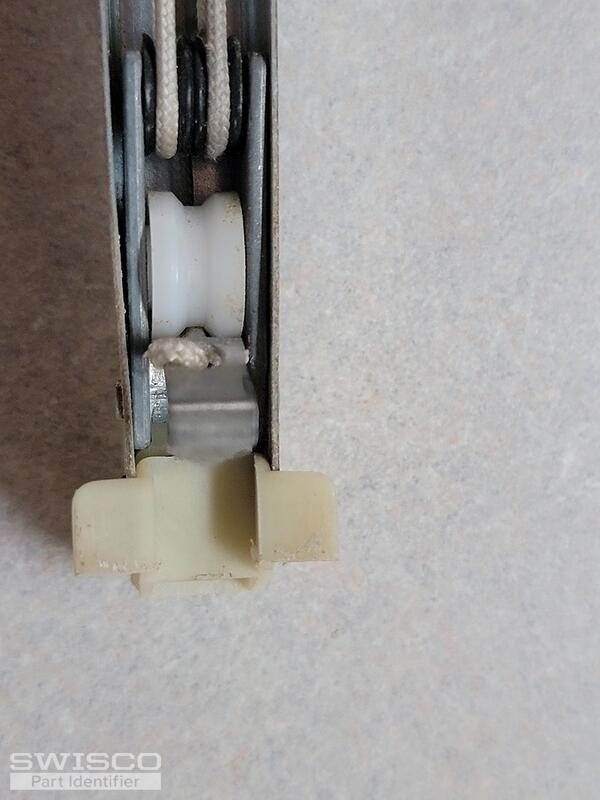

Balance is 27" long, by 1/2" wide, stamped with 26 4 BSI
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

The balances you have here are not extended travel channel balances and can be replaced with the balances shoe in our inventory. That being said, the window balances you have here can be replaced with either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe.

To confirm which of these is the correct replacement, you'll need to measure the depth of your bottom shoe (see the diagram below for reference). If your shoe does not match either measurement, please let me know.

For the stamp, you'll need to select the 2640 on the website.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Doyle,California

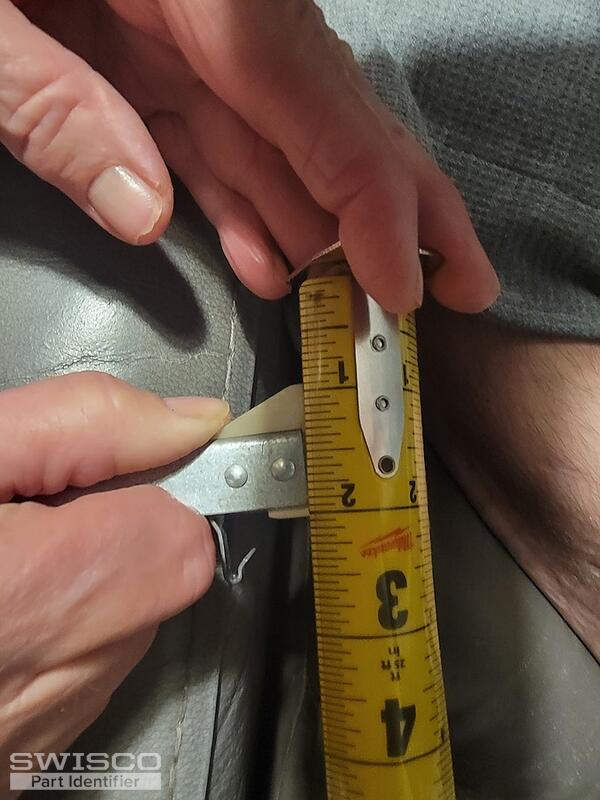

I am measuring an inch and 1/16, please see attached photo, and please correct me if i am incorrect

Thank you
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Since the shoe appears to measure over 1" and you are confirming a 1-1/16" measurement, it is likely the shoe is worn down. That said, the S385-27 should be the replacement you need.
