30" Extended-Travel Channel Balances

Quick Learner
1/2" wide, 5/8" deep, 30" long
Old pieces broken and rusted so not great photos. Guardian Windows out of Michigan made the windows in 2006. I absolutely can not find any stamped numbers.
I need to repair two same size windows so 4 needed.
3 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

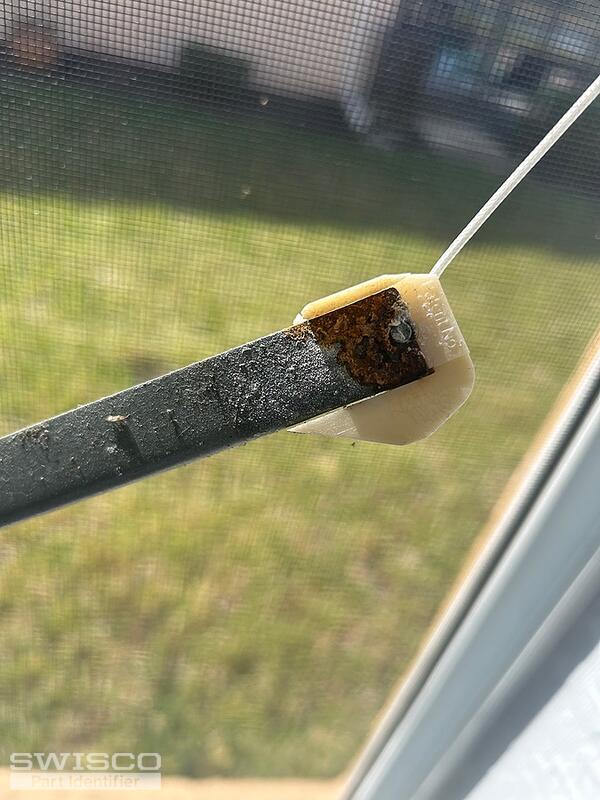

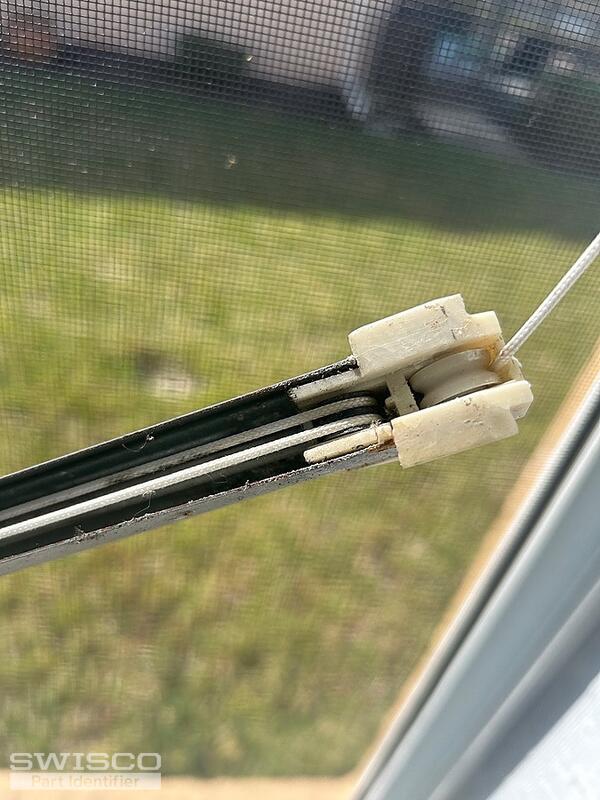

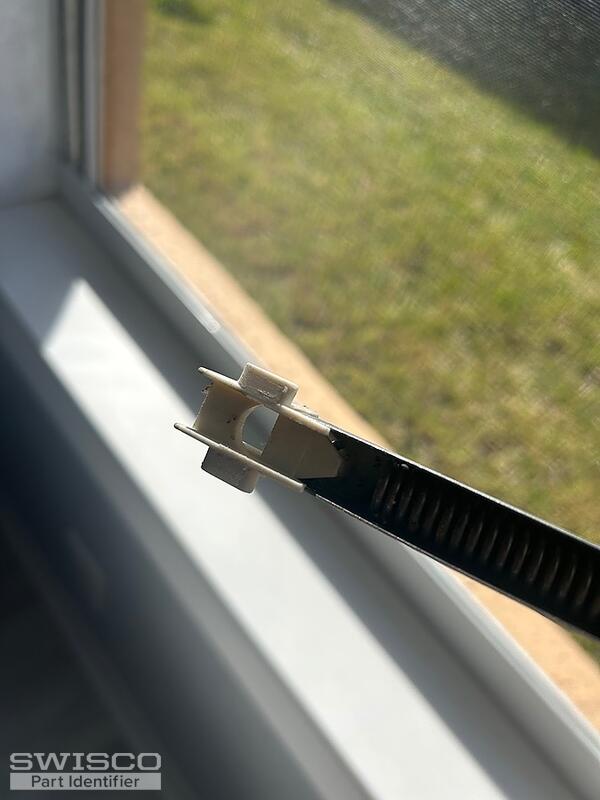

We can supply your replacement balances but it will need to be a custom order due to the extended travel pulley system and unique combination of end attachments. With that being said, we'll need more information to determine the series you need. First, we'll need to know the numbers stamped on the balance channels to determine the strength options needed for your replacements. We'll also need to see the metal installation clip attached to the pulley of an undamaged balance. Lastly, we'll need to see a side profile photo of the bottom fitting shown in your second photo so the rivets are visible. Thank you.

Quick Learner from Venice FL

A correction that both the width and depth are 5/8 inches

 Weight of window sash is 22 pounds

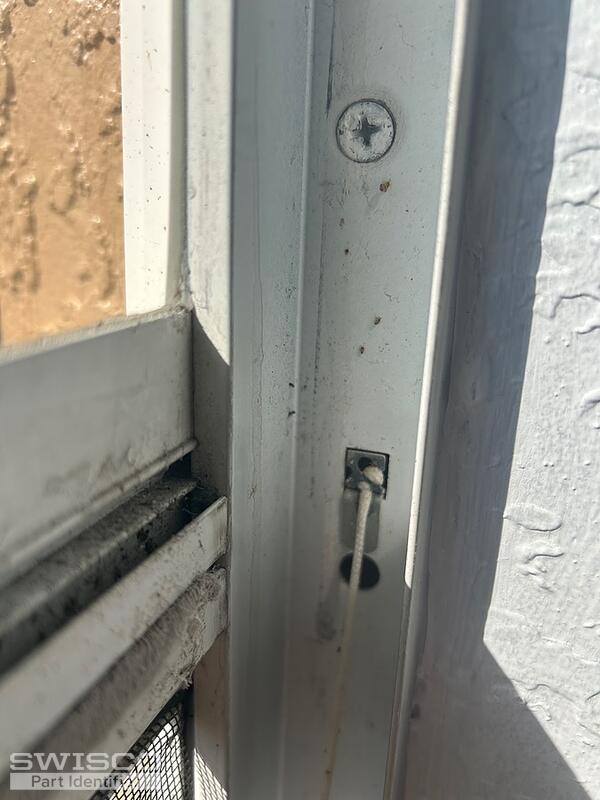

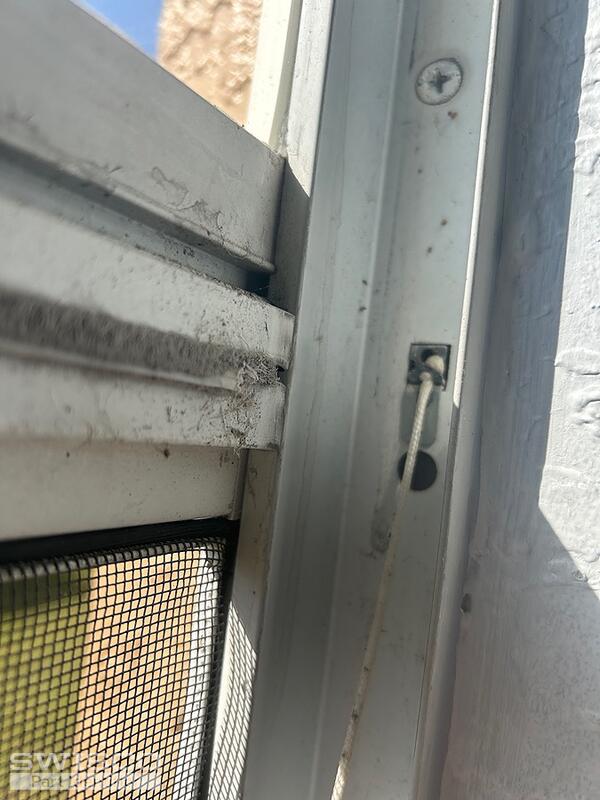

5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. We can supply the configuration you need but these balances should have either a 29-7/8" or 30-7/8" long metal channel, not including the end fittings. Once we confirm the length of your assembly, we'll be able to send over an order link and price quote.

Quick Learner from Venice FL
29 7/8
Casey
Casey from SWISCO
SWISCO
Expert

Great, we just sent over your order link and price quote. Take a look and let us know if you need anything else. Thank you!
