External sliding door rollers are worn out.

Handy Person from Rockville, MD

Mar 12, 2015 6:02 pm

Sliding door panel is 35" X 75.5" X 1.5". It has two sets of two rollers underneath. The rollers are not rolling easily. Do you have new rollers? There are no identifying name or number on the door. It is all vinyl.

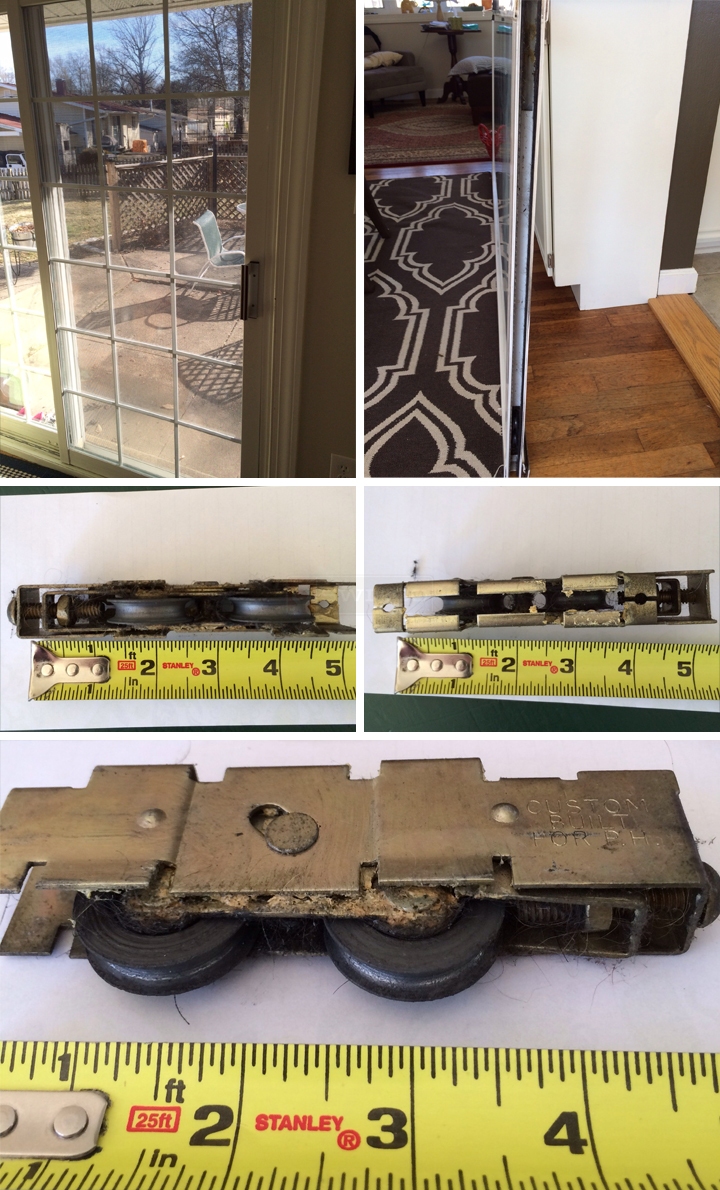

User submitted photos of a patio door roller.

4 Replies

Dave Sr. from SWISCO

Mar 17, 2015 2:28 pm

We might be able to find something, but I will need more dimensions of the roller itself. I cannot tell what you have based on that tape measurer. Please tell me the width and height of the housing and the diameter of the wheels. That will help us find a good match. In the meantime, you could consider our 81-095 or 81-138, but I cannot guarantee that either will work.

Quick Learner from Rockville, MD

Jul 25, 2017 9:43 pm

Hello-

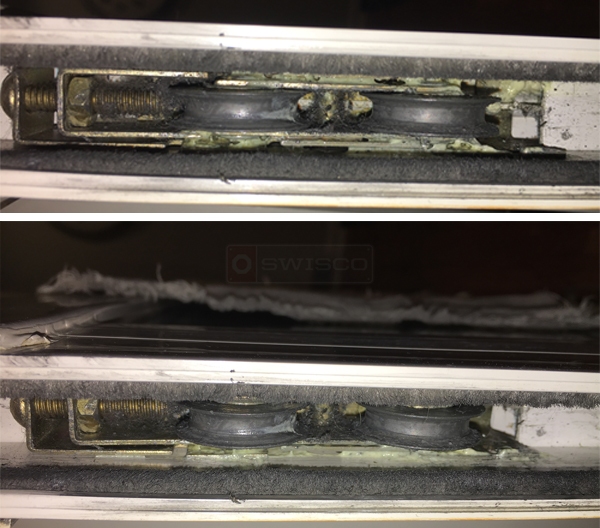

It's me again. I finally removed to door off the track because it was very hard to slide. I re-oiled it and took accurate measurements. Here are the dimensions. Each wheel is 1 3/16" D X 5/16" W. The whole assembly (with two wheels inside) is 2 15/16" long. The door has two assemblies. Two photos are attached.
Hope this helps.
Thanks

External sliding door rollers are worn out.

Tom from SWISCO

Jul 31, 2017 1:22 pm

Thanks for getting back to us. We should be able to supply these to you as a custom order. I will email you a custom roller order link for 2 of these. This will include a price quote.
