FW: SLIDING GLASS DOOR PARTS - ROLLER ASSEMBLY

Contractor from USA

Apr 6, 2015 3:57 pm

We a contractors in Arizona looking for some roller assemblies for two sizes of large sliding glass doors. The doors are about 15 years old and are no longer functioning properly. I have attached PDF files which describe the larger and smaller roller assemblies and

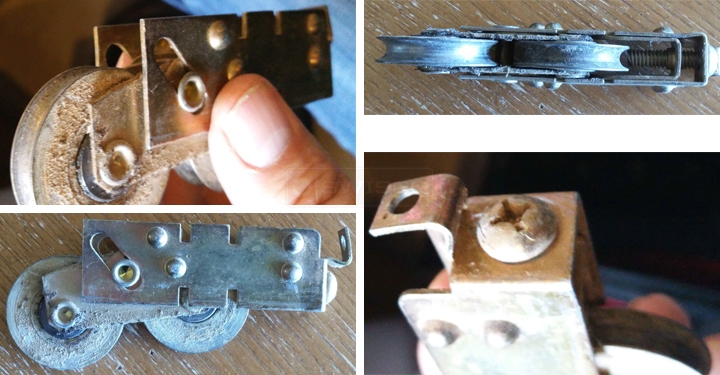

User submitted photos of a patio door roller.

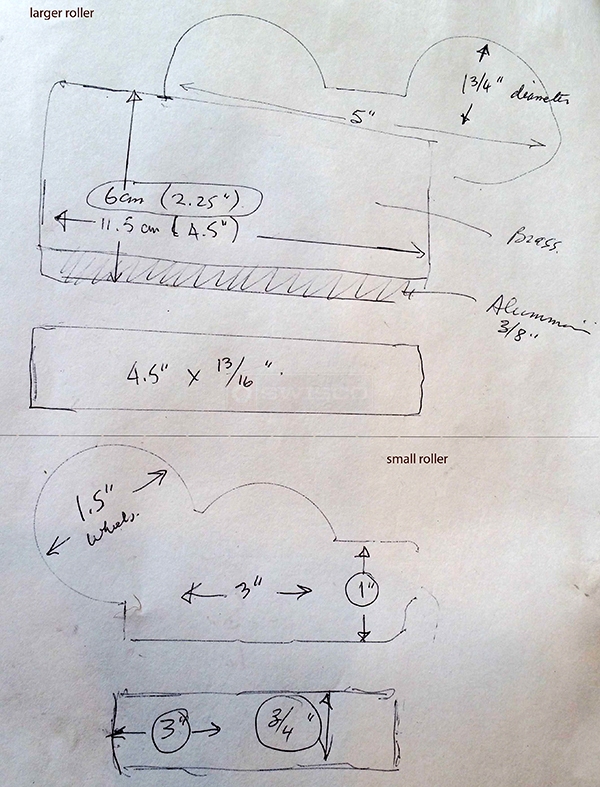

User submitted a diagram of a patio door roller.

3 Replies

Dave Sr. from SWISCO

Apr 8, 2015 11:30 am

Thanks for posting. It's hard to say what will work. Take a look at the following rollers see if the dimensions line up with your two parts: our 81-051, 81-052, and 81-174. Let me know what you think.

Professional from California

Apr 8, 2015 5:46 pm

You will probably need to remove the aluminum spacer and reuse it on the new roller. Don't lose it.
