Farley casement window issues

A quick learner from Virginia says:
December 17, 2020
I have a customer who is having issues with their Farley casement windows (installed in 2003). They can open the windows but have issues closing them. I have attached 2 pictures. one of the pictures I circled where I think the issue is. It looks like the operator is worn down in one area and that is causing the window to not close when it gets to a certain location.
Since I cannot get farley parts anymore, do you have an compatible parts?
Thumbnail of the uploaded file named IMG_0453 (2).jpg
Thumbnail of the uploaded file named IMG_0454.jpg
Profile picture of Tom
Tom from SWISCO responded:
December 18, 2020

It definitely looks like you need a new operator. I'm confident that we can supply it, but before I recommend anything I would like you to disconnect the long straight arm from the track and show me a picture of the end of it. There are a couple different types and I need to know what yours is. Seeing the end of the arm will allow me to do that.
A quick learner from Virginia says:
December 18, 2020
Ok thanks for the reply. I will plan on going back to their house one day next week and get some pictures for you. Once I do that I will send them your way. Thanks!
Profile picture of Tom
Tom from SWISCO responded:
December 18, 2020

Great! In the meantime, you may want to watch this video. The two products featured here are more or less what we need to decide.
A quick learner from Virginia says:
December 23, 2020

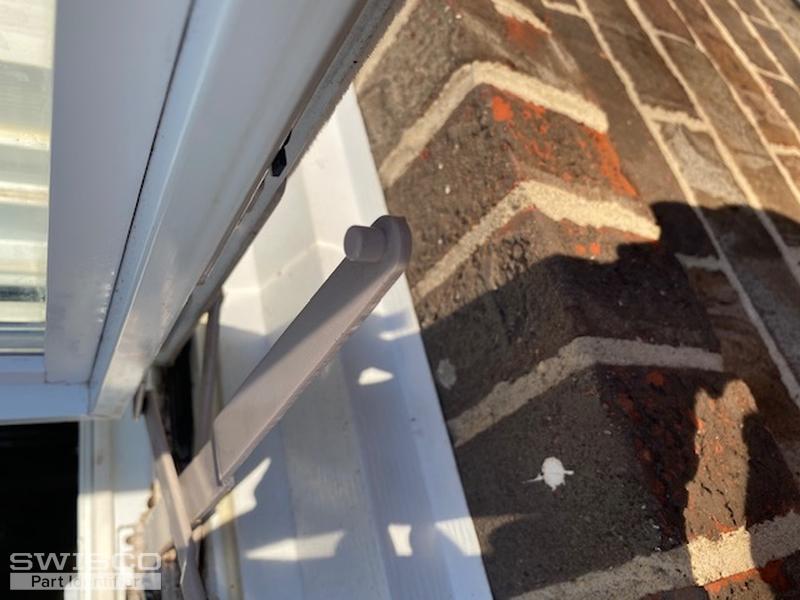

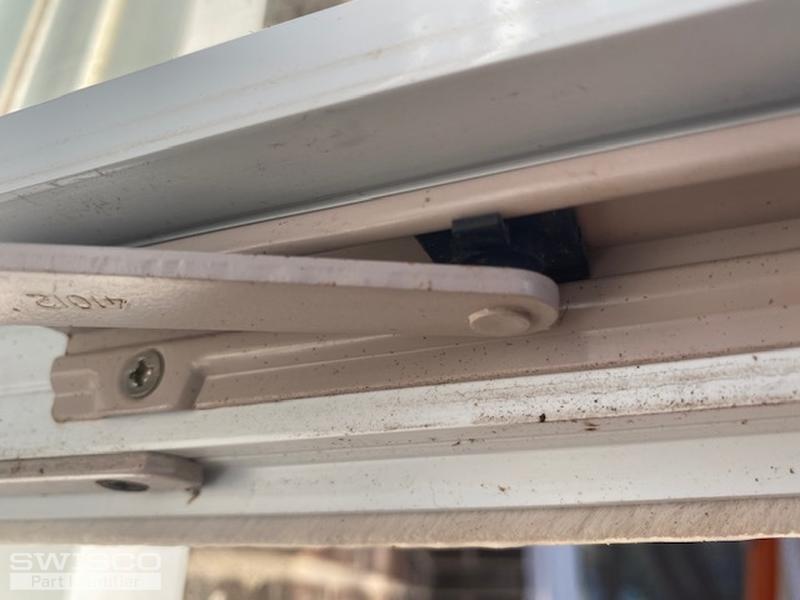

I was able to get back by the house and take some more photos. Attached are the pictures requested of the arm on the casement.
Thanks!
Thumbnail of the uploaded file named IMG_0517.jpg
Thumbnail of the uploaded file named IMG_0518.jpg
Thumbnail of the uploaded file named IMG_0519.jpg
Thumbnail of the uploaded file named IMG_0520.jpg
Profile picture of Tom
Tom from SWISCO responded:
December 28, 2020

Thank you! That'd be the 39-253LB and 39-253RB. You can reuse that square black slider, assuming it's still in good condition. If it's not, you can use our 39-529.

We also sell the 39-451 and 39-452 covers/handles.
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253LB
$30.70
Encore Dual Arm Operator, Sill Mount, Low Profile
Encore Dual Arm Operator, Sill Mount, Low Profile
39-438B
$38.64
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253RB
$30.70
Encore Dual Arm Operator, Sill Mount, Low Profile
Encore Dual Arm Operator, Sill Mount, Low Profile
39-439B
$38.64
Encore Truth Operator Cover and Handle
Encore Truth Operator Cover and Handle
39-451
$12.05
Encore Truth Operator Cover and Handle
Encore Truth Operator Cover and Handle
39-452
$12.05
Comparing the 39-253LB & 39-438B Operators
Comparing the 39-253LB & 39-438B Operators
VIDEO
WATCH >
How to Orient a Dual-Arm Operator
How to Orient a Dual-Arm Operator
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
