Farley upper sash pivot bars

Quick Learner from PA

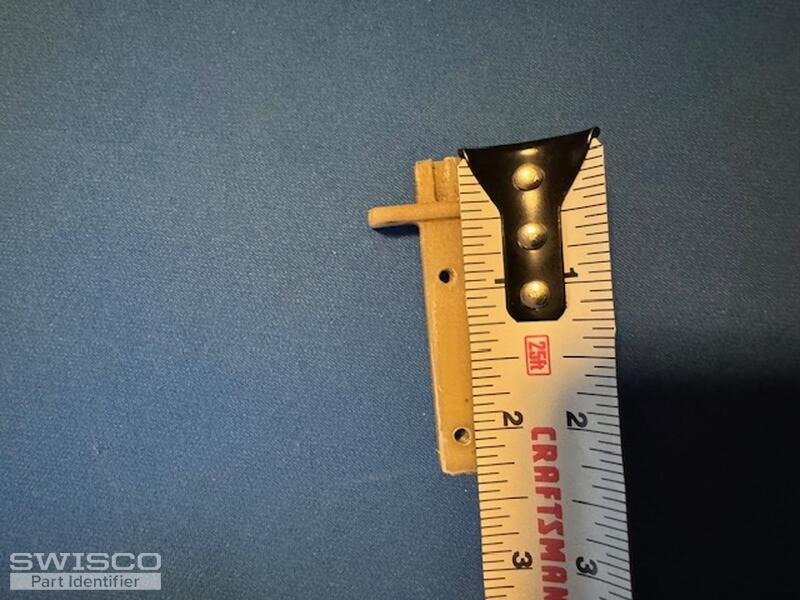

Hi, Looking for replacement top sash pivot bars. Mine are plastic. The are 2 5/16" long, 3/16" thick, 5/16" wide but the distance between screw holes seems to be about 1 1/8" to 1 3/16". Distance from end to closest screw hole is 7/8" and to farthest screw hole is 2".
4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. I am afraid we don't have an exact match for this pivot bar. The 26-369, 26-400, and 26-412 are all similar in design. None have hole spacing that matches what you describe, however. Please double-check your measurements, and be sure to measure from the center of each mounting hole. So long as the distance between one of the mounting holes and the tip of the pivot bar that fits into the shoe matches one of the holes on one of the replacements shown below, then it should work. You only need to use one hole on a pivot bar for it to work correctly. Take a look and let me know what you think.

Alternate image for 26-369
Alternate image for 26-369
Alternate view of 26-369
Alternate view of 26-369
Alternate view of 26-369
Alternate view of 26-369
Alternate image for 26-400
Alternate image for 26-400
Alternate image for 26-412
Alternate image for 26-412
Alternate view of 26-412
Alternate view of 26-412
