Finding correct replacement shoe

Quick Learner from Binghamton NY

Sep 20, 2015 2:59 pm

I have a Ellison 1600 series vinyl insulated double hung window (Tilt out). I used the cut out method to remove my pivot shoe. The question I have is to get the right replacement shoe for my window. I measured the length at 1" 5/16. The width at 1"1/4 and the depth at 5/16". Can you advise. I hope by having the correct series above you would be able to cross reference the correct part number. Thanks.

5 Replies

Tom from SWISCO

Sep 21, 2015 1:40 pm

I think we can help, yes, but before I recommend anything can you just show me a few pictures of the pivot shoe removed from the window? That will allow us to find the best match. Thank you!

Quick Learner from Binghamton NY

Sep 21, 2015 2:56 pm

I will attempt to add 3 pictures for your review.
I hope that you can help. Tanks

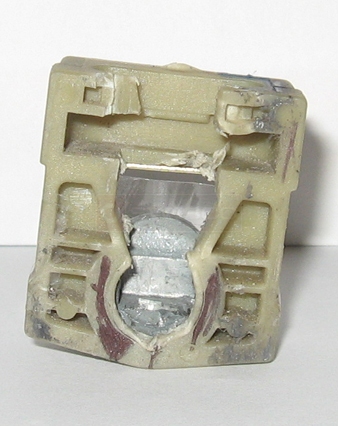

User submitted photo of their window hardware.

Paul from SWISCO

Sep 22, 2015 3:51 pm

Thanks for posting. Please see our 15-216 pivot shoe and see if this is a good match. Just confirm your measurements; this shoe is 1-1/4" wide and 1/2" thick.

Quick Learner from Binghamton NY

Sep 28, 2015 7:36 pm

I ordered the part recommended by Paul and received it today. Although I had to cut out more of the window to install it - It works fine. Thanks to the Swisco team...
