Finding the right window balances
Hello, thank you for posting,

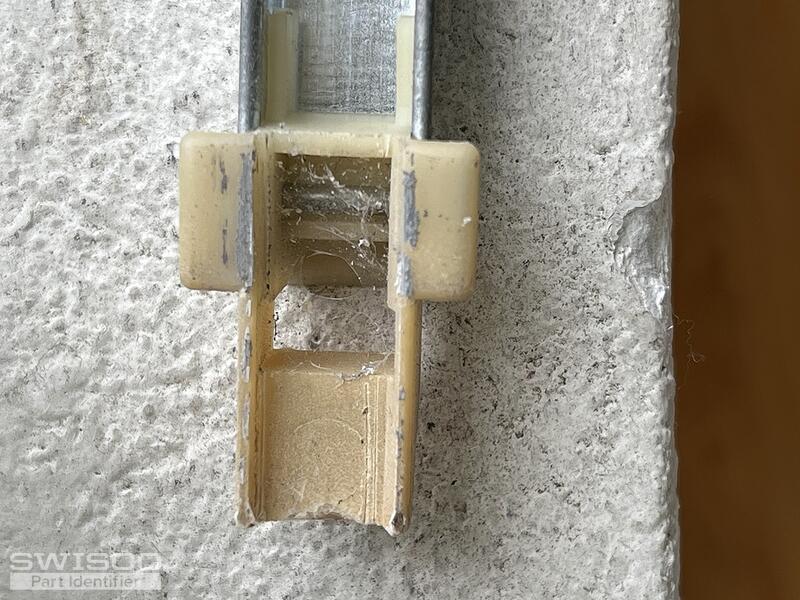

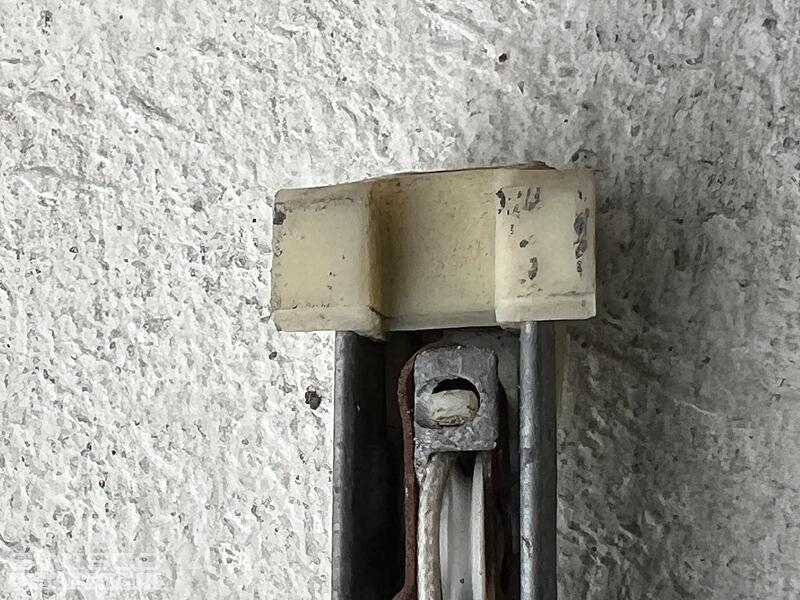

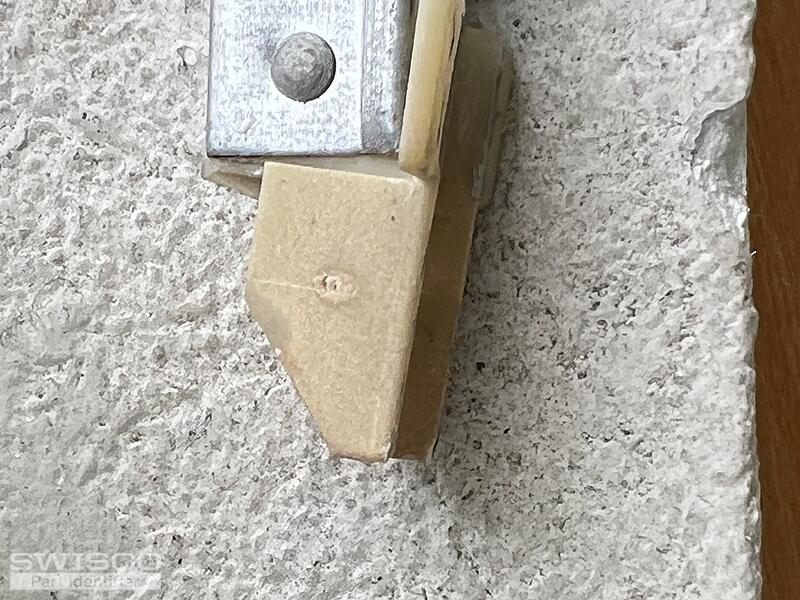

To further review, we will need to see the original balance removed where we can see clear images of the top and bottom nylon attachments. We will also need to see the inside of the metal channel where we can view the connection point between the spring and pulley system. From there we can narrow down the series of balance needed for your window. Thank you!
Thank you for the additional pictures,

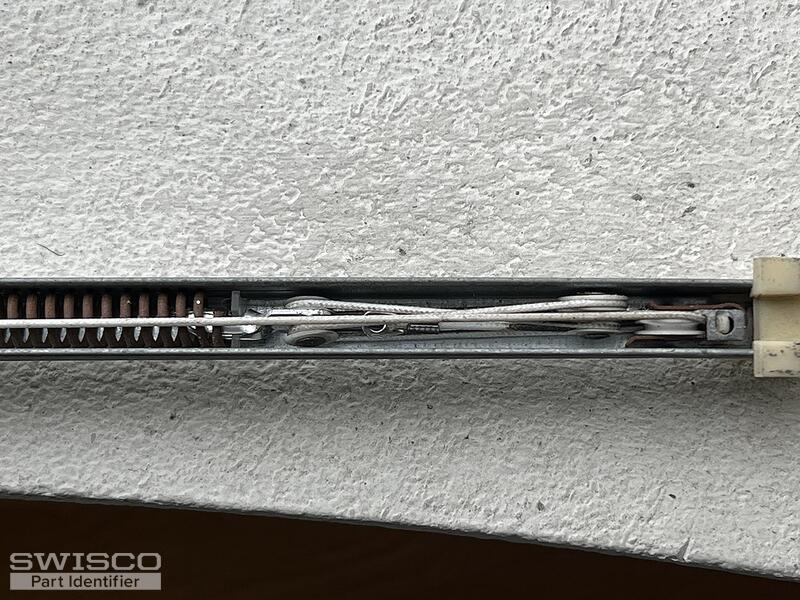

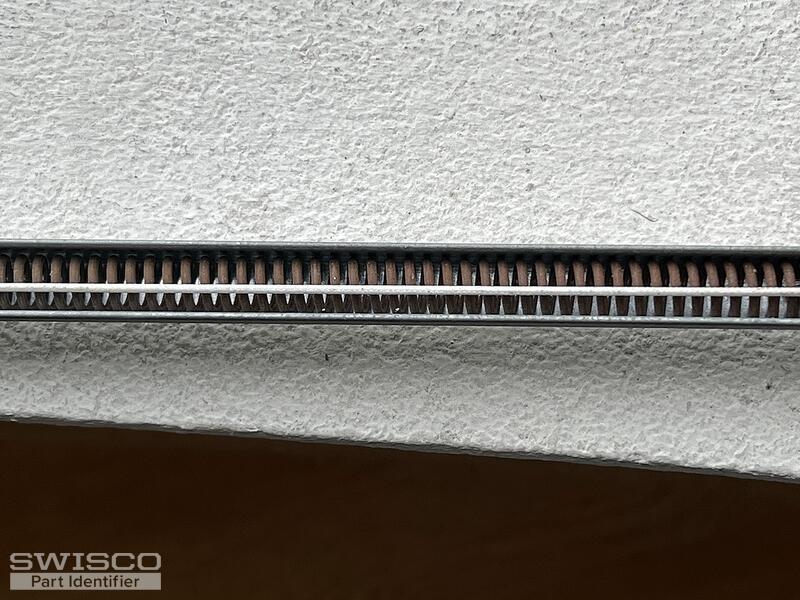

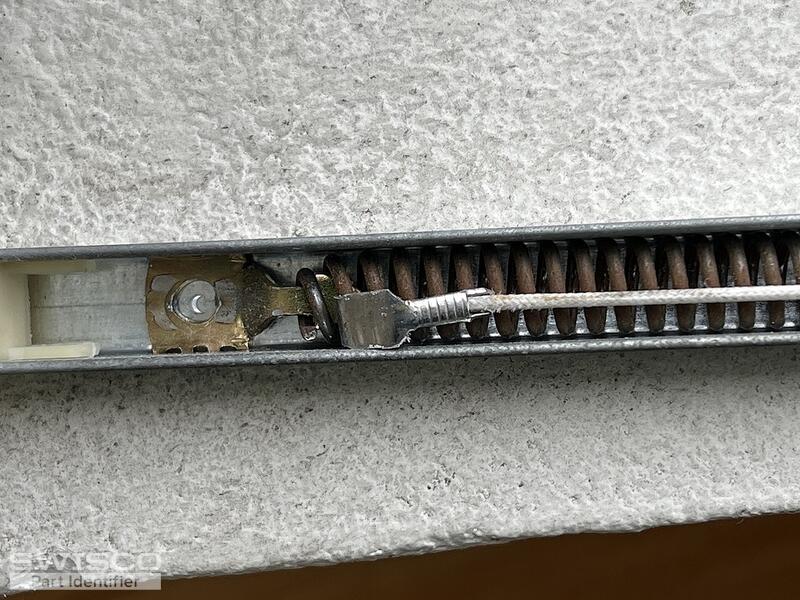

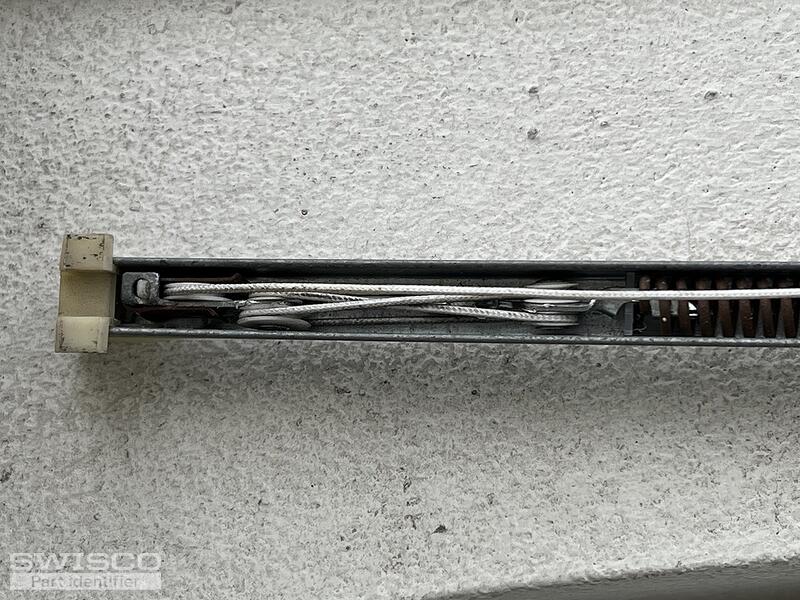

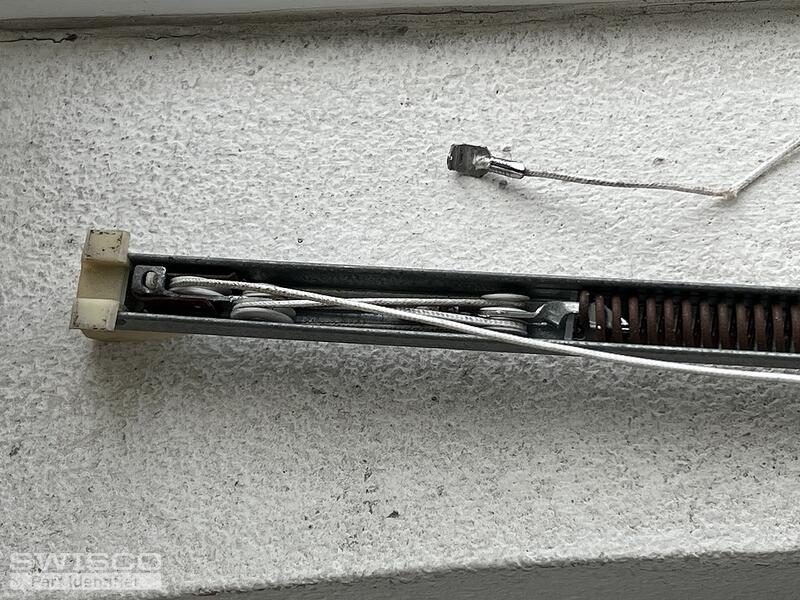

To further review, we will also need to see the inside of the metal channel where we can view the connection point between the spring and pulley system. From there we can move forward with identification. Thank you!
Thank you!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
The length of the metal channel excluding the nylon attachments should measure 32" long and you will need a 3130 stamp option. Please review and let us know if you have any additional questions.
