Florida Extruder International parts

Handy Person from Hernando, FL

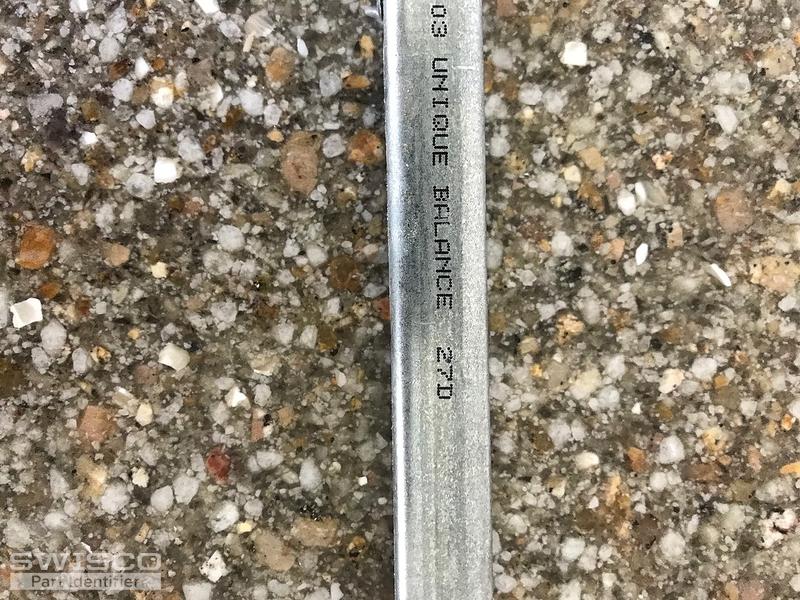

I need to replace the block and tackle balances on three windows. The channels are 28" long and 3/4" wide. I would also like to replace the plastic piece that the window sits in at the bottom of the balance. The manufacturer is Florida Extruders International
4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

You can start by taking a look at our S770-28 plain channel balance but you'll want to weigh your window sash to choose the correct strength option by following the chart under our product description.

To identify your pivot shoes, we'll need to see a picture of an undamaged shoe removed from the window, as well as the width and thickness, to compare to our selection. We've related a video to assist you with the removal process. Thank you!

Handy Person from Hernando, FL

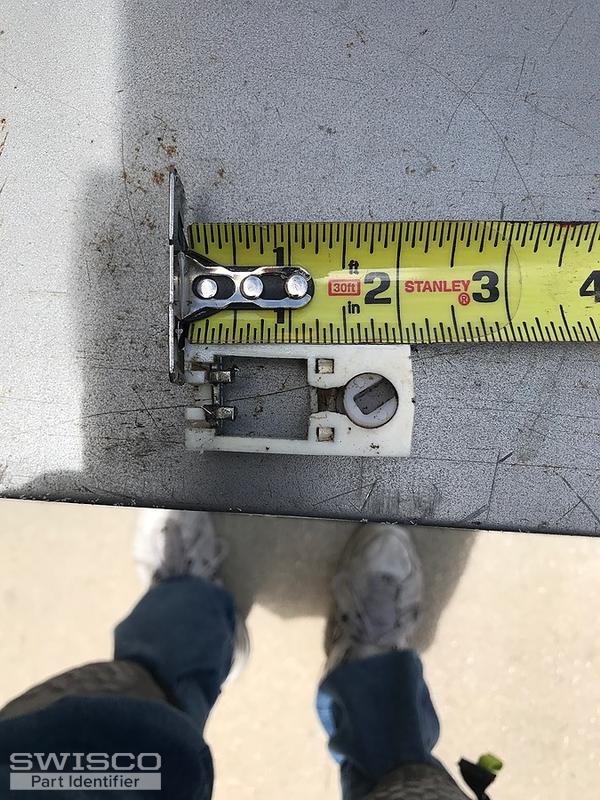

Hi. The windows are 25 pounds. Attached are photos of the pivot shoes
1 user uploaded image
Paul
Paul from SWISCO
SWISCO
Expert

Unfortunately, the balance system came from a manufacturer that has gone out of business. You can use our S770-28 with a spring strength option of 28D to support your 25-pound sash. As for the pivot shoe, take a look at our 15-173. The center white cam accepts a pivot bar 5/16" wide by 3/16" high. Look it over and see if this could work for you.
