Contractor from Orlando FL

Jan 6, 2024 11:59 am

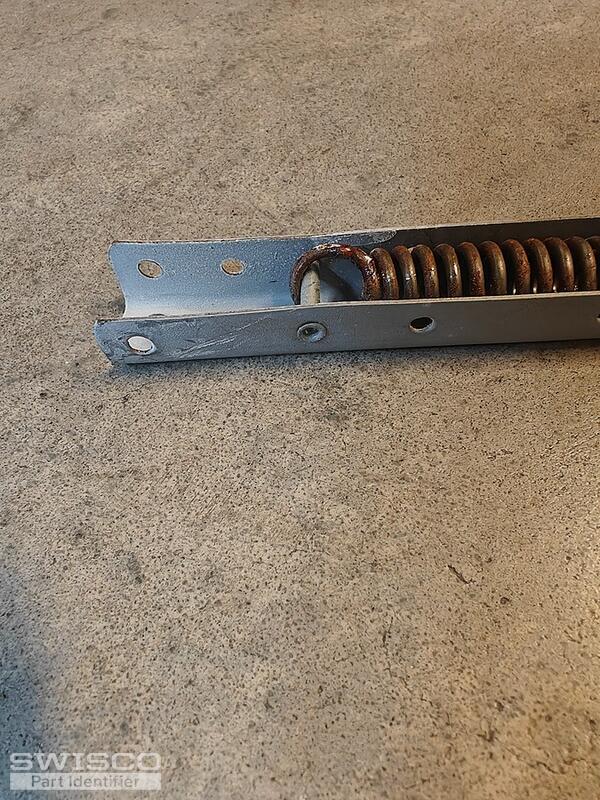

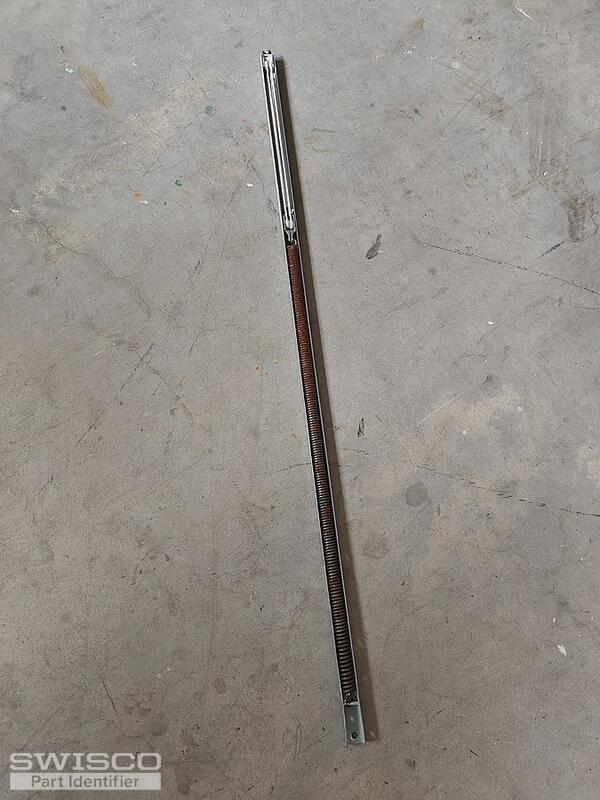

Hello, please, We're refurbishing these windows. We'll need all the railing parts and springs, etc.

4 user uploaded images

4 Replies

Emily from SWISCO

Jan 8, 2024 10:44 am

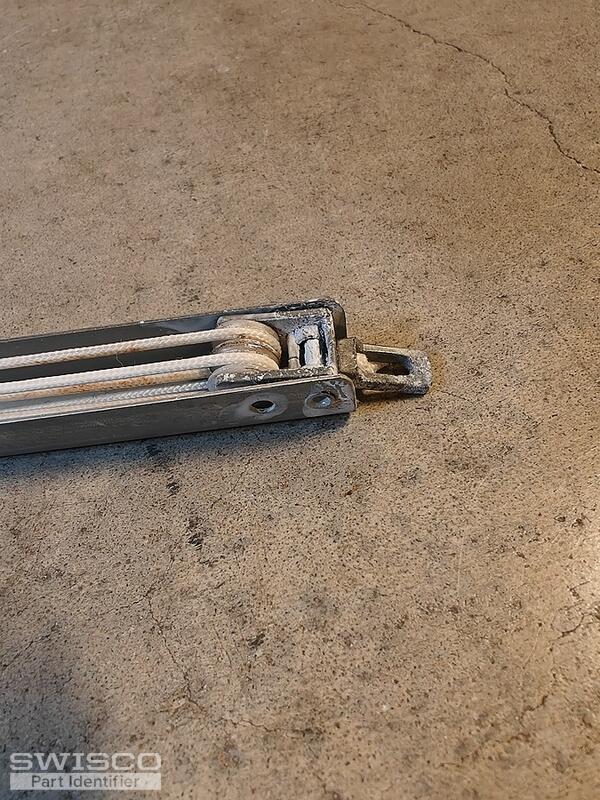

Hi there! I'm afraid we don't sell railing or frame parts. We should be able to help with the balance though. It's hard to make out the design of the clip at the bottom of the balance so I can't be certain but I am reminded of the 15-043. If this terminal clip is what you have then I recommend the Series 770. Take a look at the specifications and see what you think.

Contractor from Orlando FL

Jan 8, 2024 3:35 pm

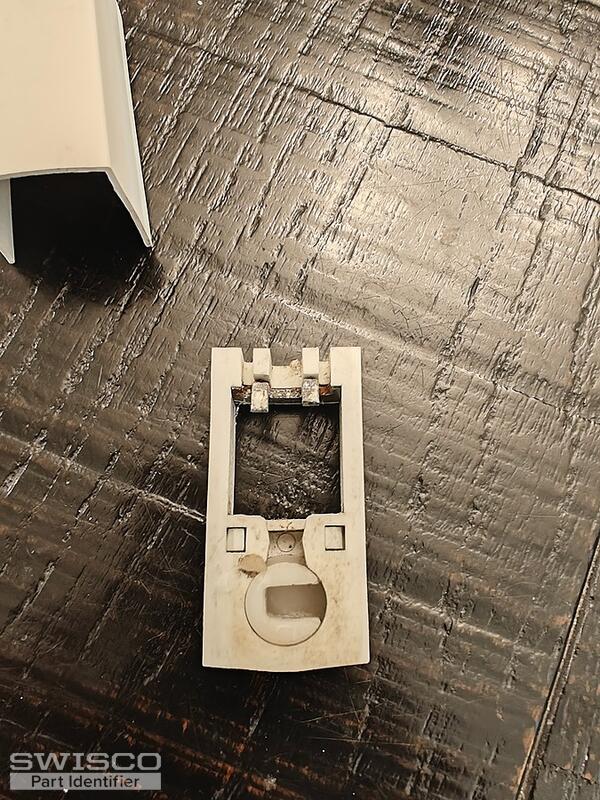

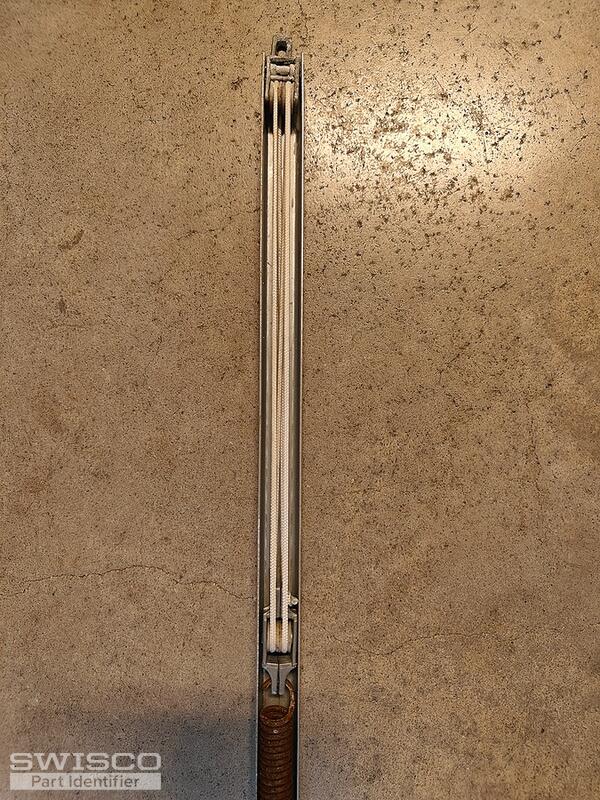

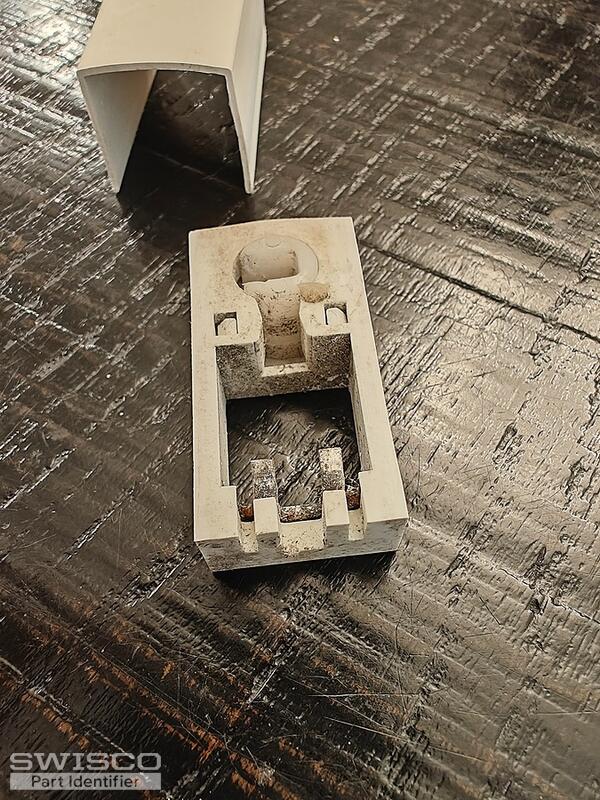

Hello, The terminal clip makes sense. I included more pictures. Included a picture from the shoe too. The balance is 28" long. What does the A, B C... type means?

5 user uploaded images

Emily from SWISCO

Jan 9, 2024 9:01 am

Thanks for the additional photos! We don't sell this exact pivot shoe but the 15-179 looks like it could be a comparable match. This measures 9/16" thick and 15/16" wide. Take a look and see how our specifications align with yours.

The lettered options represent the weight range they're calibrated to support. There should be a stamp printed on the metal channel that will indicate which option is needed. If not, you'll have to weigh the window sash on a scale to determine the appropriate option.
