Florida Impact Window Balance

A home owner from Coconut Creek says:
January 28, 2020
So from your other post from Tampa Florida, do I also need the S380-30 or S385-30? The Channel length is 30", the stamp is 2950 BSI.
Thumbnail of the uploaded file named Stamp.jpg
Thumbnail of the uploaded file named Bottom Size.jpg
Thumbnail of the uploaded file named Top Size.jpg

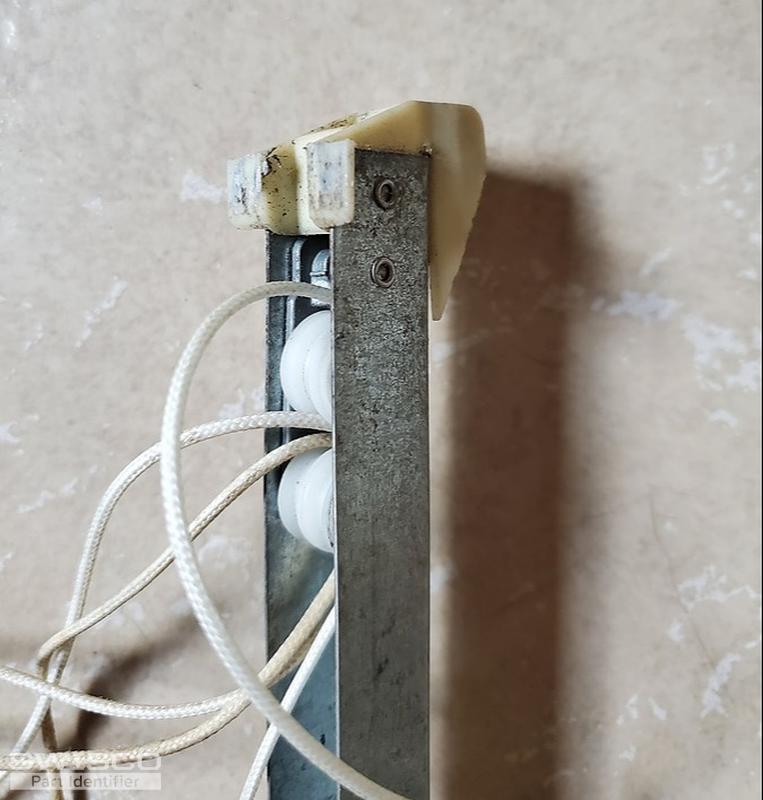

Thumbnail of the uploaded file named Bottom1.jpg

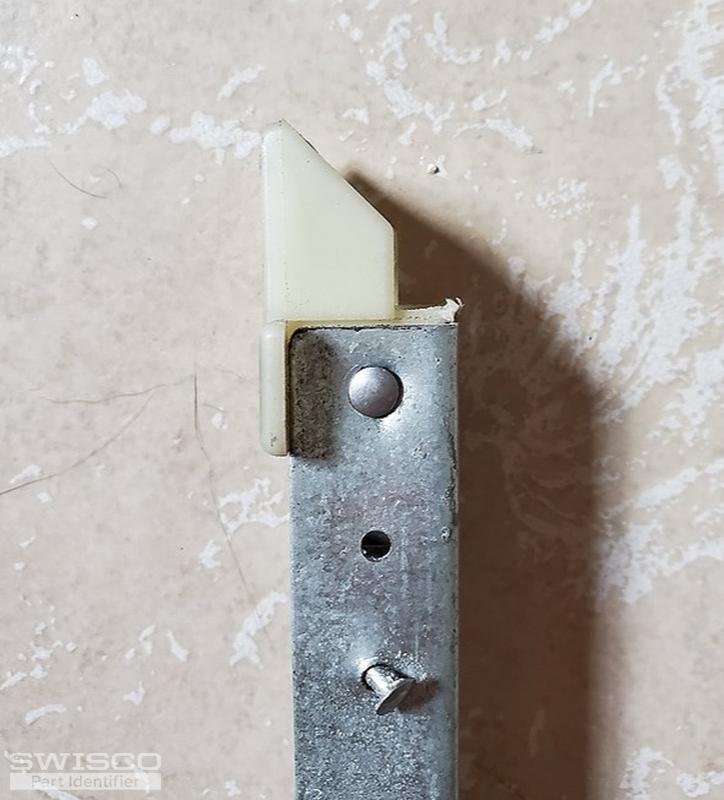

Thumbnail of the uploaded file named Top1.jpg
Profile picture of Bob
Bob from SWISCO responded:
January 29, 2020

Thanks for writing in. This certainly looks like either our S380-30 or S385-30. The only difference between these two balances is the 'depth' of the bottom nylon shoe. For the Series 380, this 'heel-to-toe' measurement is 1"; for the Series 385 this measurement is 1-3/32". It's hard to judge from a photo of measuring tape. Measure just below where the metal channel ends. In any event, you will need a stamp option of 2950.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
