Florida Most Famous Part Numbers - Patio sliding Door

Handy Person from Florida

Jun 13, 2020 4:28 pm

Like many others I have same part numbers :

nw1720-1 Taiwan
nw1720-2 Taiwan
nw1720-3 Taiwan

Mine appear to be Revison A and different than some other posted here with no speciication of the revision.

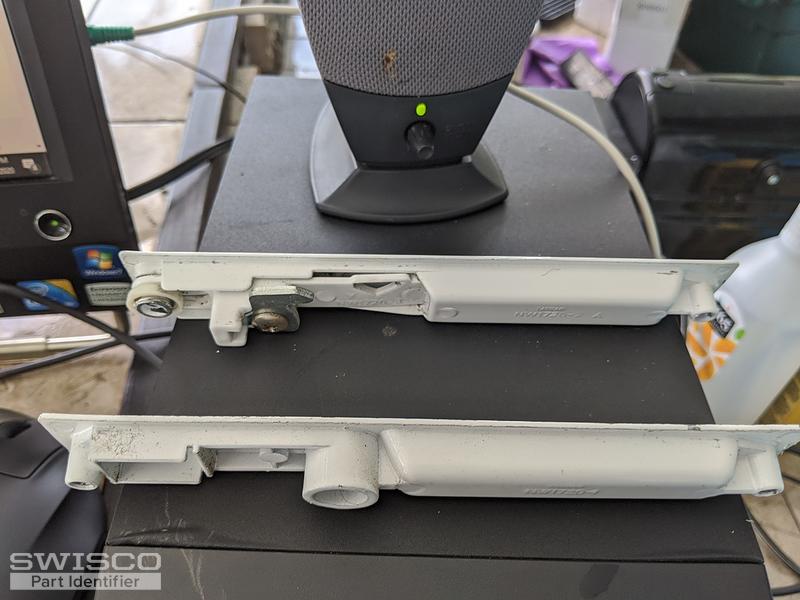

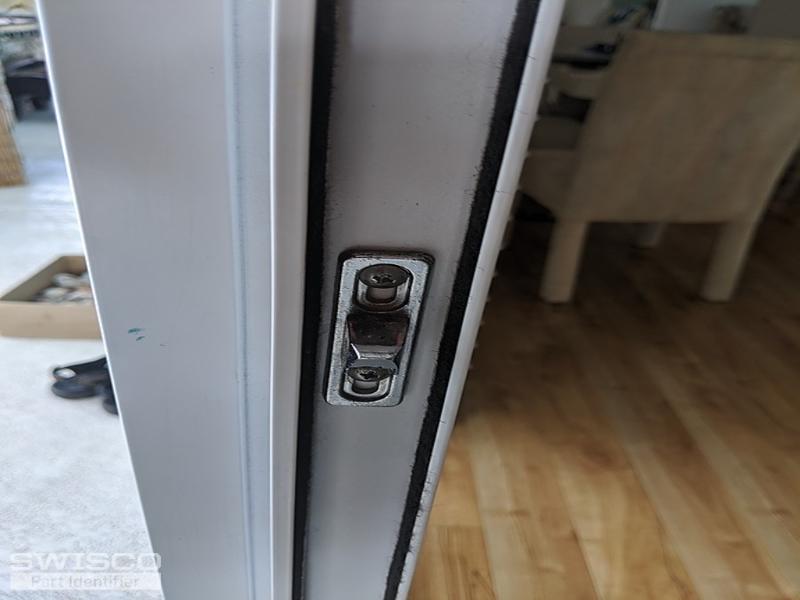

Center to Center ,the bolt holes are 167.6mm or 6.59inches apart. Attaching some pictures also.

Thanks!

5 user uploaded images

3 Replies

+ Add a Comment

Tom from SWISCO

Jun 17, 2020 11:32 am

EXPERT

This looks like a good match for our 82-002WK. Look it over and let me know if you agree!

Home Owner from Broward County, Florida

Apr 17, 2024 9:32 pm

It looks like 82-002WK is for doors up to 1-3/8" thick. My NW1720-2 is from a door that's 1-5/8" thick. The thinner locks can't be modified to fit a a thicker door. Can you recommend another part number for thicker doors?

Tom from SWISCO

Apr 18, 2024 11:52 am

EXPERT

We unfortunately don't sell a version of the 82-002WK that can work for thicker doors. It may still be usable, but you'd have to reuse a few components from your old set for it to function, namely the screws and key lock. You'd also have to find a way to pack out the latch hook so that it aligns with the hole in the door.

If those aren't feasible options for you, then we don't have any other alternative. I am sorry for the inconvenience.

+ Add a Comment
