Flow Away Steel door pivot pins

I am trying to fine the correct pins for a Flow Away ,steel ,mirrored ,bi fold closet door. The doors have two different

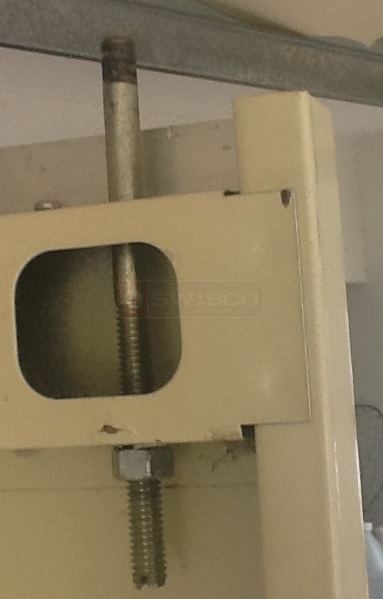

types of pin holders. Most of the doors that work have white plastic bushings at the top an bottom of the steel door with some kind of black plastic for adjusting. These seem fine. The ones that are giving us trouble are 5 1/2" long an pin size should fit in a 1/4" pin holder, they seem to be mounted in the door with a black plastic adjusting bracket that appears to be forced into

The top an bottom holes of the steel door brackets. I am attaching a picture for you of this pin.

I would like to know if the 51/2" pin is for a Flow Away door.

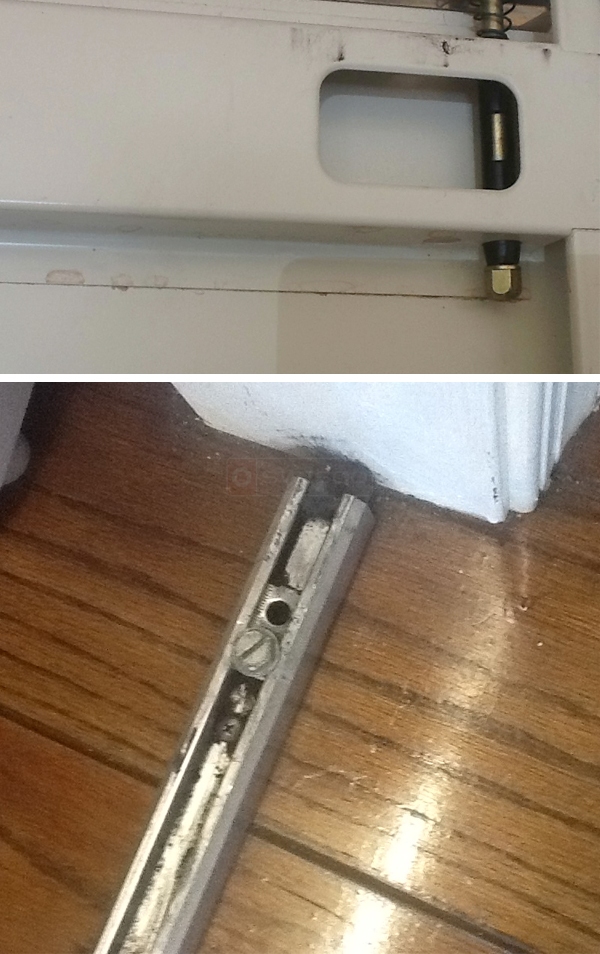

I am attaching pictures I took today of three of the doors of course the ones without pins are the ones in need of repair. They look like an assembly of different type of pins Used in past repairs. I would like to use original equipment if possible. Also took pictures of the track. an adjustment clips. Hope thiswillhelp in evaluating the ones needed.

Paul

Thanks for all your help. I have placed an order on the parts you suggested. Will I need any additional parts to mount to the doors, also does Swiss offer instruction on proper installation or any installation video's. Thanking you again for your time an efforts on my behalf.

William

Paul;

Thanks again your replay and the attached video took a load off my mind.

William

I will drop you a note advising how the job went upon completion. Many, Many thanks.

Paul

Sorry to say Paul I have not been able to install any of the pins you sent. All the granments are bushings are to large for the holes for them to enter. The bishing I removed from the doors ole ones are to small for your pins to go in. I sure would appreciate a call at 757816 8253.

William

Paul

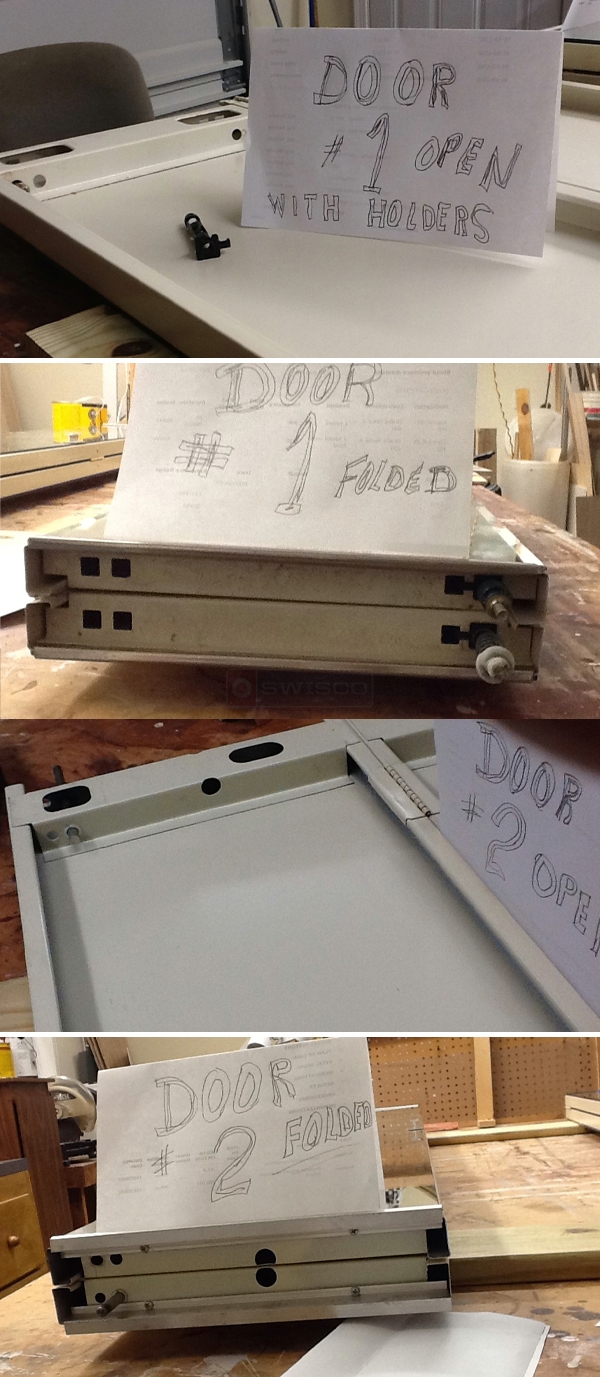

Could not get any of the parts to work on the two doors I am trying to repair. Would you please issue what ever authorization I need to return. The two doors thT I am attempting to repair are different. I have sent new pictures titled door one and door two: door one has 5/16" square at the bottom & top of the pin bracket above the squares are two 7/16" round holes. The black plastic pin holder is also shown in posture one. These holders also have the threads for adjusting up one down.

Picture # two has two different size holes for mounting the pins the first hole is 5/16 "an the other one beside it is 11/32" both top an bottom has the same size holes. All the plun adjustments bars are 1/4" except. I am not sure if these are original equipment or not. The three pins that are mounted are in the 11/32" holes. Can we find something that works in these holes.

I received the second order today and they will work fine on door number 1 (in the pictures I sent you labeled One and Two. Now I need top and bottom guide pins for door number two the one with round holes. The other pins have no way to attach since they are designed for the square holed door number 1. If I could get the bushings that hold the pins in, that fit these two holes One hole is 5/16' an one in 11/32". I will call you tomorrow an see what we can work out if the door number two pins are available an will fit through these holes to hold the springs and pins in place. I will need a dozen of each size, an a top and bottom guide.
