Folding closet door. Bifold

A quick learner from Allentown,pa says:
Need to replace the hard ware for my closet door. The track is 24 inches wide. There are 2 door that are hinged together..

Can you please recommend replacement parts.
Thumbnail of the uploaded file named B521EB63-F001-415B-9625-153034AC3D30.jpeg
Thumbnail of the uploaded file named 74A6415A-B9CA-4AEB-88F4-B637993E972A.jpeg
Thumbnail of the uploaded file named 1E7CE0F5-3D1E-4894-B3DE-2D8675DE343C.jpeg
Thumbnail of the uploaded file named E1A837F8-59A9-4390-8F90-7E2BE7F2E824.jpeg
Thumbnail of the uploaded file named 8B23492A-9F75-4282-903D-7AFCF3A1A6B9.jpeg
Profile picture of Tom
Tom from SWISCO responded:

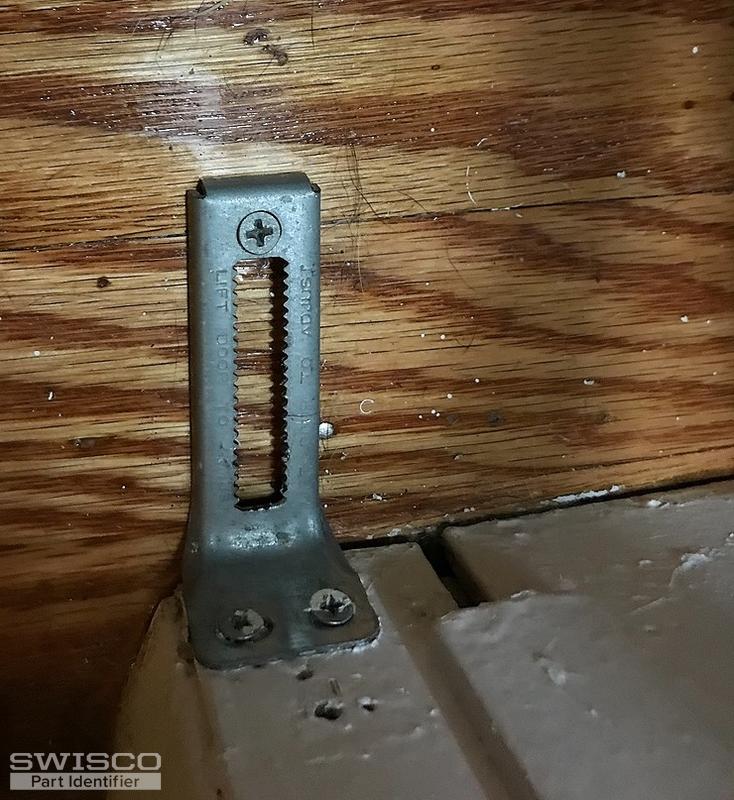

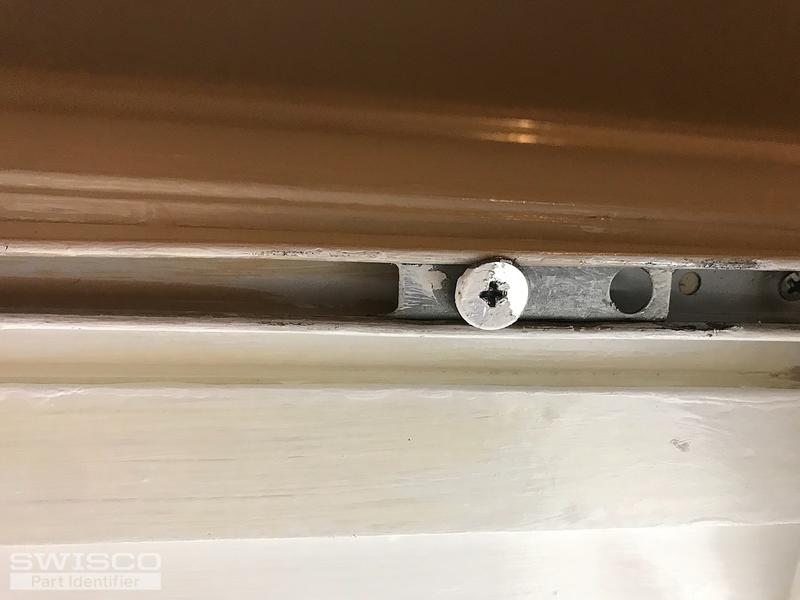

Thanks for contacting us. I think we can help, yes. Going in the order of appearance in your photos, I recommend looking at our 23-306 top pivot bracket, 23-119 adjustable bottom pivot, and 23-301 bottom pivot bracket. In your first photo, I also see a little bit of a pivot that might match our 23-122, but I can't see enough of it to be sure.

If you need the track, though, then that's a different story. The tracks you have now are no longer made. You would need a whole new kit, like our 23-504, to replace everything you have now. For simplicity's sake, this may be the better option anyway, but it's up to you.

You'll note that the 23-504 track is 3' long. We don't have a 2' long version but ours can be cut down with a hacksaw.

Let me know if you have any questions!
