Folding crank for Wabash Vistaguard or Vistarama

A home owner from Carleton, Michigan says:
Hello. New window treatments have us searching for a folding crank to work with our old mechanism. (We can't even figure out how to remove the existing mechanism as there are no exterior set screws and the unit appears built in to the window.) The mechanism still works good.

Any suggestions will be appreciated.

Thanks!
Laurie
Thumbnail of the uploaded file named Exterior.jpg
Thumbnail of the uploaded file named Interior.jpg
Thumbnail of the uploaded file named Mech.jpg

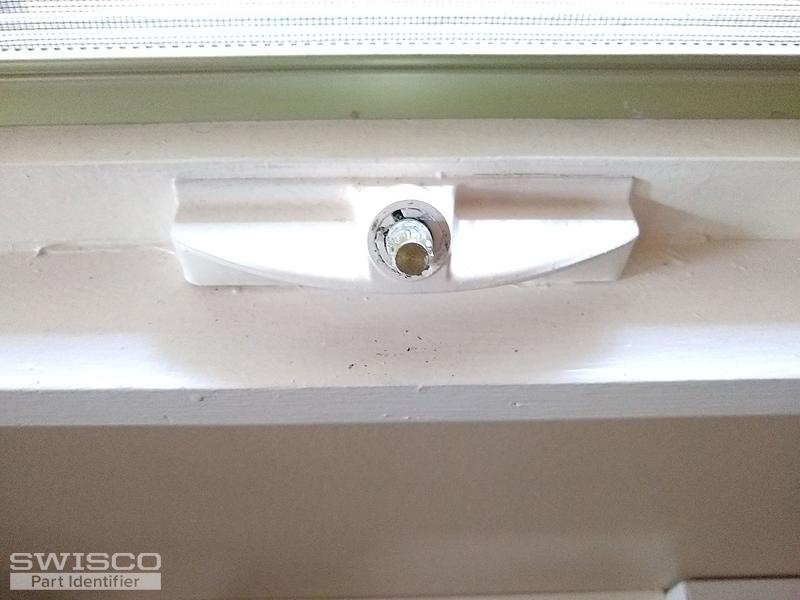

Thumbnail of the uploaded file named Mech2.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. Confirm that the bore diameter is 11/32". If so, our 39-114L should work for you.

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Thanks for sending your sample in to us. After reviewing your old handle, I am confident that our 39-114L handle will work for you. Yours has the same 11/32" spline that Bob mentioned back in September.

If you wanted a folding version, see our 39-205.
