For vertical sliding window

Quick Learner from Californa

Apr 23, 2018 10:12 pm

I have a couple of vertically sliding windows (each is a single sash). One of those does not stay up. The only label I could find says
MFGR: AAP-011-3
Series: 3700/3750

From the above, I couldn't figure the manufacturer. I am trying to know what part do I need to fix it. Most likely, there is a some kind channel on the two sides of the sash. Any help will be appreciated. Thanks.

5 Replies

Tom from SWISCO

Apr 24, 2018 1:13 pm

Hi there- thanks for posting!

You are correct. It sounds like you need to replace your balances. If you could remove the balances from the side of the window and take some photos that would be great. Please include the stamp and nylon attachments on either end of the metal channel in your photos.

Here is a video that should guide you in how to remove the balances from the window.

I hope this helps!

Quick Learner from San jose

Apr 24, 2018 2:32 pm

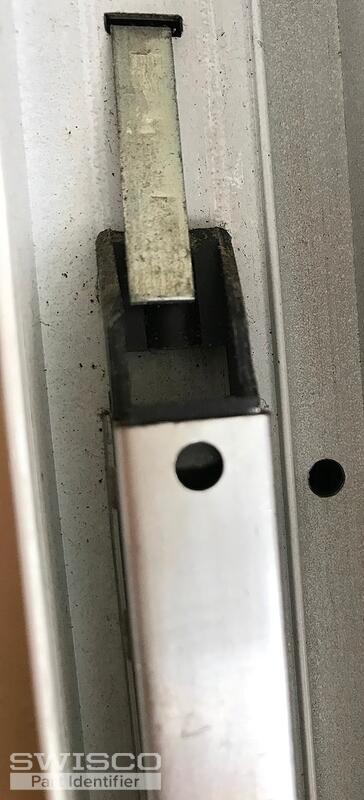

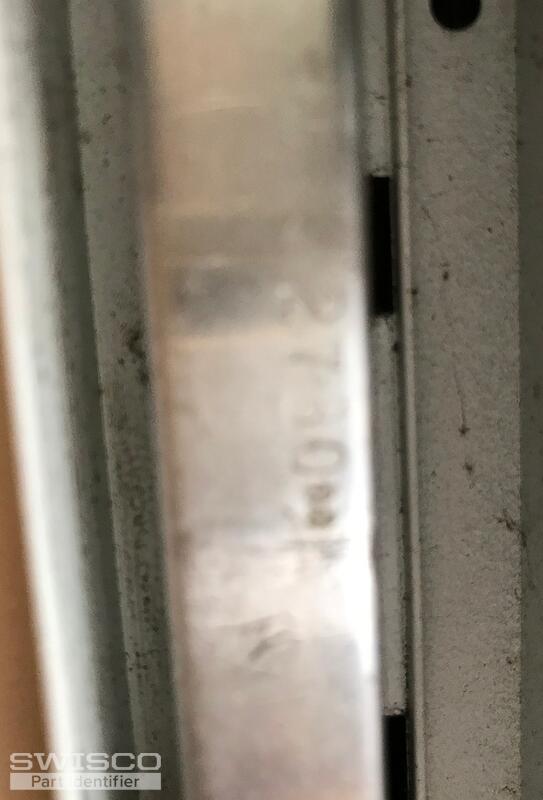

Attached are the pictures from the balance from the other window next to it (and working fine). It has a number 2730 on it. The length seems to be 28 inches and the width is .5 inch.

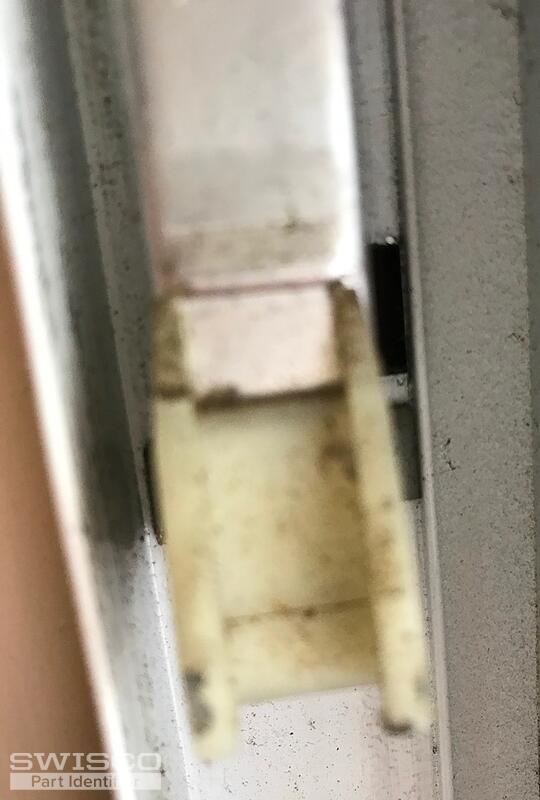

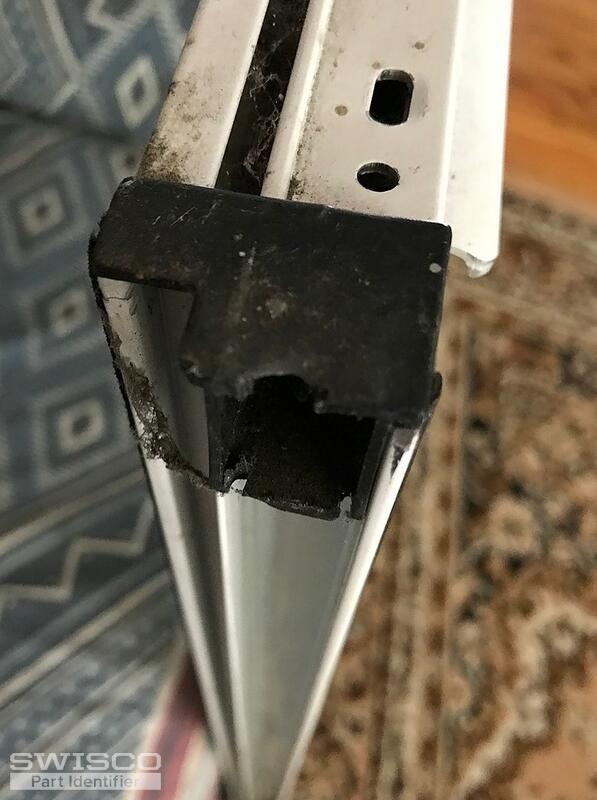

Attached is the picture of the sash as well, which seems to have a broken plastic piece at the end (called sash cam I think).

I am still trying to figure hr manufacturer name from the AAMA label though.

4 user uploaded images

Paul from SWISCO

Apr 27, 2018 11:48 am

Thanks for providing photos. You would need to go with either our Series 390 or Series 351 channel balance based on the depth of your bottom balance.

The sash cam you are referring to is known in the industry as a top sash guide. As for what it is, we are not 100% sure. I have a part in mind, but before I recommend it, we'd like to have you remove an undamaged version of the part and show us a photo of it from the front, and the side. Once we have that, we can get back to you with more information.

Quick Learner from Torrance, CA

Oct 1, 2024 3:04 pm

To the original poster from San Jose - I am curious if you ever figured out which sash cams these are. I have the same ones and I've been searching for them for literally years. I have the same manufacturer code of AAP-011-1 from the front windows. Even if you've found a workaround, I'd be open to it.
