From Pella Storm Triple Track, sliding glass - Pella Door #: 90153.271090317 2 panes, both need weatherstripping

Question

1 pane = 66 inches weatherstripping x 2 = 132 in total length
Pile weatherstripping is falling apart
Measured
- Base opening width = .120
- base weatherstripping width approx. .144 in, likely short due to base deterioration from sun
- Height of pile approx. .169 in.

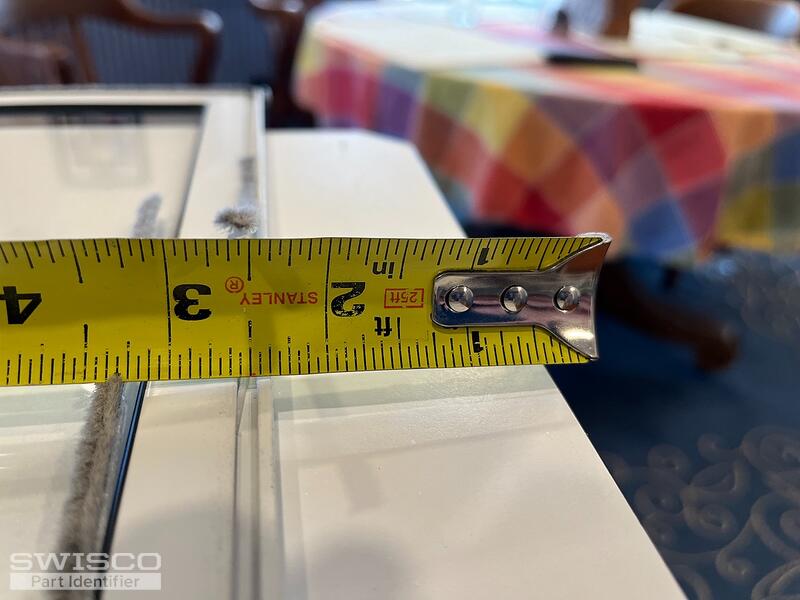

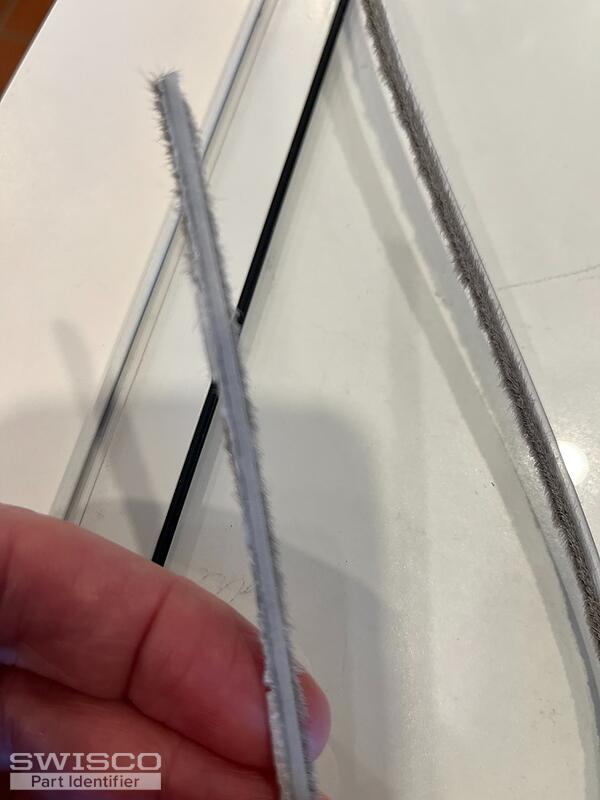

- Pictures attached\

Not sure what part I need.

Also any tutorials on how to remove the frame would be appreciated. No screws, no indents to drill out.......Hmmmm.
Thanks for your help.

G Johnson

Jasmine · Accepted Answer

Hello,

Thanks for reaching out! Given the measurements for the base and height of your pile, I believe our closest replacement matches would be either the our 58-001 White Pile Weatherstrip and 58-021 Gray Pile Weatherstrip. To determine which of these might be the best fit, be sure to double check the dimensions.

Dimensions for 58-001 white wool pile

Profile view of 58-021
