From a prism screen

A handy person from Rochester Mn says:

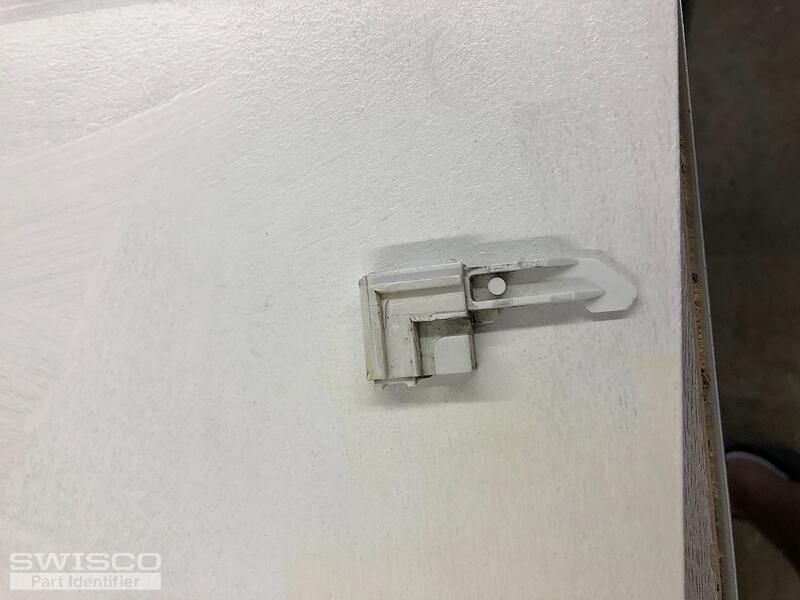

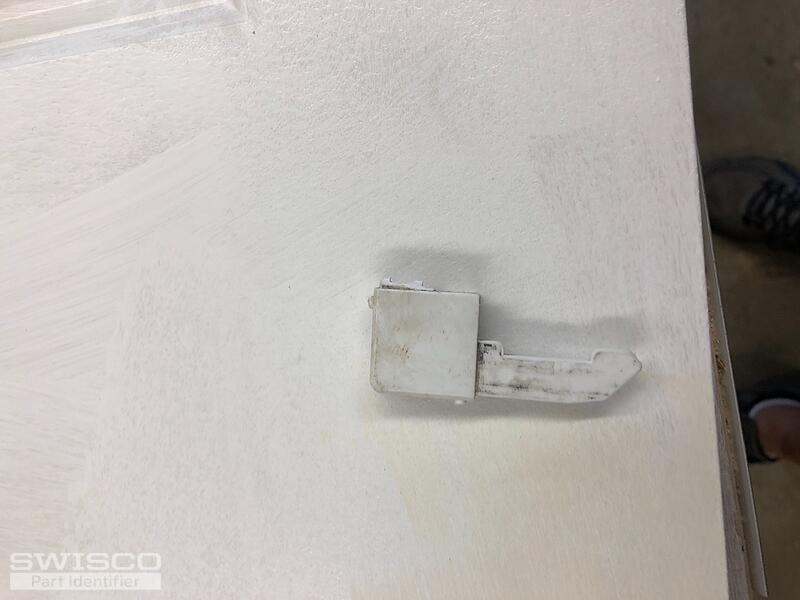

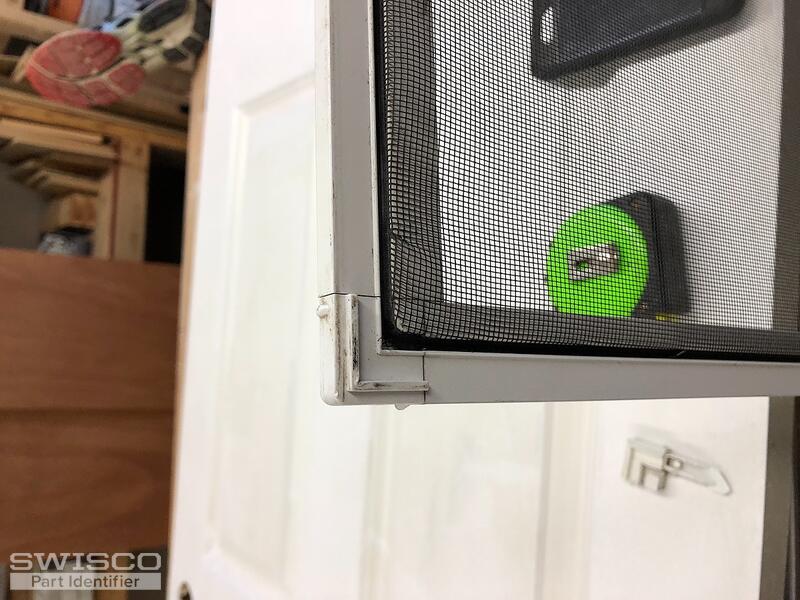

Look for screen corners to match

Thickness 3/16

1"x1" square corner with a spline insert

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named 58B7F8EE-619A-4948-83CB-7DB3F8267BDA.jpeg
Thumbnail of the uploaded file named B754B665-6F5E-463B-8798-FFA66EFA4543.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I'm afraid that your corner key is no longer available. Take a look at our 95-186 to see if the dimensions match up to yours.

Looking at your original corner key, it appears that yours has a "stop" on it. You will need to install a small screw in the corner to serve the same function, assuming our 95-186 is the same size. Sorry we couldn't get you a better match!
