Full Sliding Door Part Replacement

Professional from Florida

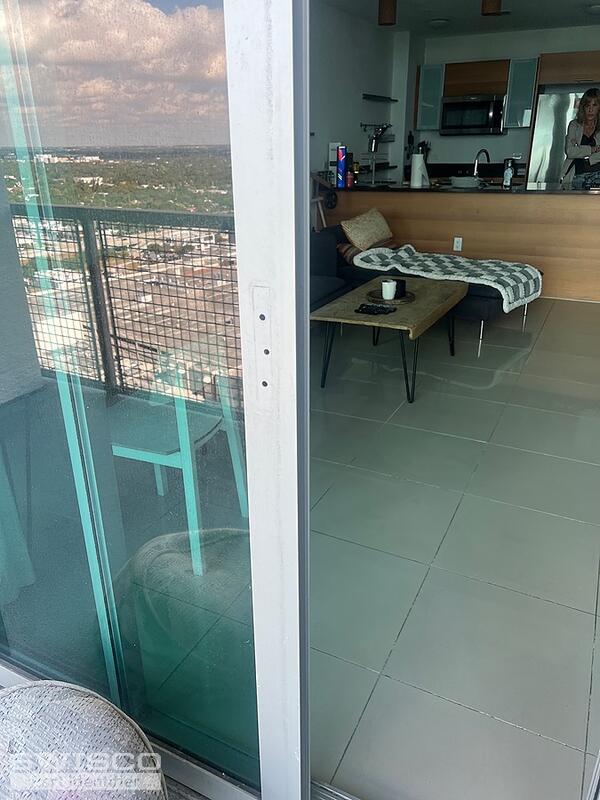

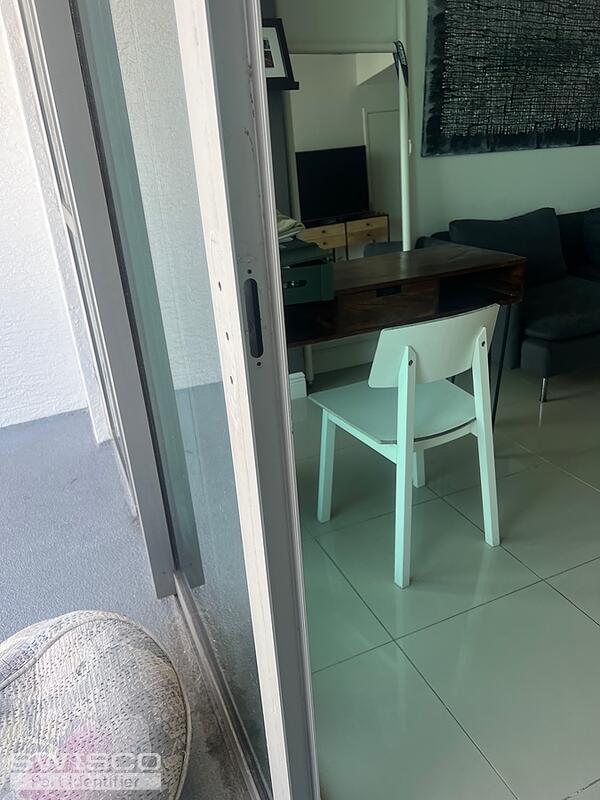

Hi my name is Gabriel, IM a locksmith in Florida. I have a client thats missing hardware on a balcony and hired me to replace it. From what she described, the handles were white and the inside handle had a white extended lever stick that when you slide the lever up or down it will lock or unlock. Please help thanks
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We can't be sure of what you need without seeing the original hardware. With that being said, the door cutout and hole spacing looks like it may accommodate the 82-030 handle set and 82-218 mortise lock. Review the specifications below and see what you think. Thanks for posting!

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030

Profile view of 82-218
Profile view of 82-218

Opposite side view 82-218
Opposite side view 82-218
