Emily from SWISCO responded:
August 17, 2022

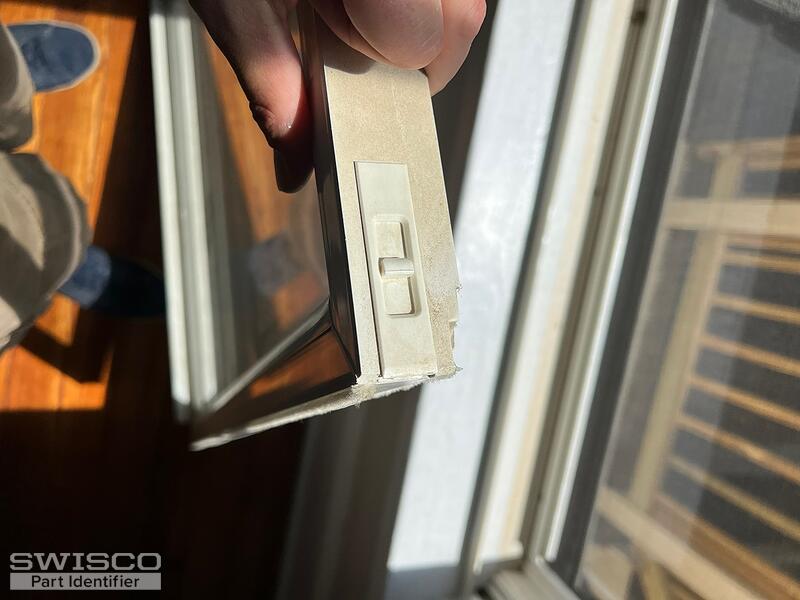

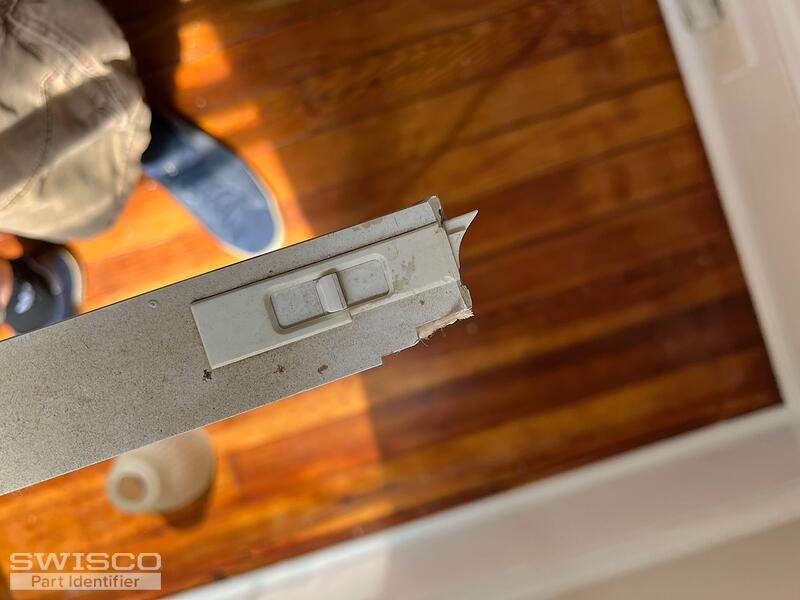

Hello! I recommend having a look at our 26-243 and 26-244 tilt latches to see if our dimensions match up for what you need. I suspect you may have our Series 770 but I'd like to see a photo of the clip at the end of the pulley cord to confirm. We'd be happy to identify your pivot bar but we'd need to see an undamaged one removed from the sash to narrow down your options. |
|
|
Emily from SWISCO responded:
August 19, 2022

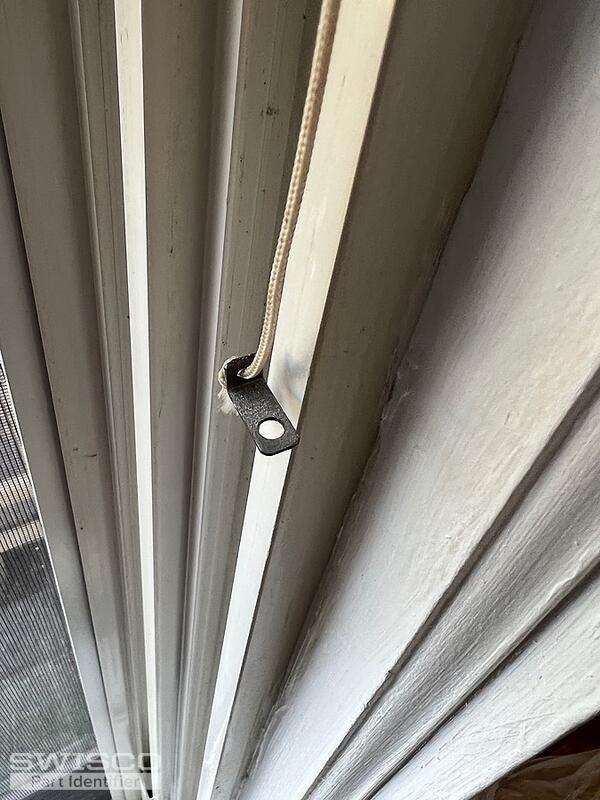

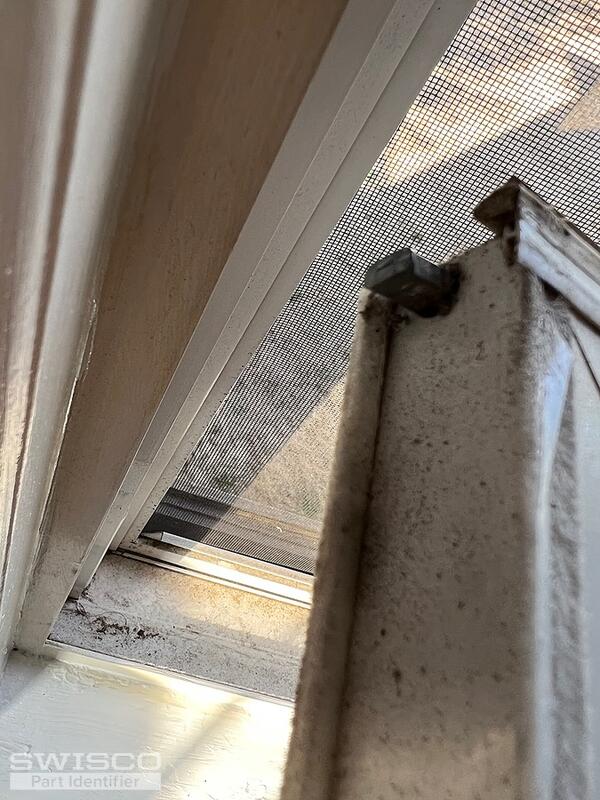

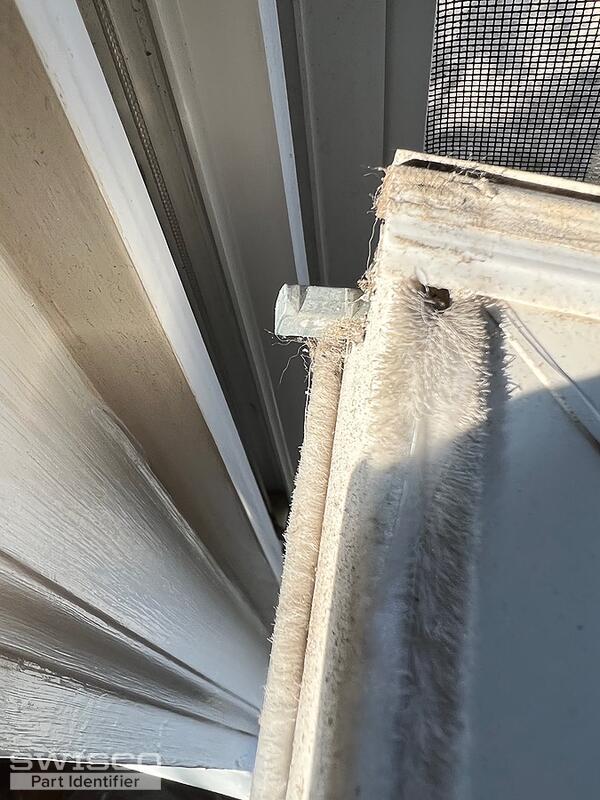

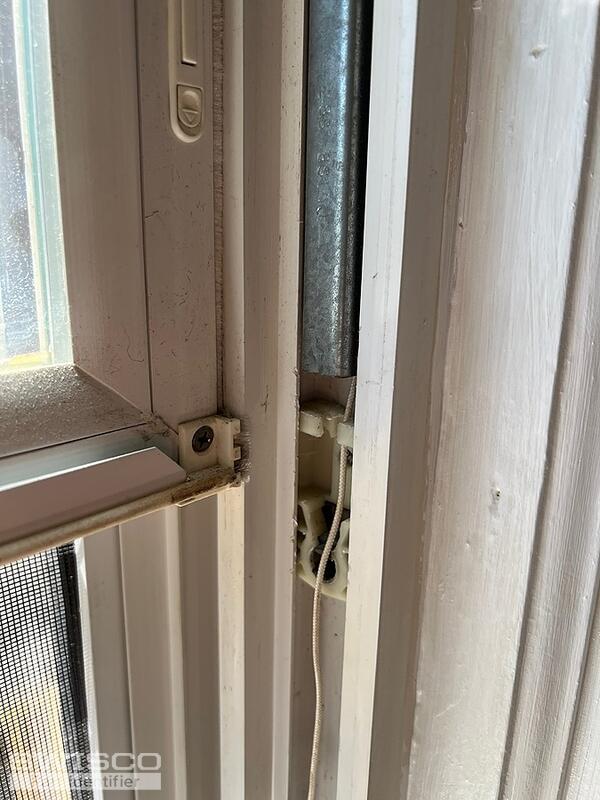

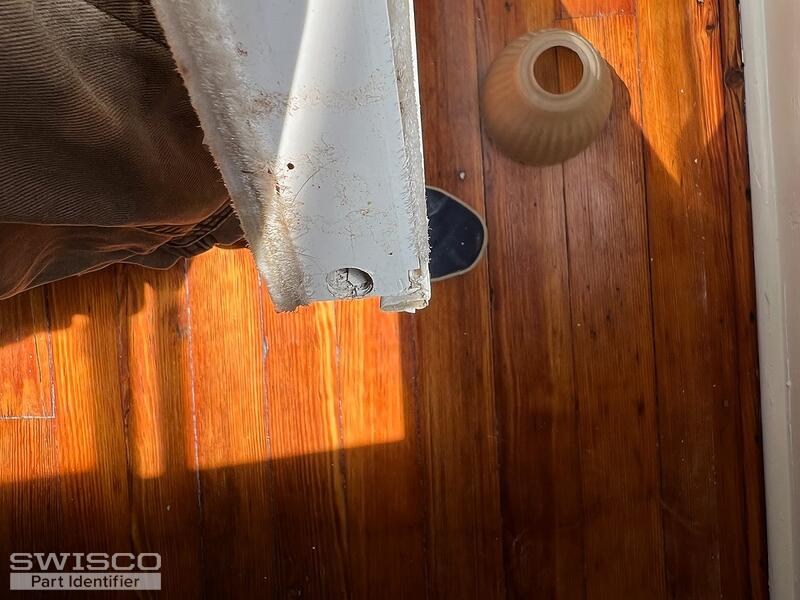

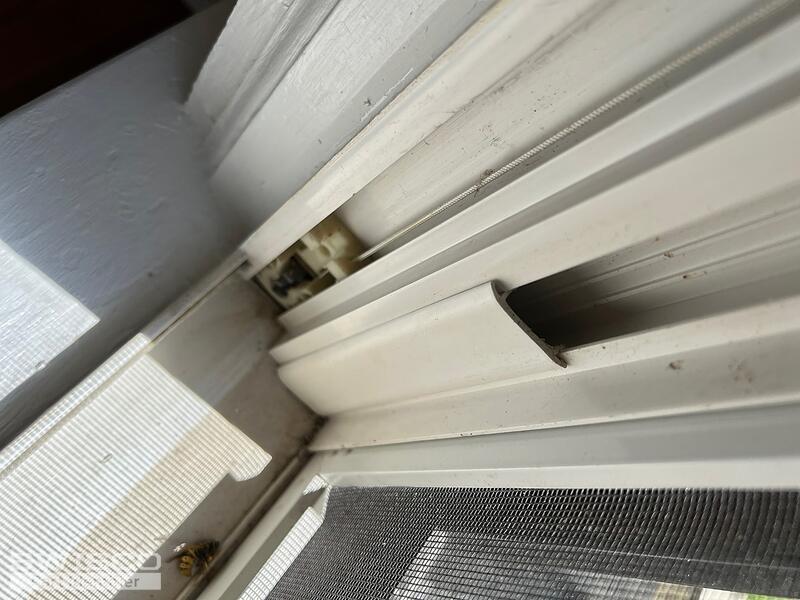

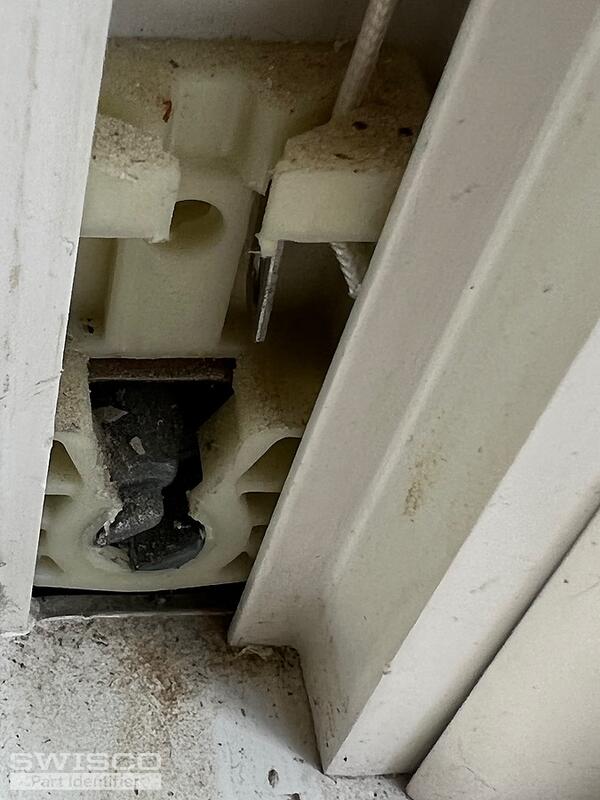

Thank you! This setup is a bit strange. Your balance uses a 19-043 clip to connect to the pivot shoe but this clip is designed to be screwed in at the top of the window track. Either way, our Series 770 should work fine as a replacement. There should also be a stamp on the metal channel that will indicate what strength option you'll need. You can re-use the pivot shoe if it's in working order. I can't be certain with your pivot bar still installed but you can start by taking a look at our 26-360 and 26-415 . You'll have to remove yours and compare the specifications to see if one of them matches up. |
