Double wheel roller with nylon wheel

Home Owner from California

Feb 19, 2018 11:04 am

I need your help...........

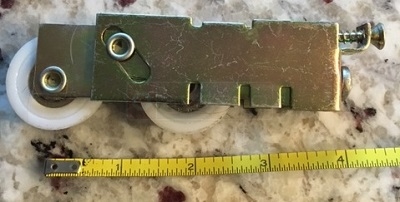

I am in California and am looking for replacements (a total of eight (8)) of the part attached.
I would also like to know if there is a replacement that might have a different composition of the wheel itself.

Let me know if you need any other dimensions, etc. to better identify the part.

Thanks
Dennis

6 Replies

Tom from SWISCO

Feb 21, 2018 2:51 pm

Hey, Dennis. I can't say for sure what would work best without knowing your roller's dimensions, but start with our 81-030. This looks similar in design, and has steel wheels. Carefully look over our dimensions and let me know what you think.

Professional from CA

Feb 21, 2018 4:09 pm

Looks more like 81-056. See the tab on the right side.

Home Owner from California

Mar 4, 2018 7:38 pm

My dimensions are identical to the 81-056 suggested by the Professional in CA. My wheels are 1-1/4 inch in diameter.

Not to be a total pain.
Is there another composite for the wheel itself-hard rubber?
Believe it or not these are on some very heavy duty mirrored wardrobe doors in our guest rooms. They are upstairs and it would be nice if we did not hear them open/close every time they move.

Tom from SWISCO

Mar 5, 2018 9:17 am

I'm afraid the manufacturer does not make these wheels in any other material at this time. That said, if a local hardware store has wheels of the same size in that material, you could conceivably swap them out.

Professional from CA

Mar 5, 2018 2:26 pm

If the 1-1/2" height isn't too much, I'd use 81-160 or 81-175.
The tab can easily be bent as needed.
I would even use 23-043 or 23-232 before I'd put metal wheels on it.
