GA window sash balances

Quick Learner from Indianapolis

May 12, 2018 2:22 pm

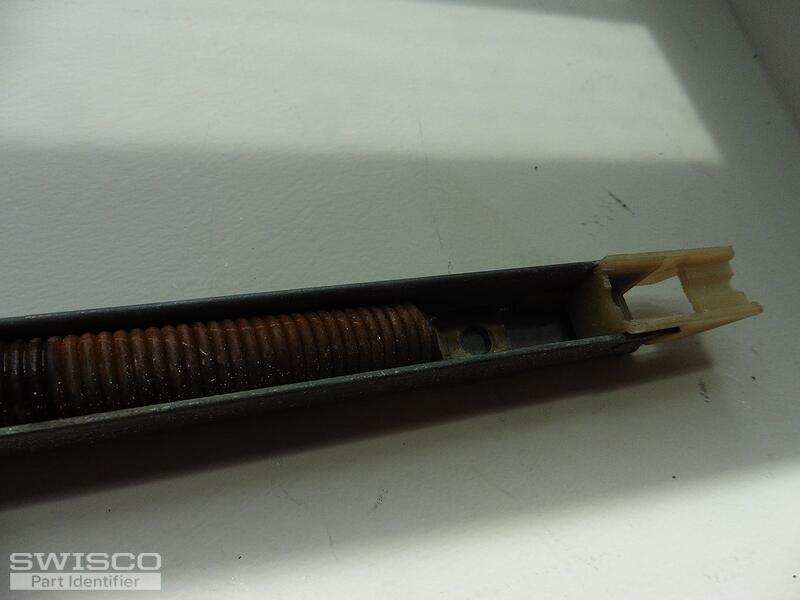

I have two windows needing replacement parts. The first one measures approx 29" long (metal to metal end) and has the following imprints: 28 1/4 3 B J and i would need one pair

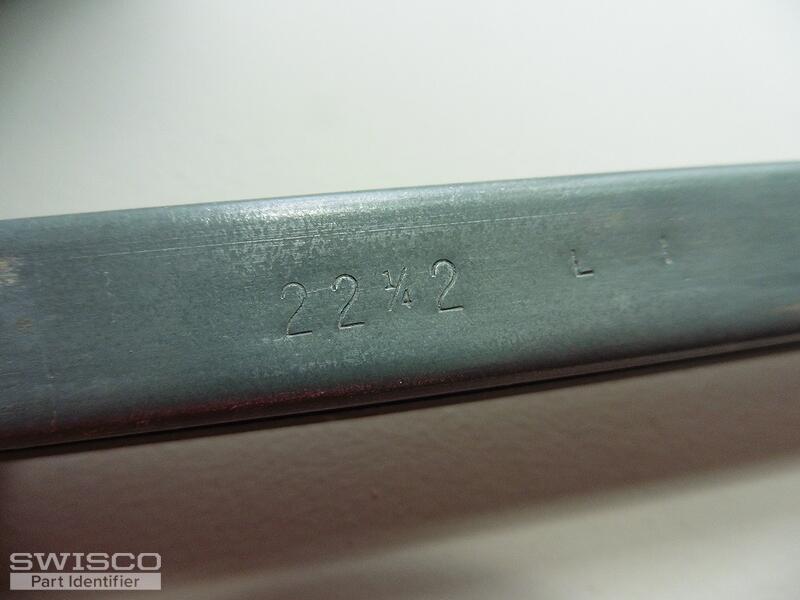

The second window sash balance has the imprint 22 1/4 2 L1 and it measures 23 1/4" long from metal end to metal end.

The width of the each "tube" is 1/2"
I am a Realtor and need these parts for a home I am selling for a client. Thank you so much!

5 user uploaded images

6 Replies

Tom from SWISCO

May 17, 2018 10:23 am

GA has been known to use our Series 351 balance system. However, because of that length, yours will have to be specially made. I would confirm that your balances are 28-1/4" and 22-1/4" long. If they are, please tell me how many of each you need and we will send you a special order link and price quote for each.

Quick Learner from Indianapolis

May 17, 2018 11:28 am

The measurement for the first is 29 inches and I need 2. Other balance measures 23-1/4 and I need 2 of that also.

Tom from SWISCO

May 22, 2018 2:30 pm

Great, thank you! I'll email you a special order link for 2 of the 23-1/4" right now. If your other balances are just 29" long, then that doesn't have to be a special order. Just see our S351-29.

from Indianapolis

May 31, 2018 2:50 pm

I ordered the S351-29 and the S351-21 and both were a perfect fit!! Having said that, i now need a small piece of plastic at the very top of the windows to hold these parts in. I have attached the photo and the measurements of the part needed... Can you please help me identify the necessary part?? thank you very much.

Tom from SWISCO

Jun 5, 2018 9:03 am

Great! I'm glad to hear they worked. As for this piece of plastic, it's known as a top sash guide. I actually recognize this one. We did carry it at one time, but it was discontinued years ago. According to our records, the 18-066 could work as a substitute, even though it has a slightly different style. Look it over and let me know what you think.
