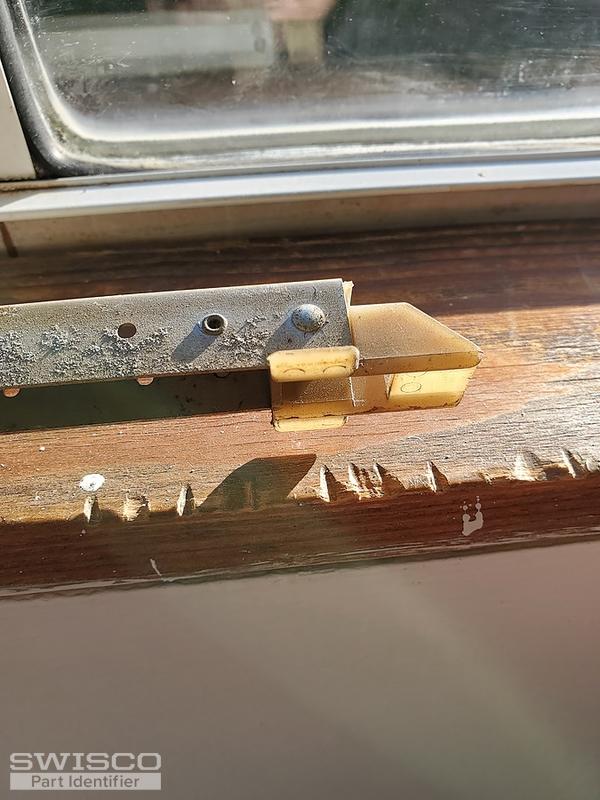

This is a gapco window.

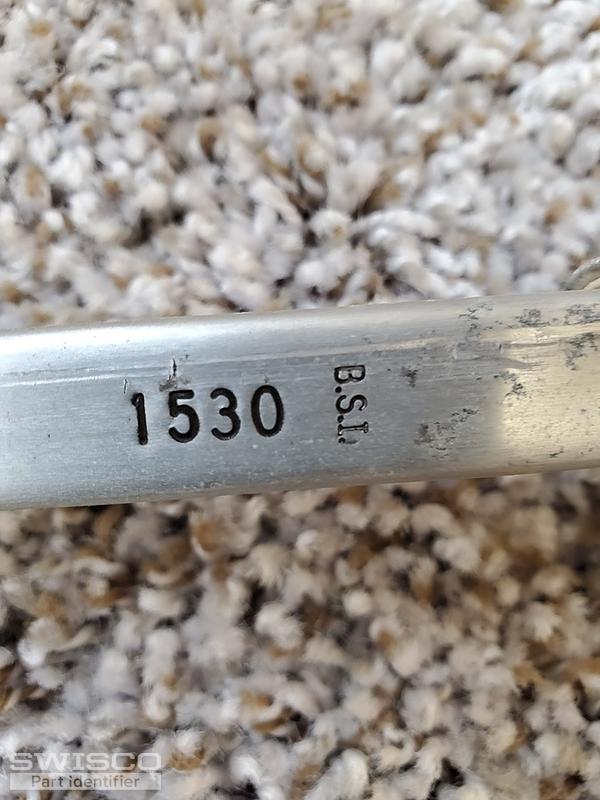

Part number stamped on the balance is 1530

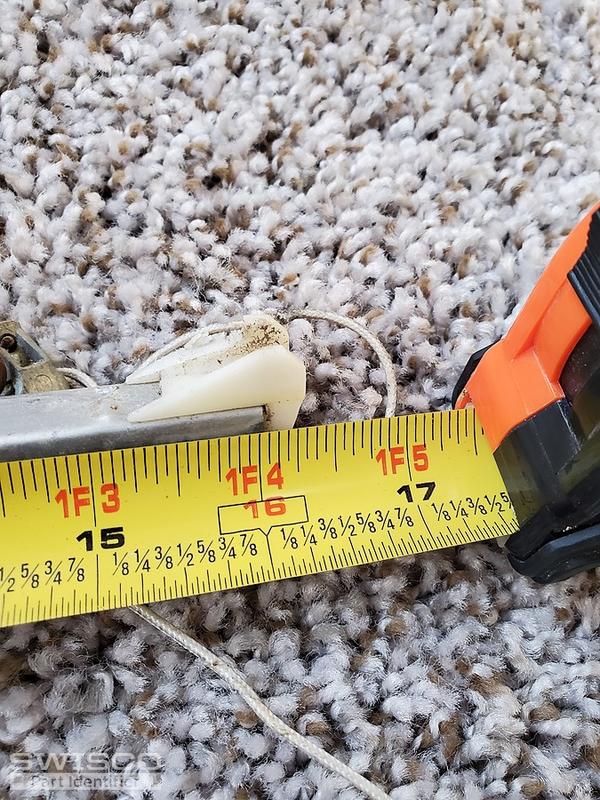

It is 15"
Gapco window balance
Quick Learner from Frankfort, IL
Nov 18, 2020 5:07 pm
5 user uploaded images
3 Replies
Quick Learner from Frankfort, IL
Nov 18, 2020 5:13 pm

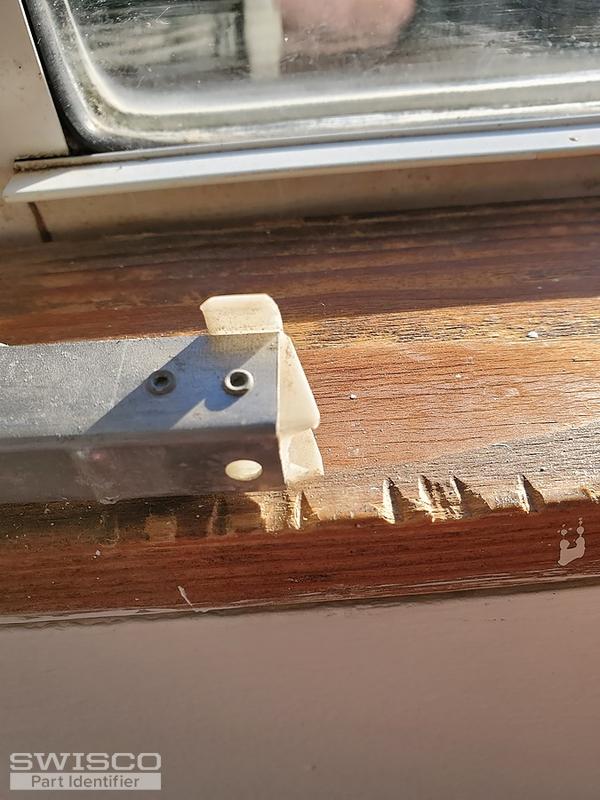

This is 1/2" CHANNEL
Gapco brand window.

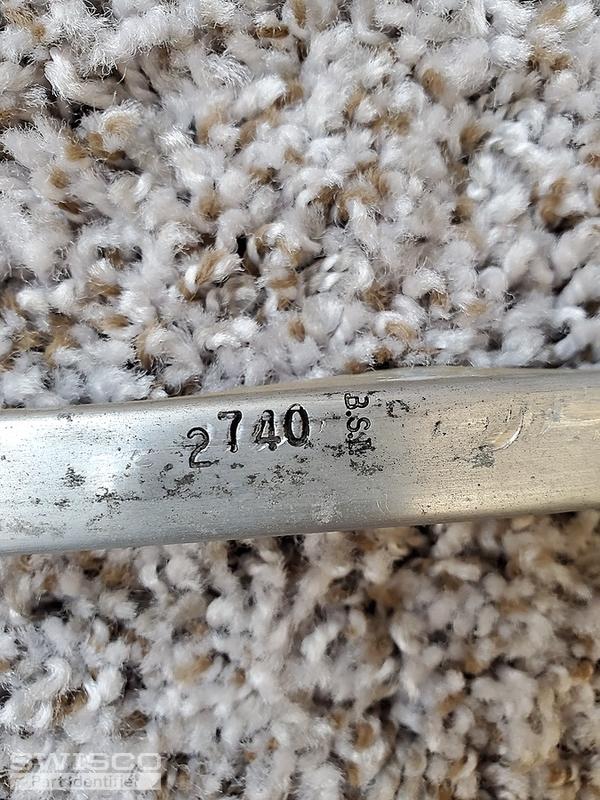

2740 is stamped on it.
Non tilt.

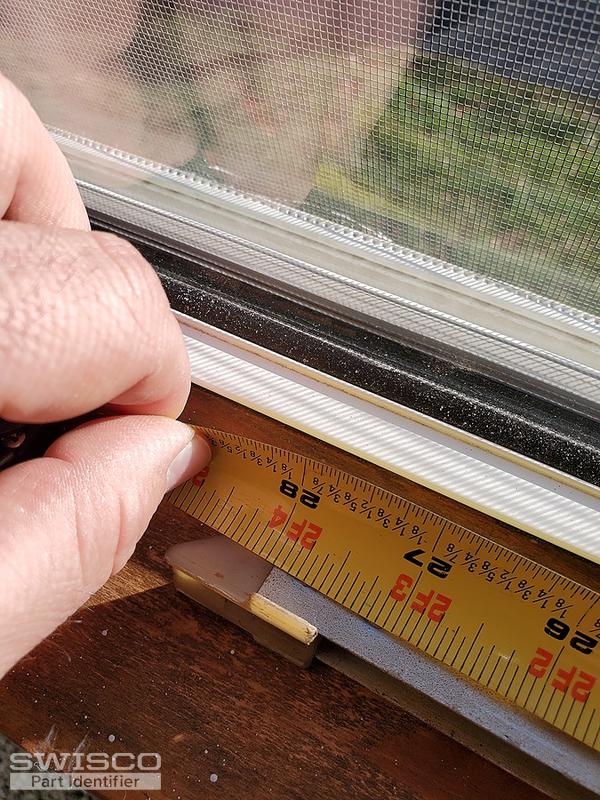

28"
Gapco brand window.
2740 is stamped on it.
Non tilt.
28"
4 user uploaded images
Casey from SWISCO
Nov 20, 2020 2:59 pm
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure an undamaged bottom attachment from both balances as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1530 and 2740 spring strength options for your respective replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
