Getting replacement balances

A quick learner from Monroe WA says:
August 16, 2023
The left side balance on my 24" vertical sliding window has broken, and I'd like to replace both sides.

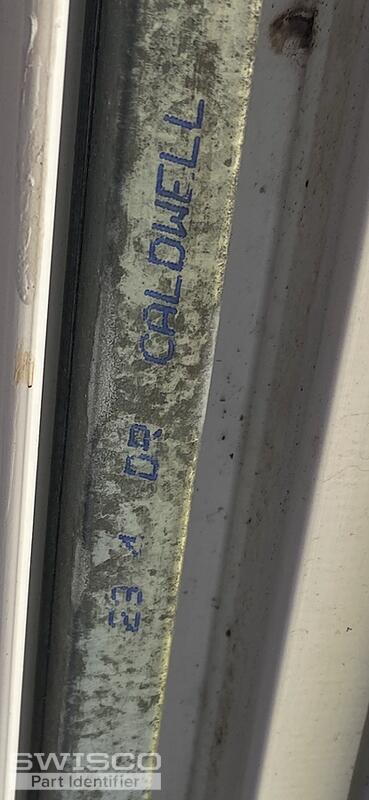

Stamp on the balance is
23 4. D2
And is 1/2" wide

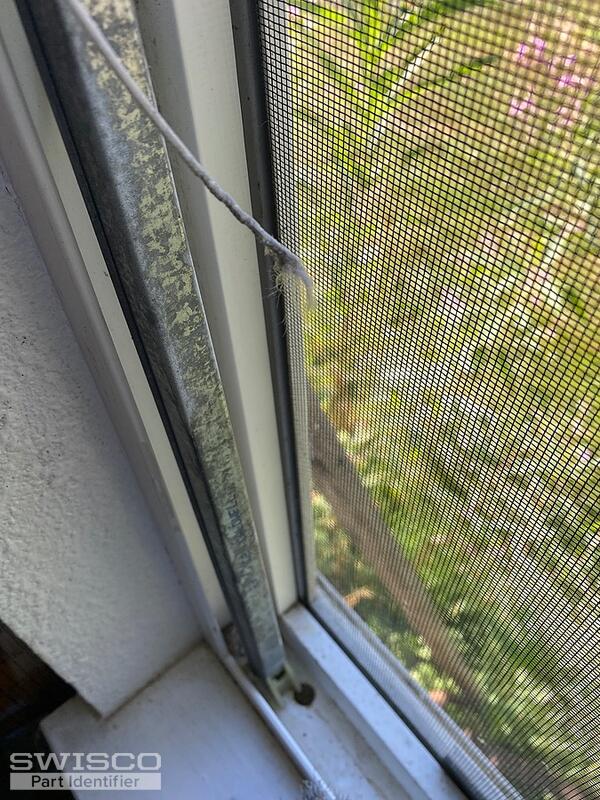

I can see a frayed/broken cord coming out from behind it from above.

I'm currently reading up on your website to be ready to do this.
Thumbnail of the uploaded file named IMG_0257.jpeg
Thumbnail of the uploaded file named IMG_0256.jpeg
Thumbnail of the uploaded file named IMG_0258.png
A quick learner from Monroe WA says:
August 17, 2023

Got the unbroken side out easily with your excellent instructions.

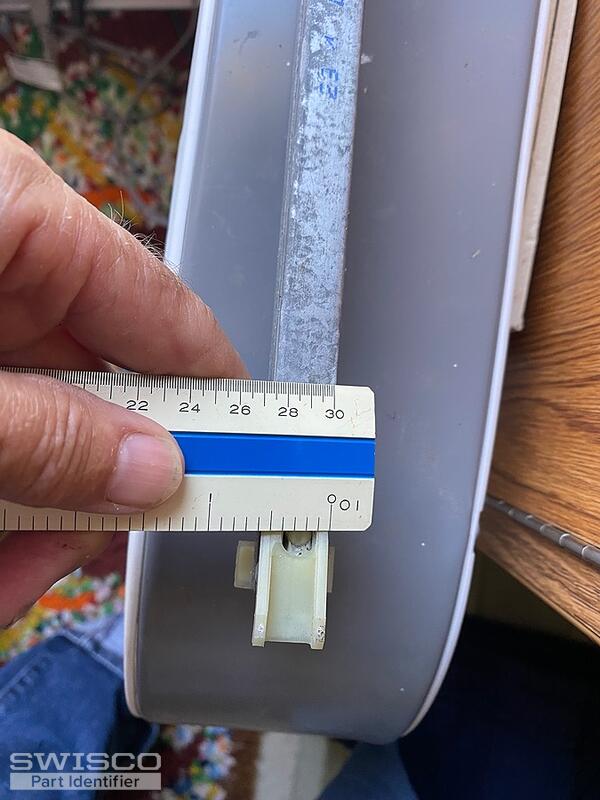

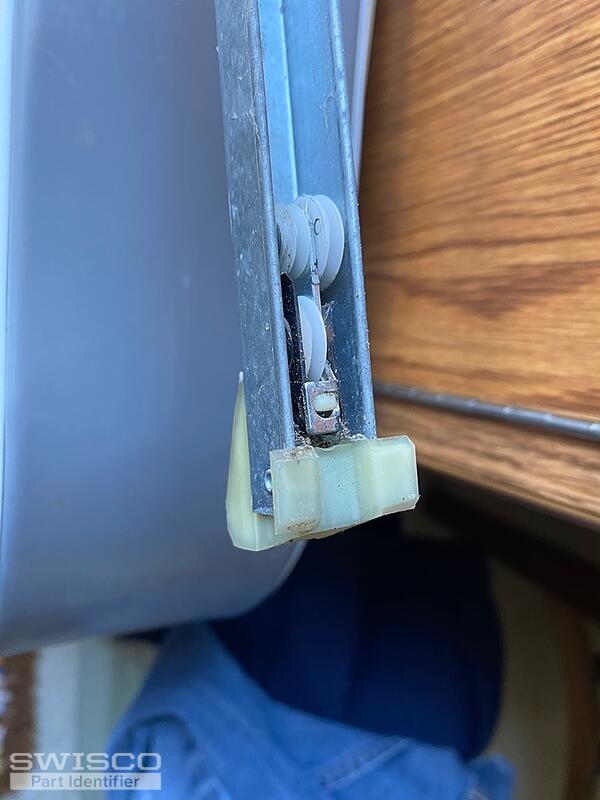

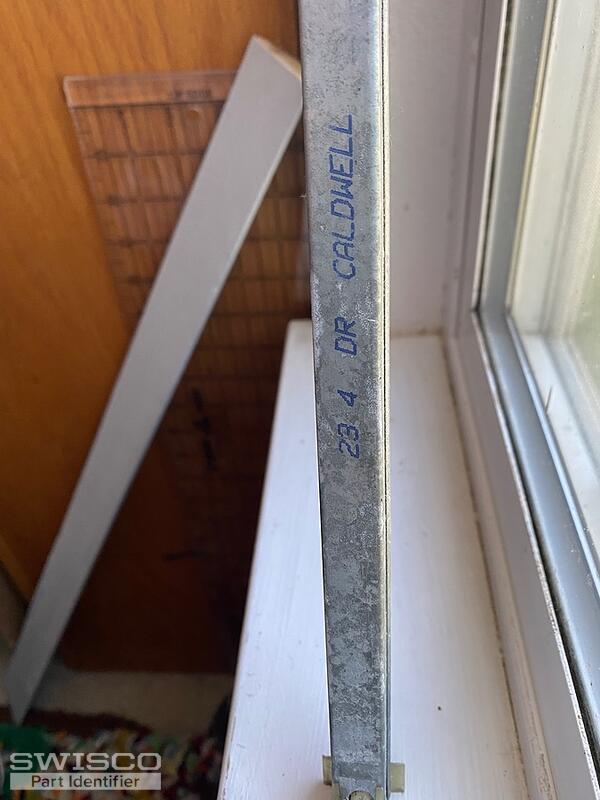

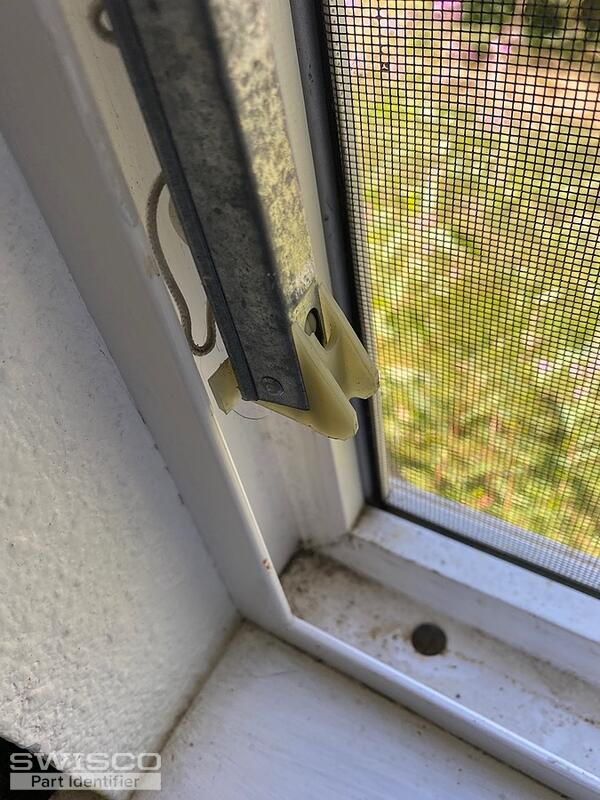

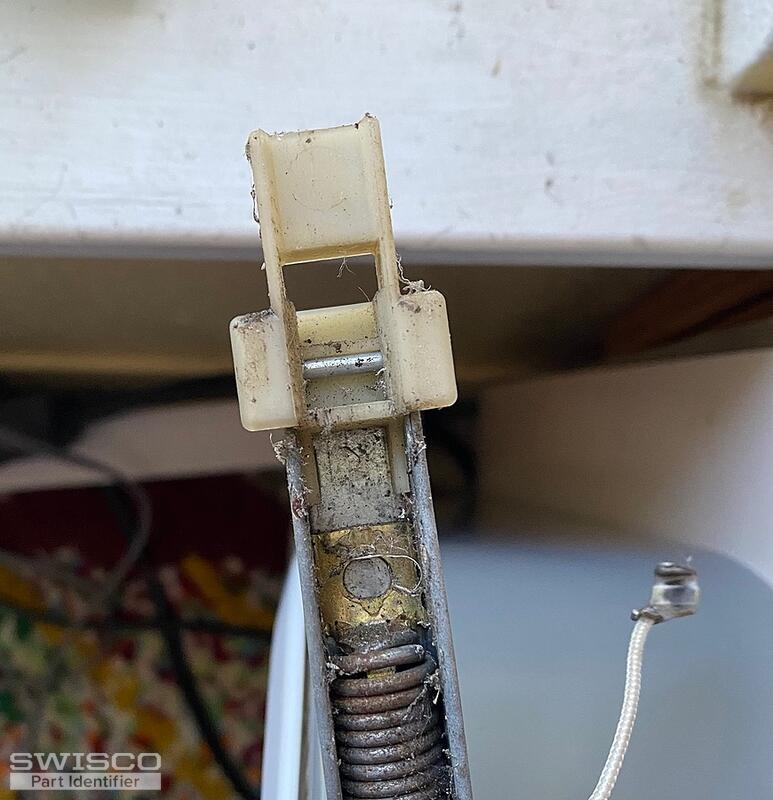

Adding photos of top end and flanged bottom end, plus better more clear stamp on the right side.

I need to get this window repaired, right now sash is sitting in the frame with latch closed to hold it in!

Kate

Thumbnail of the uploaded file named IMG_0267.jpeg
Thumbnail of the uploaded file named IMG_0264.jpeg
Thumbnail of the uploaded file named IMG_0262.jpeg
Thumbnail of the uploaded file named IMG_0263.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 17, 2023

Hey there, Kate.

Thanks for reaching out to us. The Series 380 or Series 385 looks like what you want based on what I see in these photos. Measure as shown below to determine which Series is best for your repair. I also recommend the 2340 strength option based on your balance's stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

23" Series 350 Channel Balance
23" Series 350 Channel Balance
S350-23
$9.91
24" Series 380 Channel Balance
24" Series 380 Channel Balance
S380-24
$10.55
24" Series 385 Channel Balance
24" Series 385 Channel Balance
S385-24
$10.55
