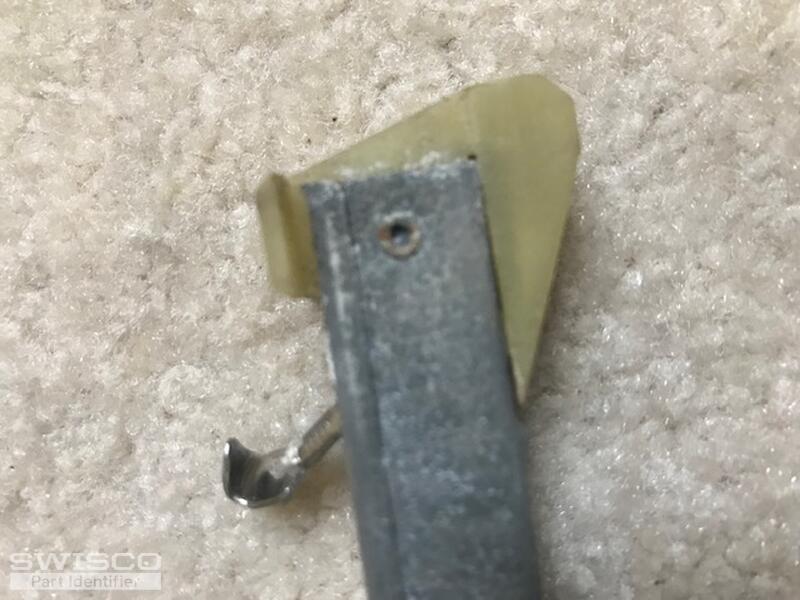

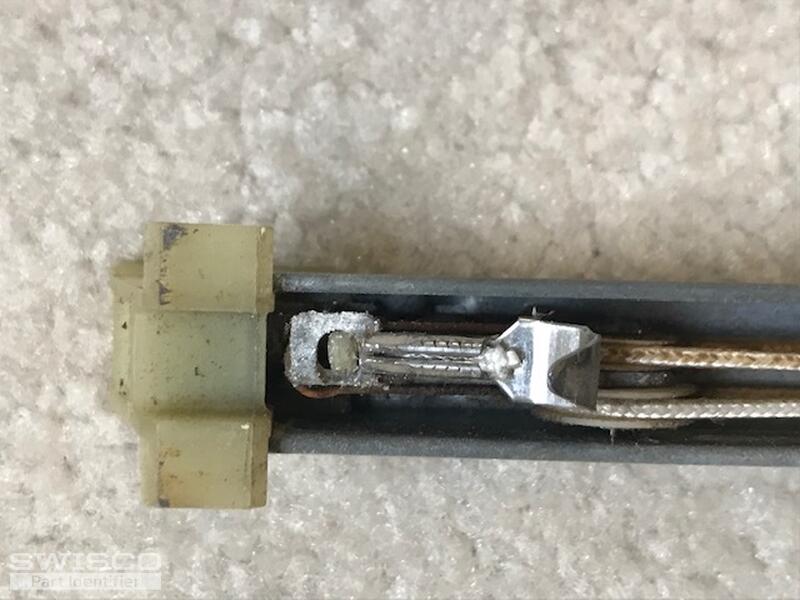

Marking on hardware = "32 3 JP Caldwell"
Metal Length 33"
Window weight = @21 pounds
bottom plastic = depth 1-3/32"
Top plastic has a sight concave facing the exterior window frame.
Gill - Window Counter Balance Identification
Home Owner from Leesburg, VA
Apr 20, 2021 1:29 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Apr 26, 2021 12:46 pm
If the depth of the bottom nylon shoe is indeed 1-3/32" (thanks for measuring!), then you need an S385-33 with a stamp option of 3230. Let me know if you have any other questions.
