Hello... A friend of mine brought to my attention that the Painter removed the Metal Mirror Sliding Glass Door and now it doesn't work....
I've uploaded ALL The pictures taken from the Broken Part... It appears that the Bottom has a spring and it seems to have been broken as it has no Spring Action... This is all i found and i'm not sure if it has another connection that goes under the spring...
This Block goes to the Bottom Right Corner of the Door.. I haven't tried to Tap out the Screw.. The Hole appears to be 7/16 all the way through... Please Let me know which part is needed to fix this.... Thanks in advance, Gary
Glass Sliding Door
Friend from Orlando, Florida
May 5, 2025 1:22 am
5 user uploaded images
2 Replies
Bob from SWISCO
May 8, 2025 10:50 pm
Hey there, Gary. This looks like a 23-047 Corner Block. This works with the 21-092 Screw Driver Pivot, 23-181 Pivot Block, and 21-098 Hinge. Compare these parts with your old hardware and let me know if you have further questions.

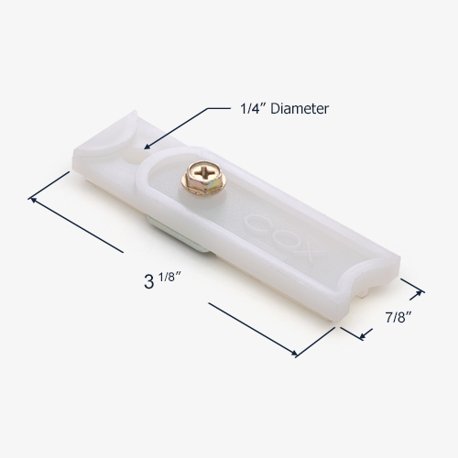

Dimensions for 23-407
Dimensions for 21-092
Dimensions for 22-181
Dimensions for 21-098
Dimensions for 21-098
