Glass Sliding Door Mortise Size

Question

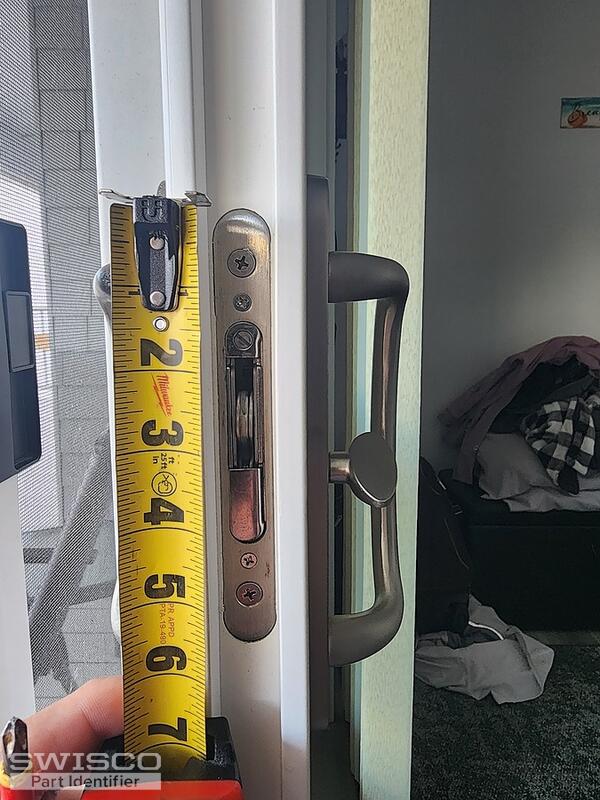

I have a Masterpiece model#G6068L00201 sliding patio door. I would like to replace the door handle. I'm not sure of the mortise size.

Bob · Accepted Answer

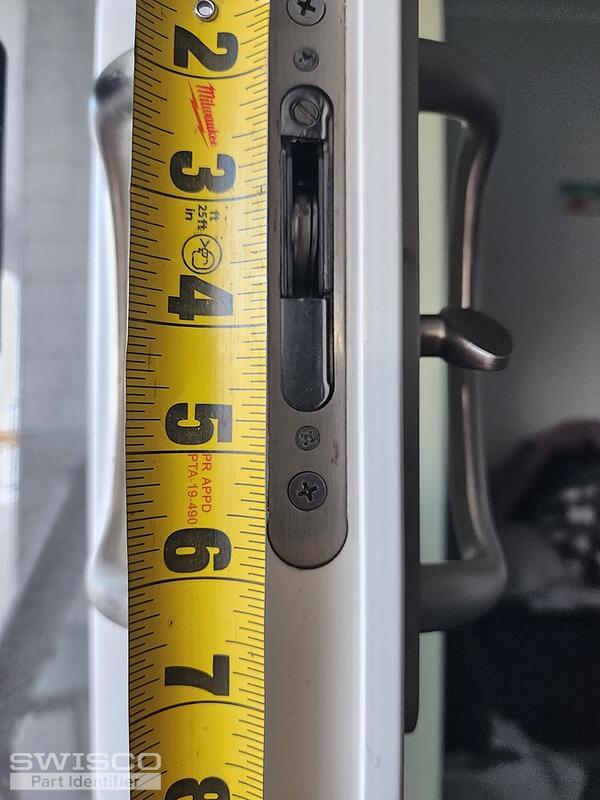

Thanks for posting. The mortise lock looks a bit like our 82-226, but please compare the dimensions listed and let me know if anything differs.

Alternate image for 82-226

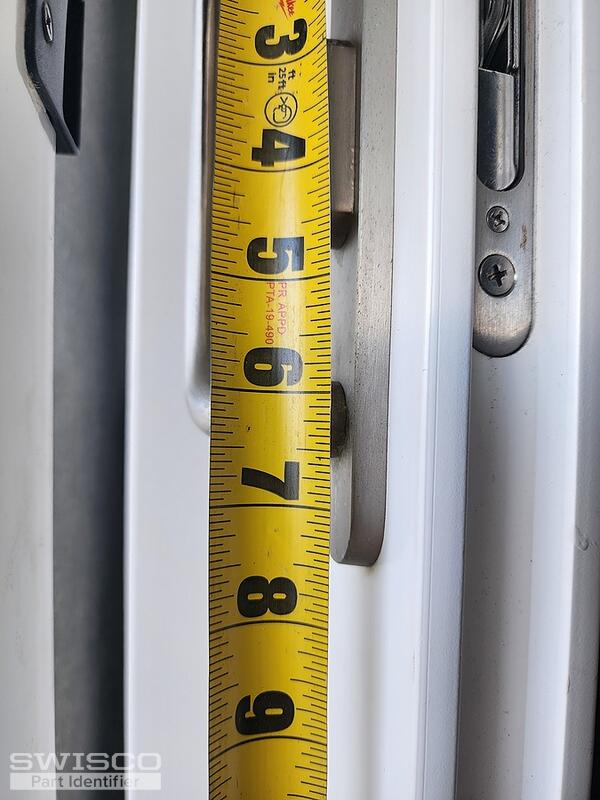

For the handle set, is the thumb turn on the inside pull closer to the 'bottom mounting screw' than the top one? Or is it perfectly centered between the mounting screws? If it's closer to the bottom, our 82-086 or 82-087 should work. Let me know if you have questions.
