Glass Sliding Door Rollers

A home owner from Wildwood Crest says:
June 28, 2021
I'm having trouble finding replacement Parts (glass door rollers) for my sliding glass door. My dimensions of the current part I have are 2-3/4 X 1-1/16, with single metal wheel.
Thumbnail of the uploaded file named 83D523D5-6CA4-44A5-B83E-9A9334AFAAB4.jpeg
Thumbnail of the uploaded file named D7931C52-E79C-4CCF-8C3E-1E9619D25914.jpeg
Thumbnail of the uploaded file named 6F74984F-E196-4309-876C-84161233905A.jpeg

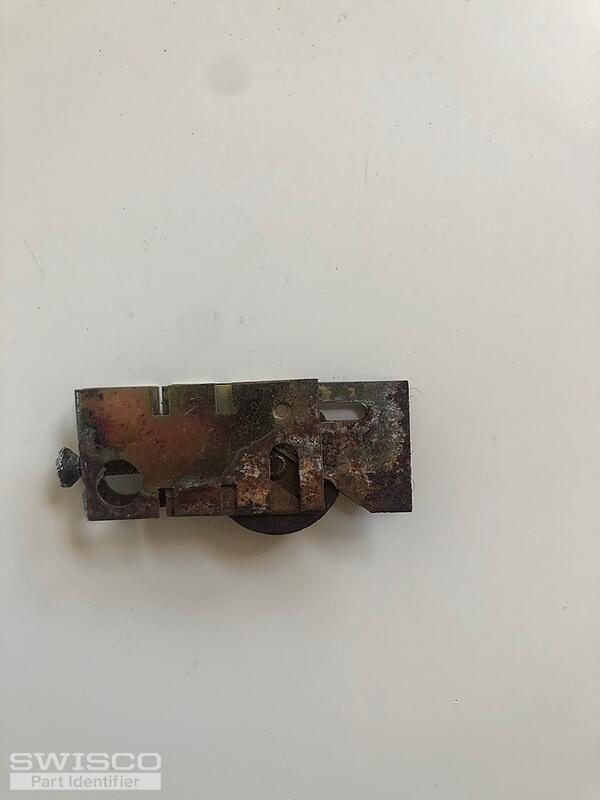

Thumbnail of the uploaded file named 94F256E6-D133-48FB-849F-D8E4B72BFF3B.jpeg

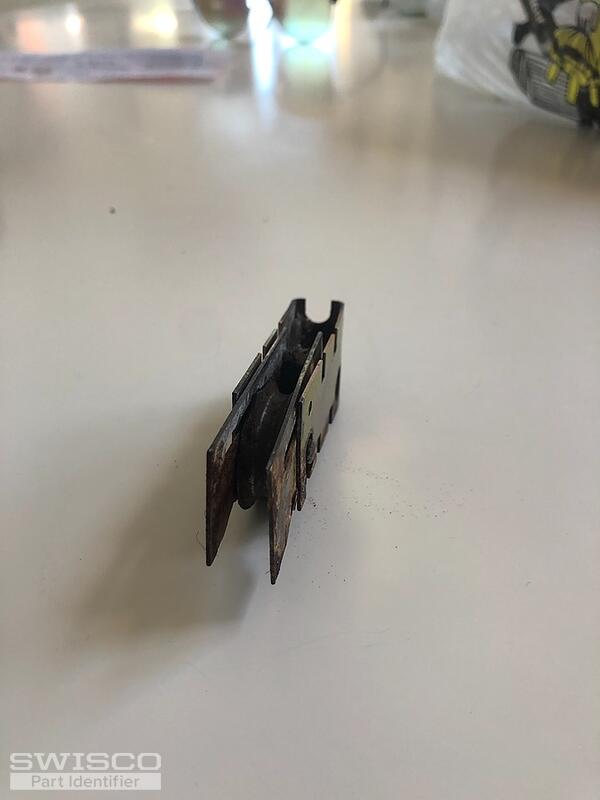

Thumbnail of the uploaded file named 6012BA03-3ADE-424D-BA51-D731B95F1015.jpeg
Profile picture of Bob
Bob from SWISCO responded:
July 1, 2021

The design reminds me a little of our 81-090. Compare the height and thickness of the assembly as well as the wheel diameter, and let me know if you think this could work for you.
A home owner from Wildwood Crest says:
July 1, 2021
So the 81-090 seems to almost match up. They only problem is the length. 81-090 Measures out to be 1 3/4". Were as my old part is 1 7/8". Not sure if there's a similar part with correct length?
Profile picture of Bob
Bob from SWISCO responded:
July 6, 2021

The length of a sliding glass door roller is not as important as its width and height, as well as the wheel diameter (though the diameter can be adjusted to some extent). If those dimensions match, then I still think the 81-090 is your best bet.
Sliding Door Roller, Concave
Sliding Door Roller, Concave
81-090
$9.70
